IP65 YT‑221 Drop‑Shape Float Level Switch, 4A 220V with Corrosion‑Resistant Wire 2M/3M/5M/10M
Regular price
$23.85 USD
Regular price
Sale price
$23.85 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Automatic Float Switch, YT‑221 Water Level Sensor Controller
Silicone Corrosion‑Resistant Cable for Sewage & High‑Temperature Water Tank

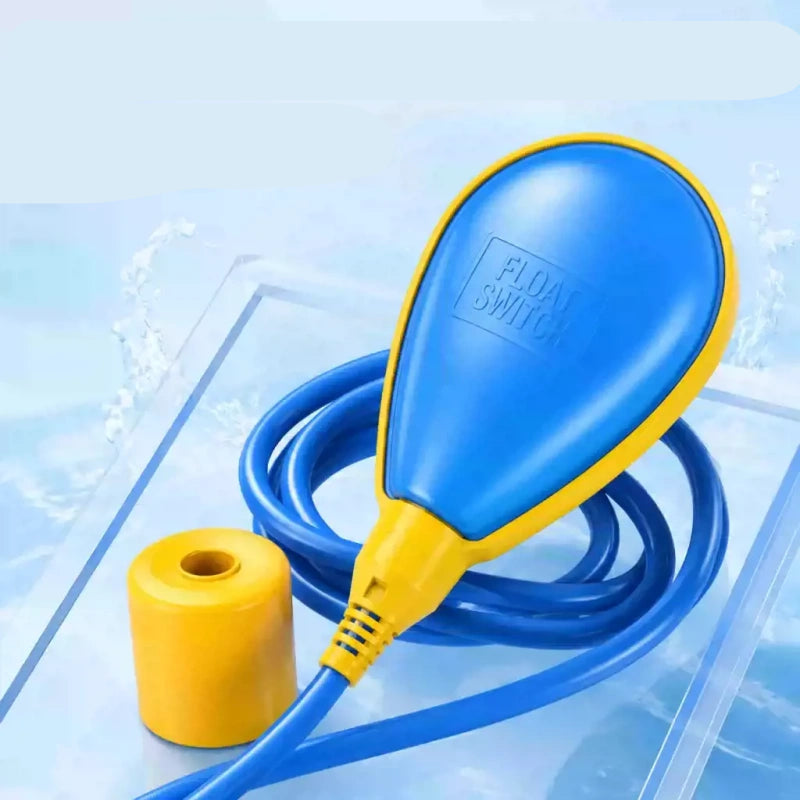

YT‑221 Water‑Drop Shape Float Switch Liquid Level Controller
This drop‑style float switch automatically controls water pump start‑stop by rising and falling with liquid level. Adopted silver alloy contact, features fast response and stable conductivity, effectively realize automatic water filling and draining for water tanks, water towers and sewage pools.

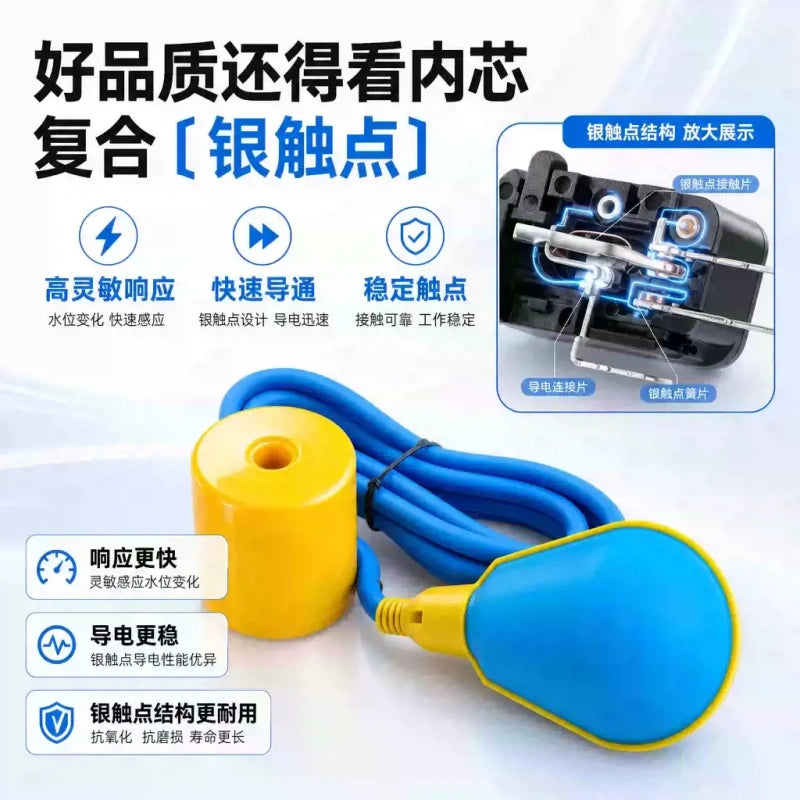

✅ Silver alloy contact: stable conducting, sensitive response, long service life
✅ IP65 waterproof protection grade, working temperature: 0‑65℃
✅ Rated: 4A AC220V, max power<400W, support AC220V / 380V

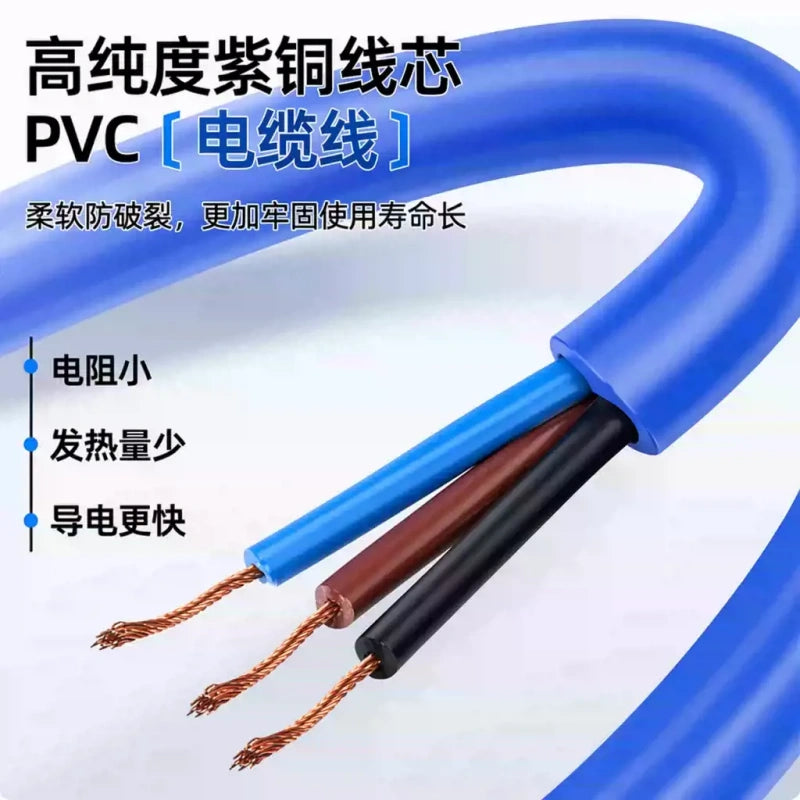

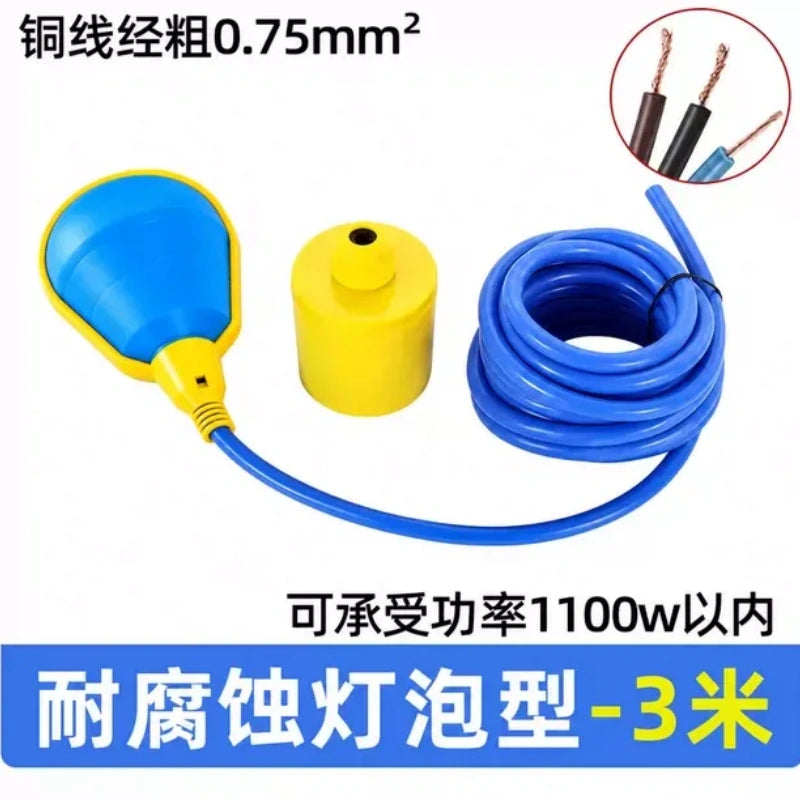

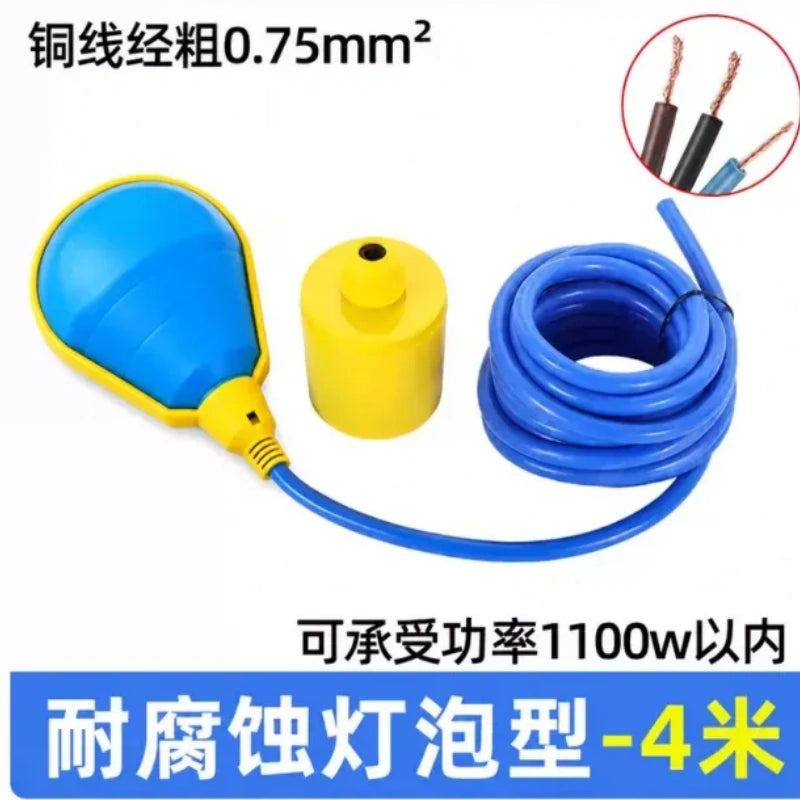

✅ Multiple corrosion‑resistant high‑temperature silicone cable options: 2m /3m /4m /5m /10m for sewage & high‑temperature environment

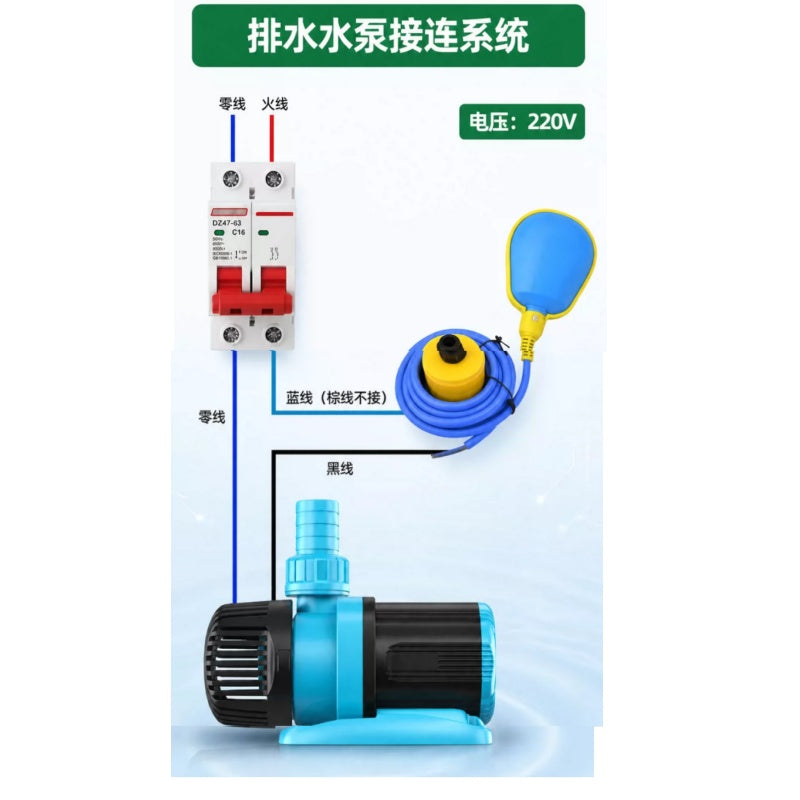

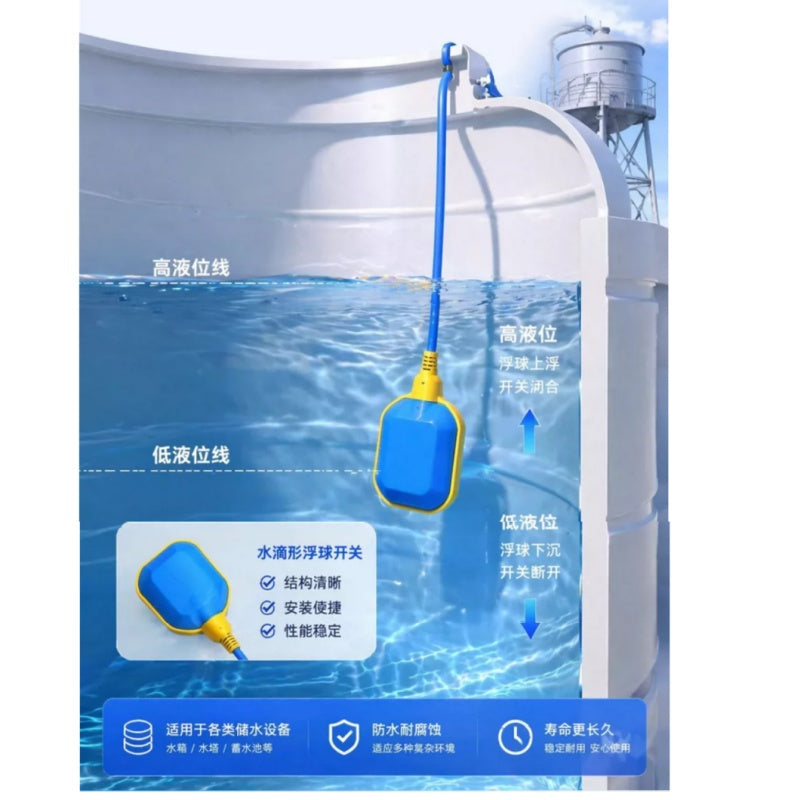

✅ Simple installation, no complex debugging, float rises to cut‑off, float drops to switch‑on
✅ Wide application: water tank, water tower, sump pump, sewage tank, cistern and liquid storage container

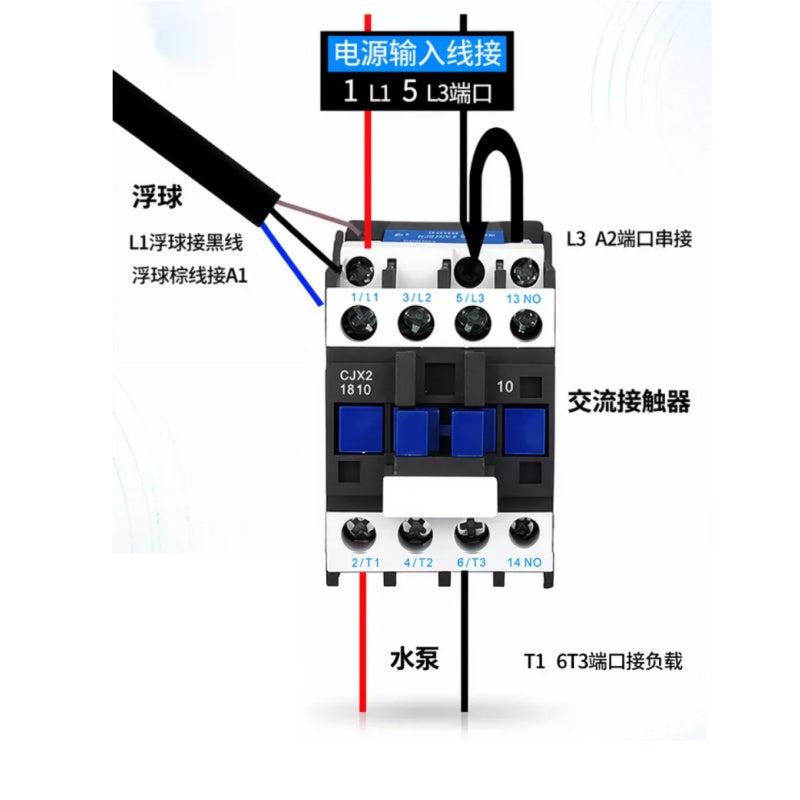

Note: For high‑power pumps, please use together with AC contactor.
Specification
| Attribute Name | Value |
|---|---|
| Product Name | Water‑Drop Float Switch YT‑221 |
| Model | YT‑221 |
| Contact Material | Silver Alloy |
| Rated Current | 4A@AC220V |
| Rated Voltage | AC220V / AC380V |
| Max Power | <400W |
| Protection Class | IP65 |
| Working Temperature | 0‑65℃ |
| Working Pressure | 0.1MPa |

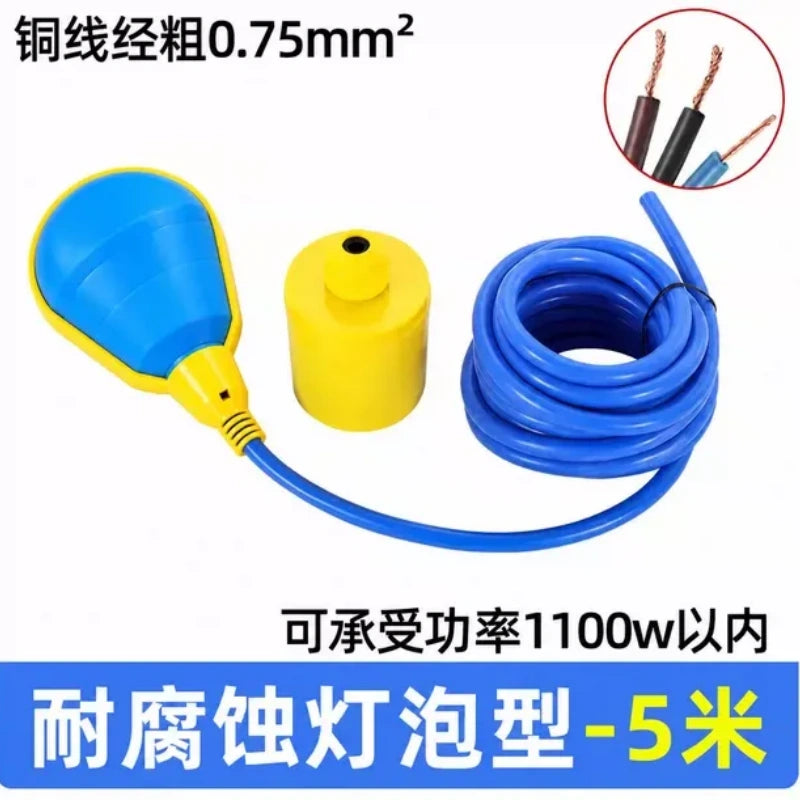

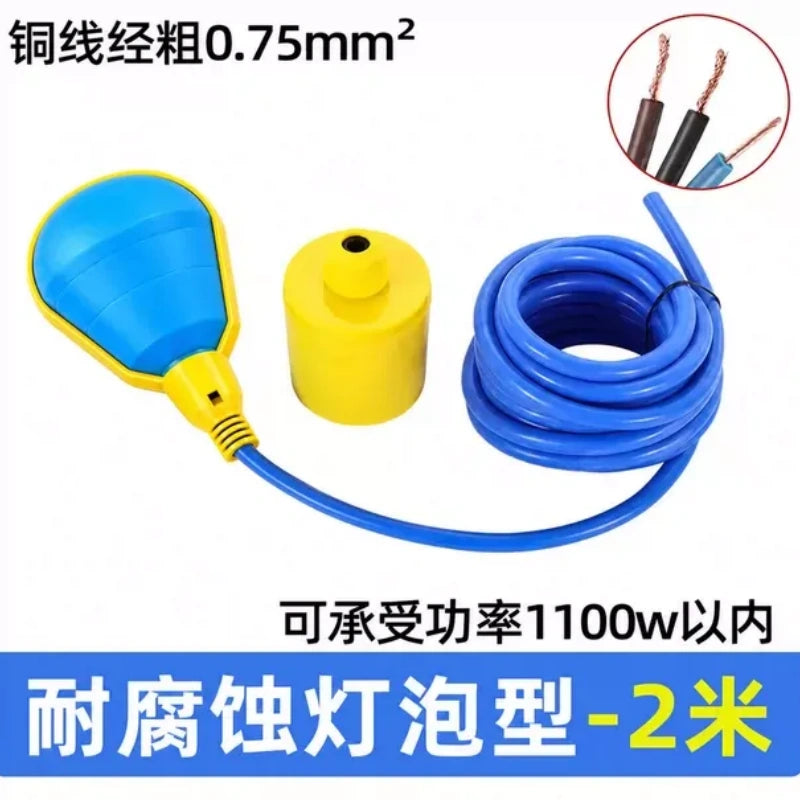

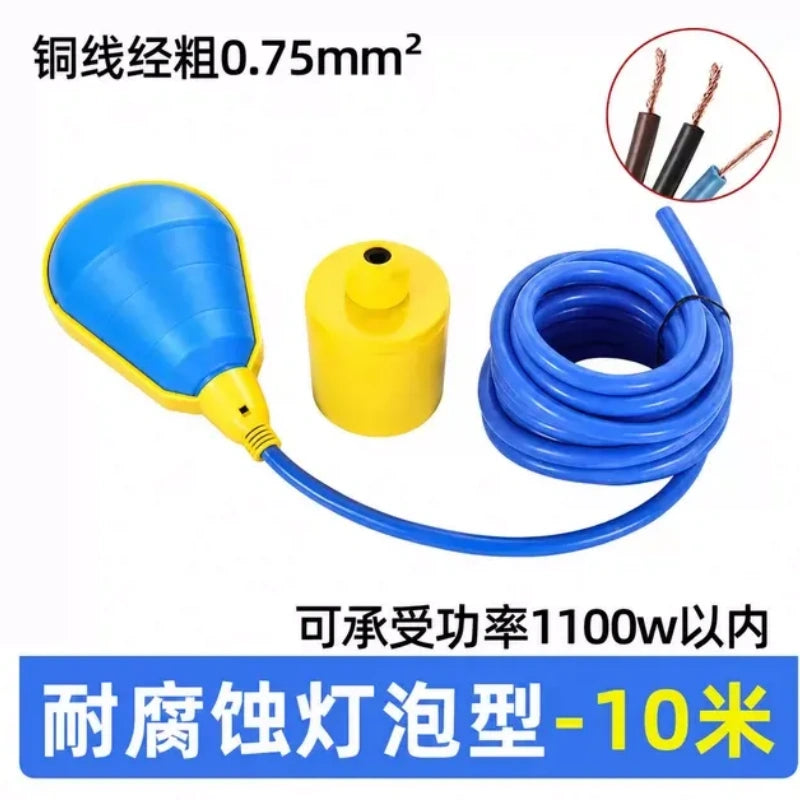

| Cable Option | 2m / 3m /4m /5m /10m, Corrosion‑Resistant Silicone Cable(Sewage High‑Temperature Type) |
| Control Range | >0.2m |
| Feature | Automatic liquid level control, fast response, stable contact |
| Application | Water Tank, Water Tower, Sump Pump, Sewage Tank, Cistern |
| Google Product Category | 471721 (Electrical Switches) |
| Weight | 0.25kg |
