IP68 Submersible Hydrostatic Level Transmitter 4-20mA

Submersible Hydrostatic Level Transmitter 4-20mA, 0-10m Range IP68 Water Level Sensor for Fire Tank, Pool, River

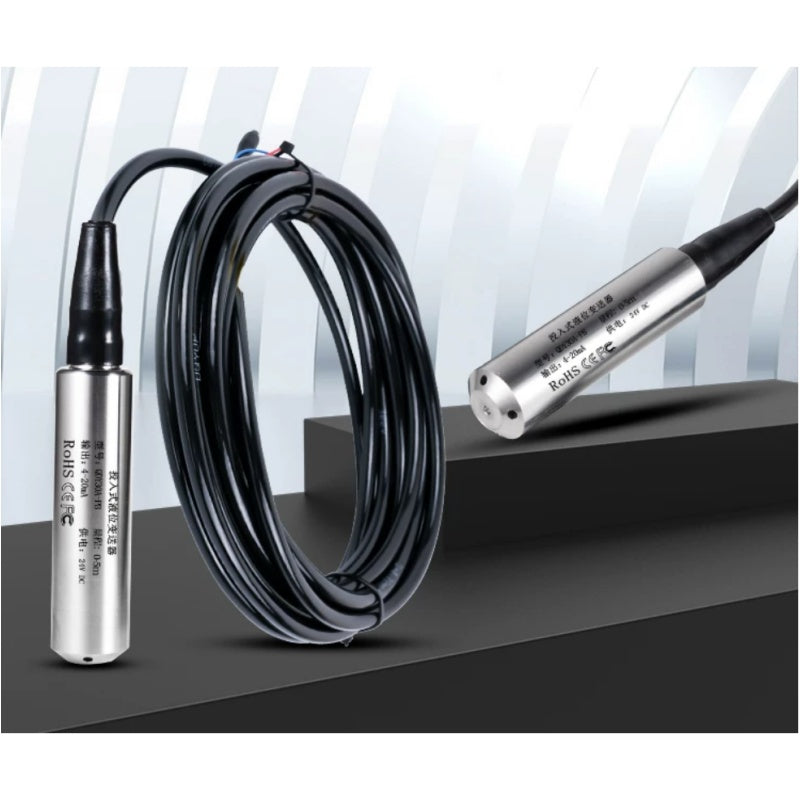

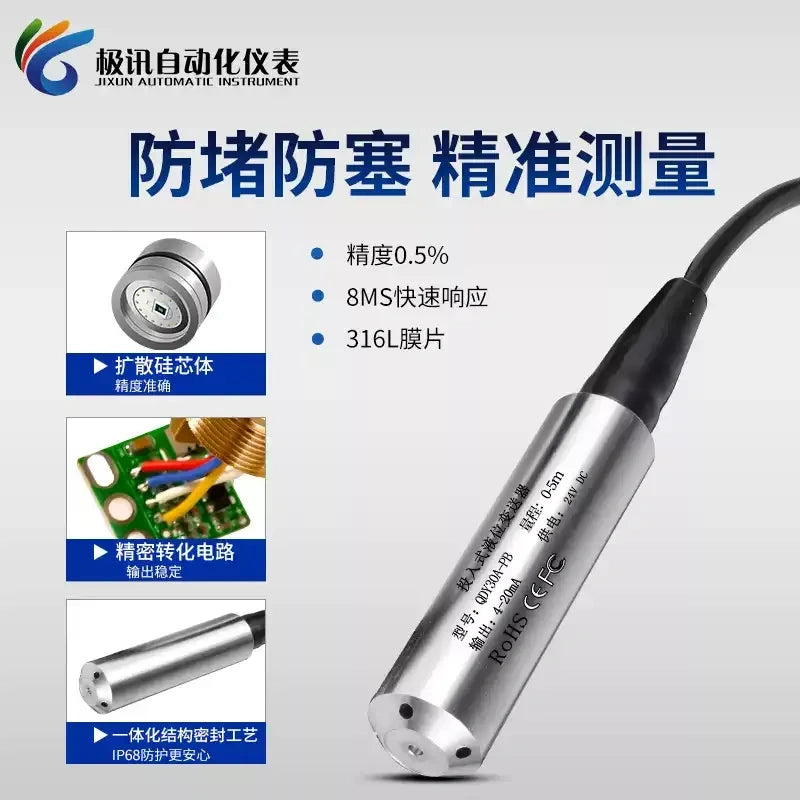

This submersible hydrostatic level transmitter (model QDY30A-PB) is designed for continuous liquid level measurement in tanks, pools, rivers, and industrial environments. It uses a high-precision diffused silicon sensor with 0.5% accuracy and an IP68 waterproof housing for direct immersion. The standard 4-20mA output signal is compatible with most PLC, DCS, and display meters, making it ideal for fire protection systems, water treatment, and groundwater monitoring.

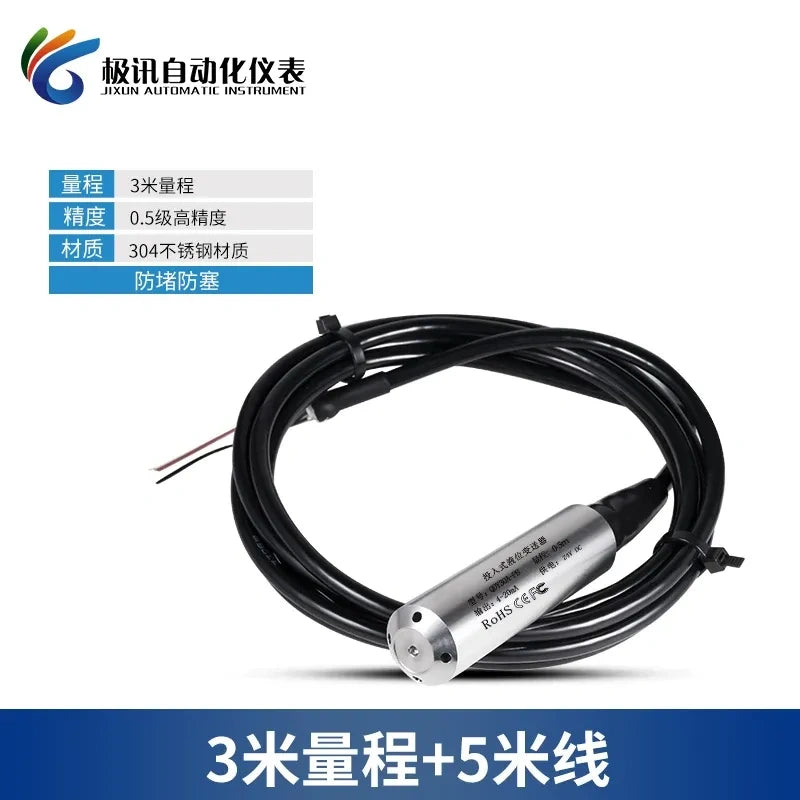

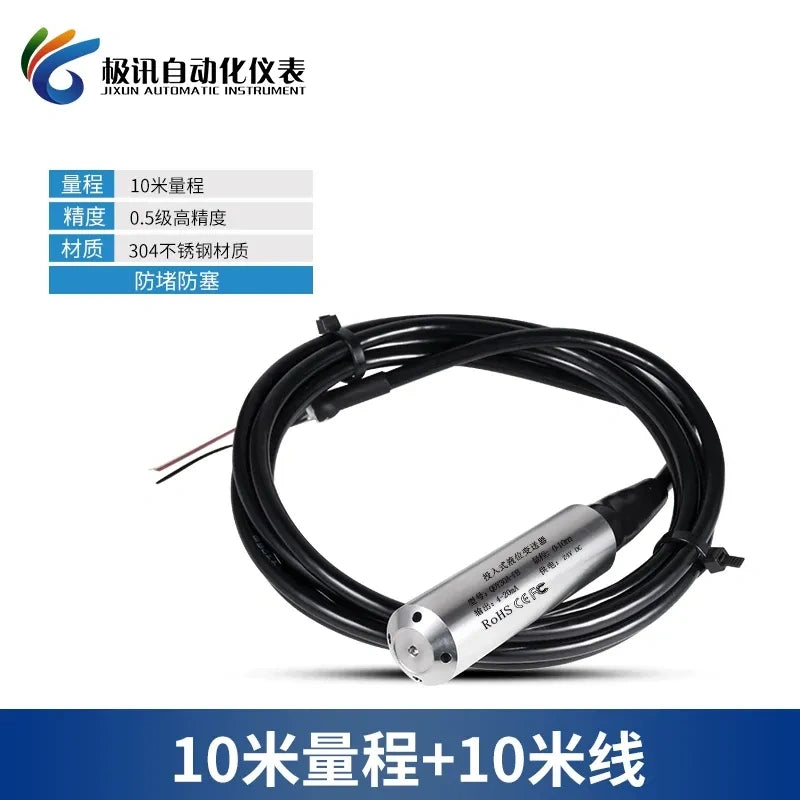

• With cable: Submersible Water Level Sensor with 5-10m Cable, 4-20mA Output 0-10m Range for Industrial Liquid Level Monitoring

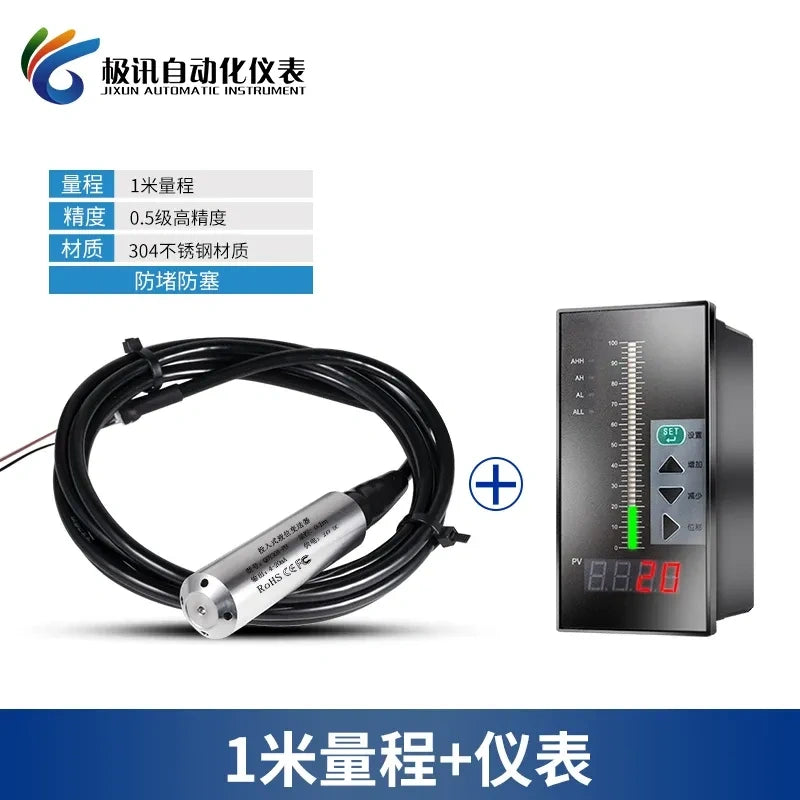

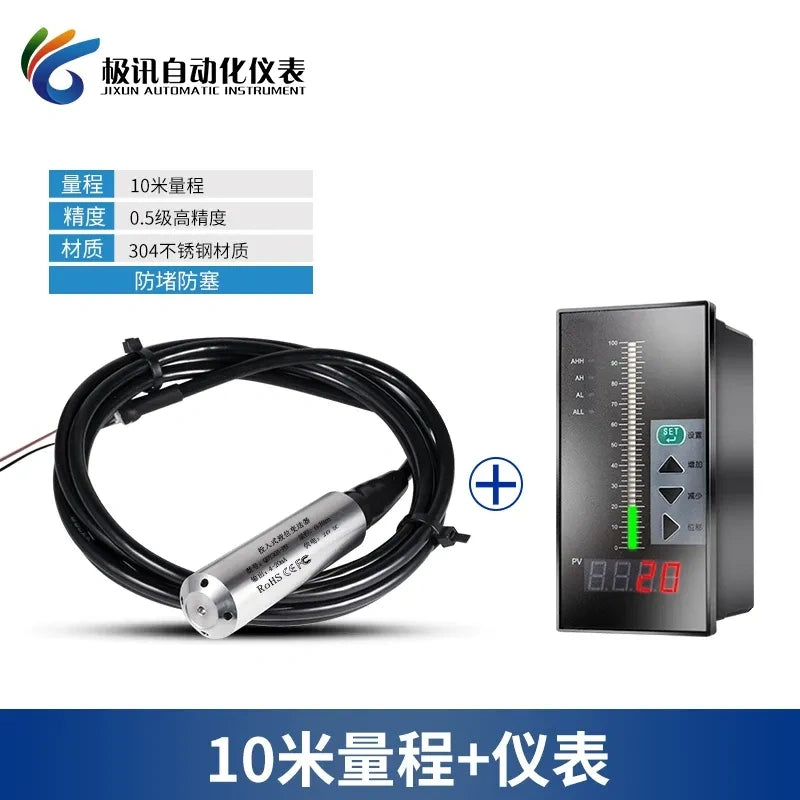

• With display meter: Level Transmitter with Display Controller, 4-20mA 0-10m Range Submersible Sensor for Water Tank Monitoring

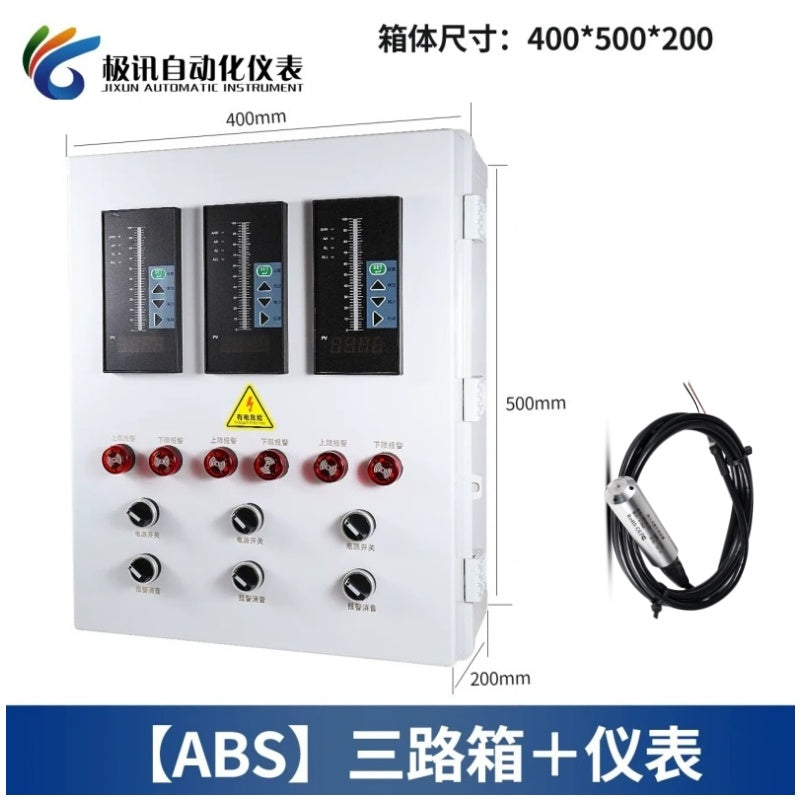

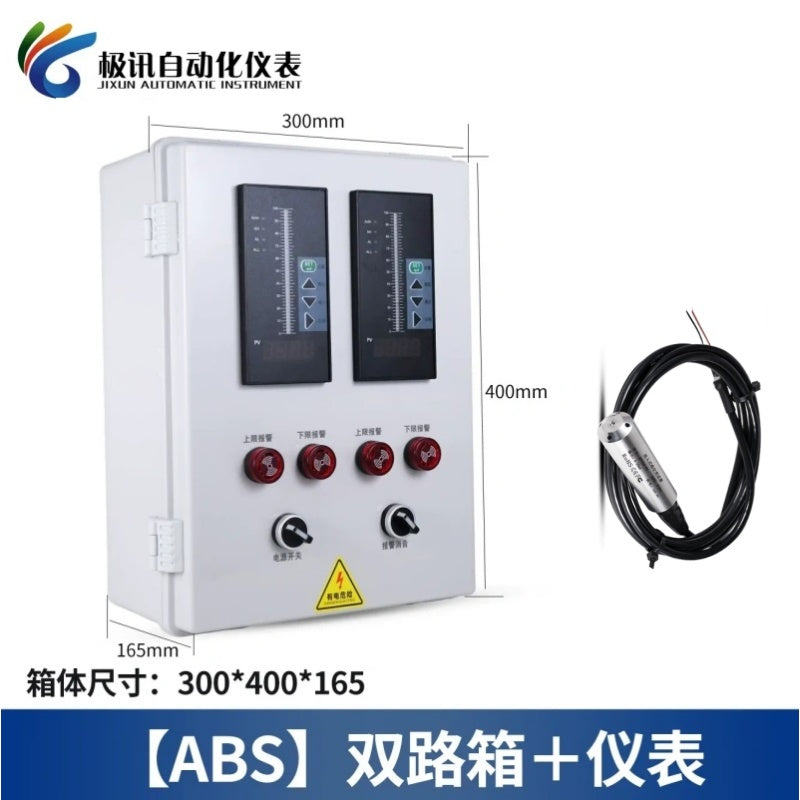

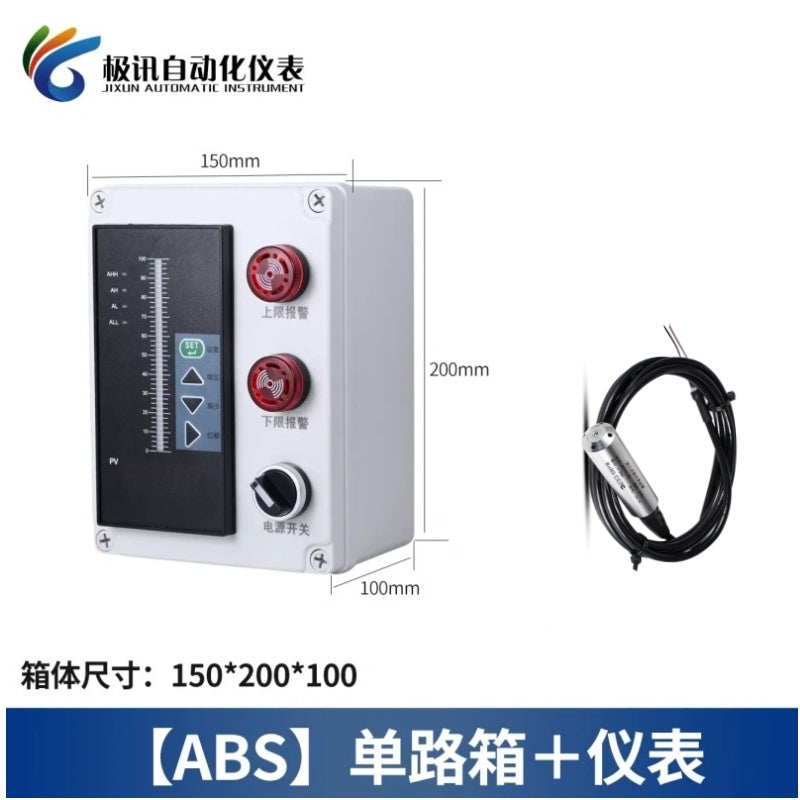

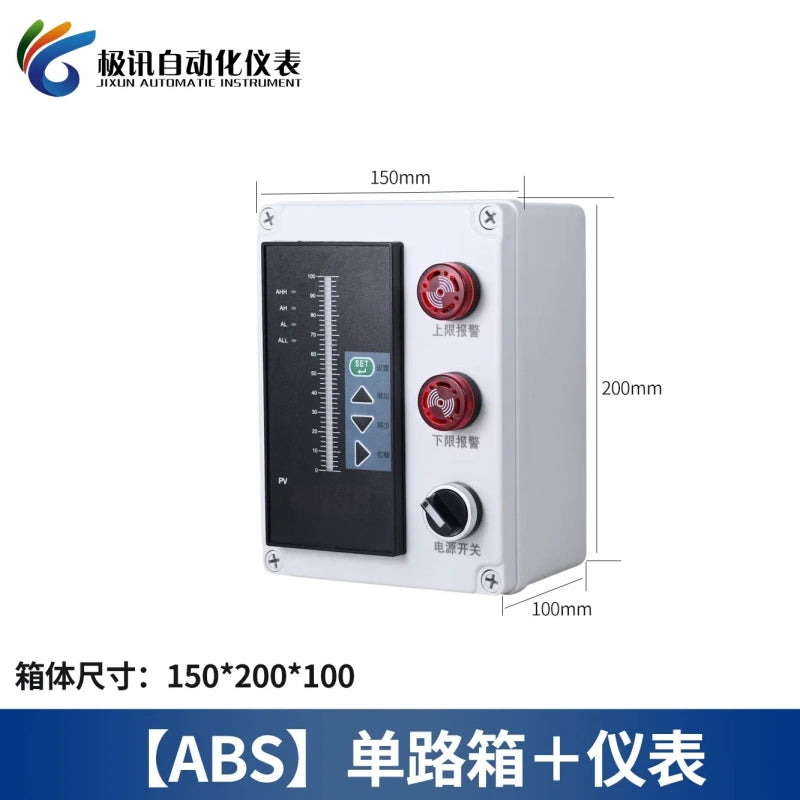

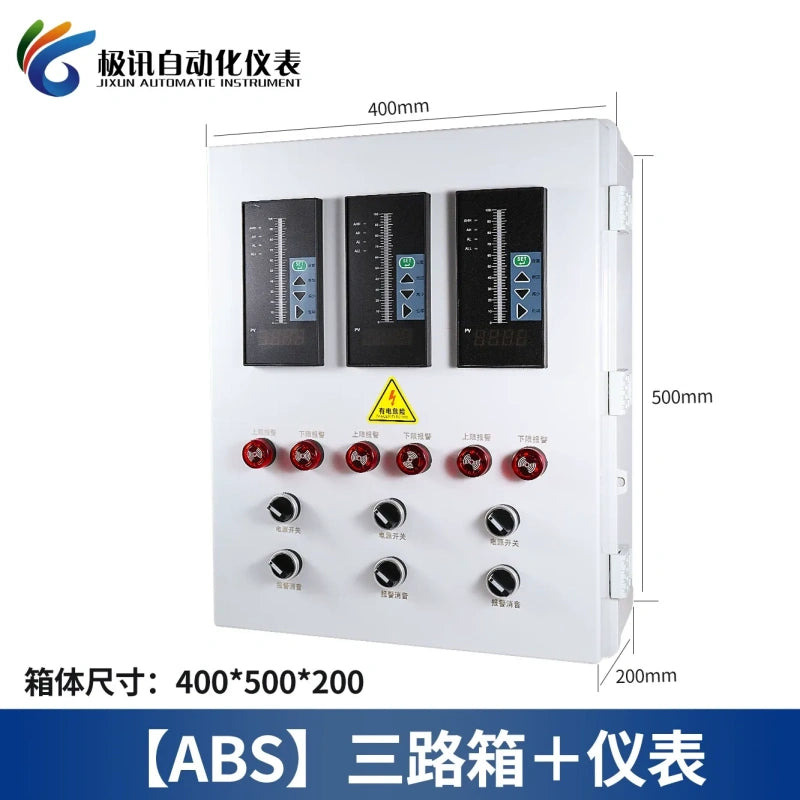

• With ABS box: Multi-channel ABS Control Box with Submersible Level Transmitter, 4-20mA for Fire Water Tank System

•
Specification

• Key	Value
  Product Name	Submersible Hydrostatic Level Transmitter (Level Sensor/Probe)
  Model	QDY30A-PB
  Measuring Medium	Liquids compatible with wetted materials
  Measuring Range	0-1m / 0-2m / 0-3m / 0-4m / 0-5m / 0-6m / 0-7m / 0-8m / 0-9m / 0-10m
  Accuracy	0.5% F.S (customizable)
  Overload Capacity	200% F.S
  Response Time	≤ 8ms (to 90% F.S)

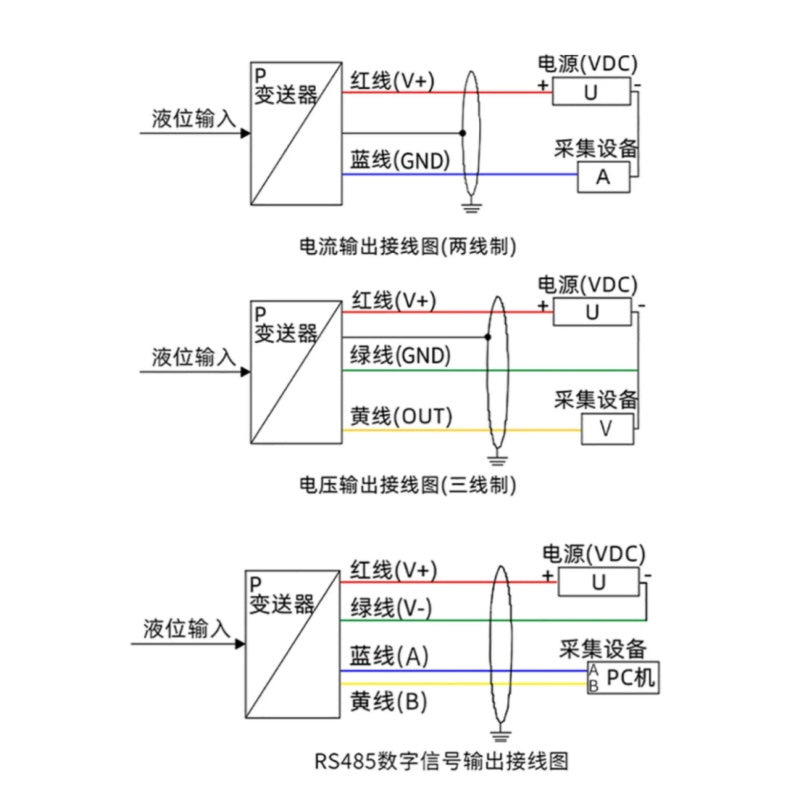

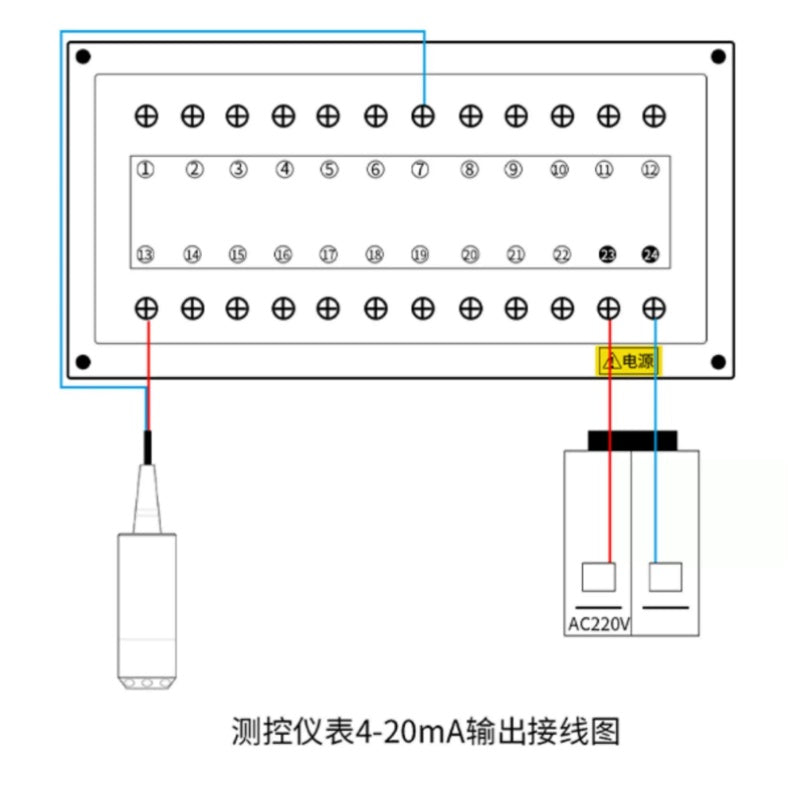

  Output Signal	4-20mA (2-wire) / 0-5V / 1-5V / 0-10V / RS485
  Power Supply	DC 12-32V (default 24V DC)
  Operating Temp (Media/Ambient)	-20°C ~ +50°C
  Storage Temperature	-40°C ~ +125°C
  Zero/Span Temp Drift	±0.2% F.S / °C
  Sealing Rating	IP68
  Construction Material	316L Stainless Steel diaphragm, 304 Stainless Steel housing, NBR seals
  Process Connection	Submersible type (direct immersion)
  Cable Options	5m / 6m / 7m / 8m / 9m / 10m vented cable

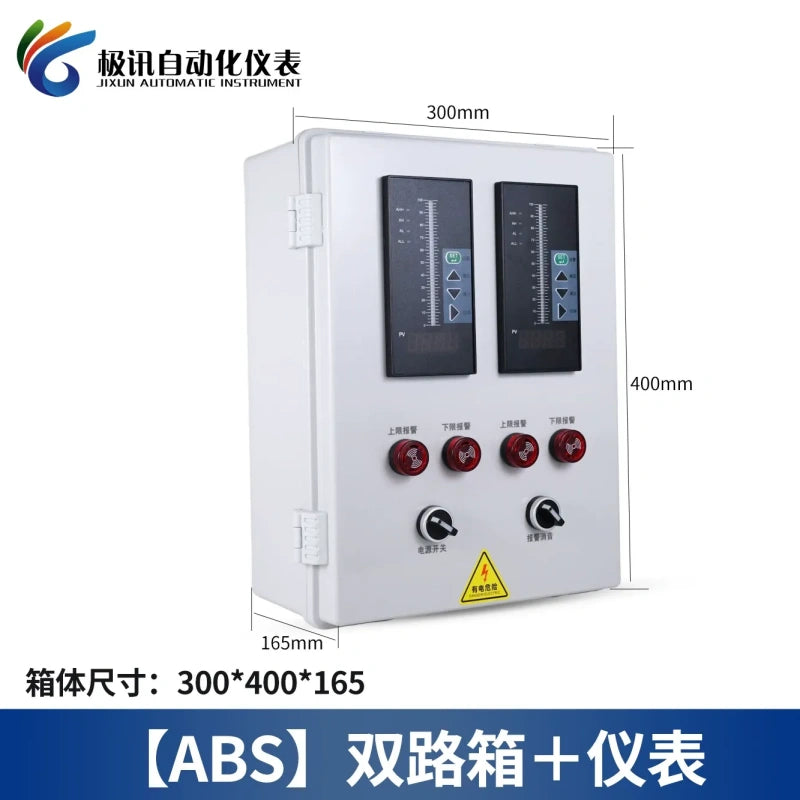

  Accessories	Optional display meter, ABS control box (1/2/3-channel)

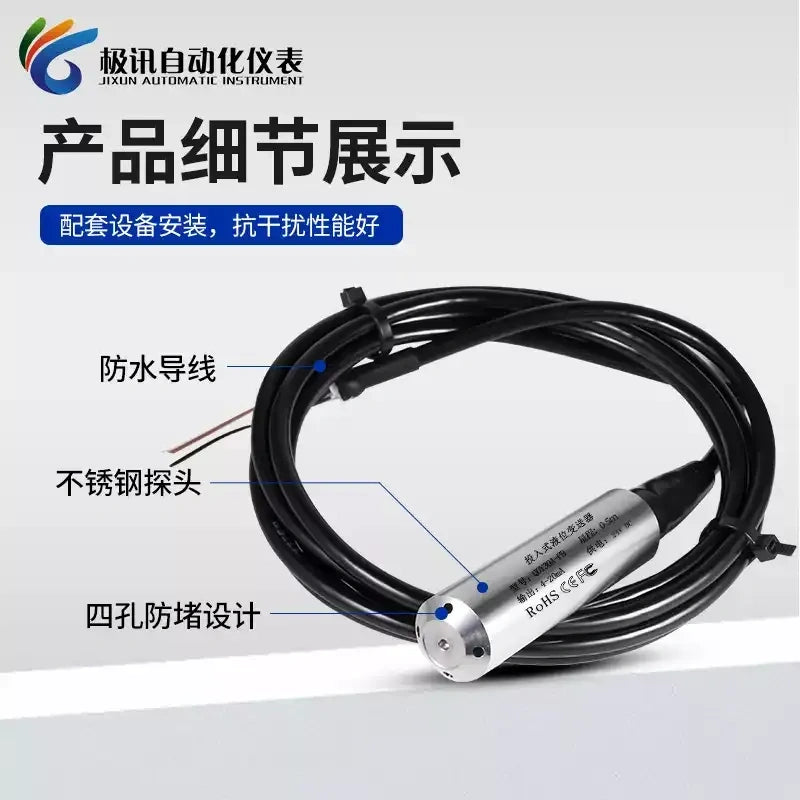

  Features	Diffused silicon sensor, high precision, anti-interference, IP68 waterproof

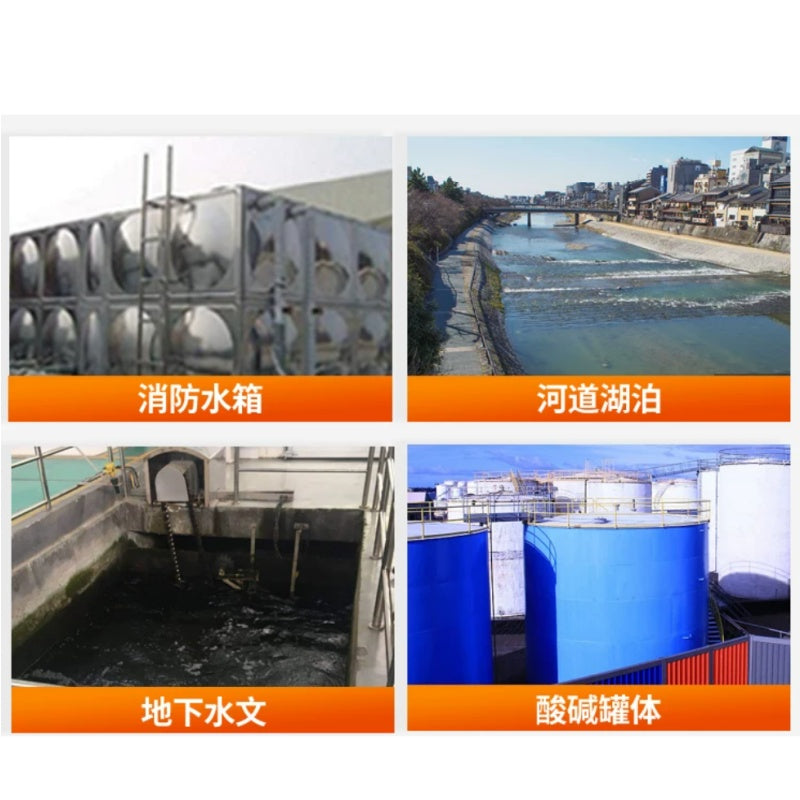

  Applications	Fire tanks, pools, rivers, groundwater monitoring, chemical tanks, industrial water systems
