LAY37-11ZS Emergency Stop Push Button Switch
Regular price
$9.20 USD
Regular price
$13.00 USD
Sale price
$9.20 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
📌 Core Product Overview

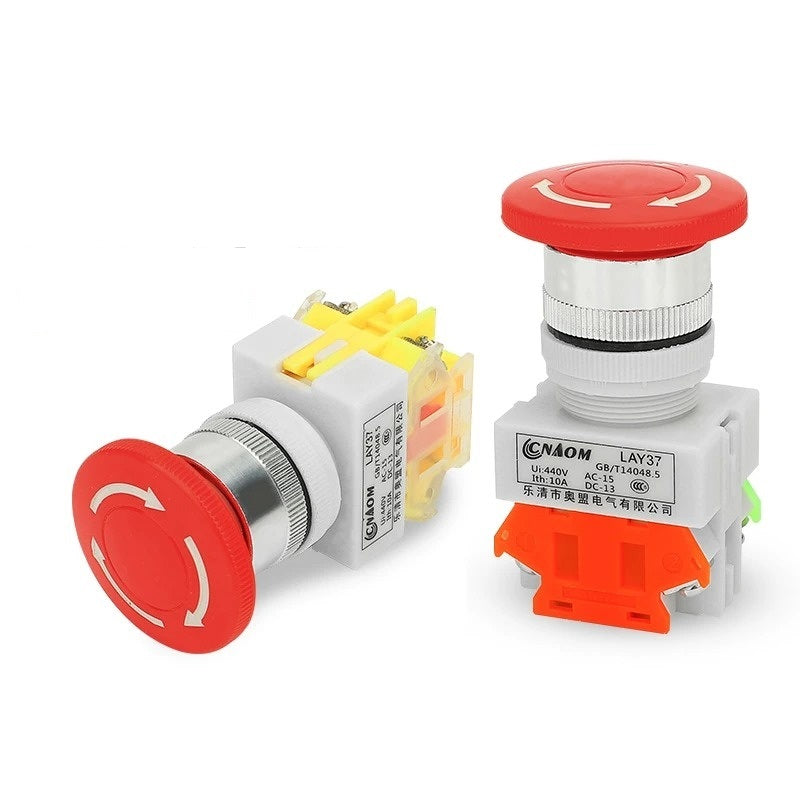

- Product Name: LAY37-11ZS Mushroom Head Emergency Stop Push Button
- Compatible Models: Y090, LAY7 series (direct replacement)
- Mounting Hole Sizes: 22mm / 25mm / 30mm (22mm is the most common)
-
Contact Configurations:

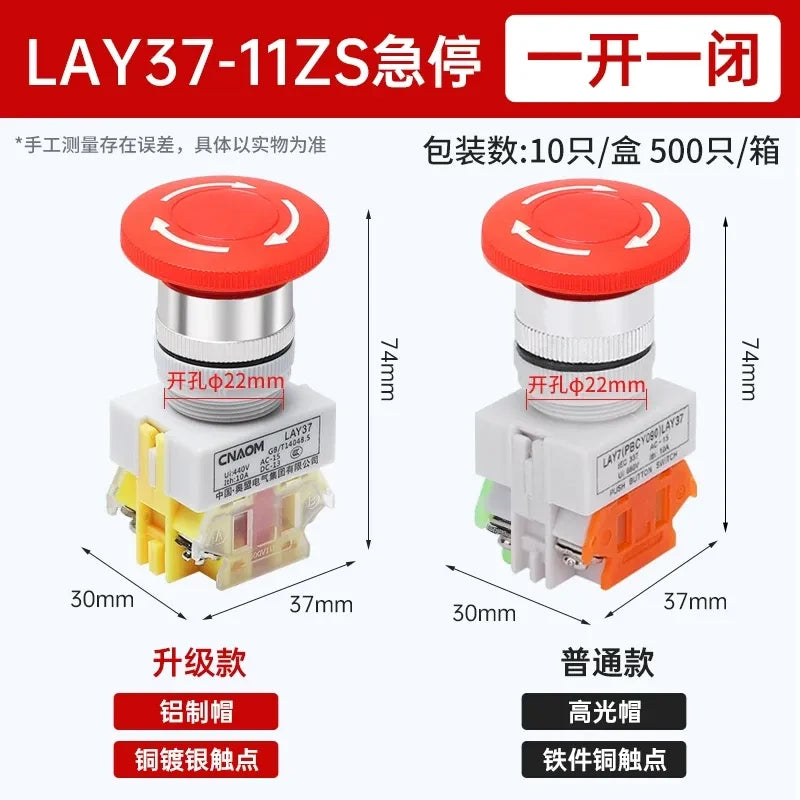

- LAY37-11ZS: 1NO + 1NC (1 Normally Open + 1 Normally Closed)

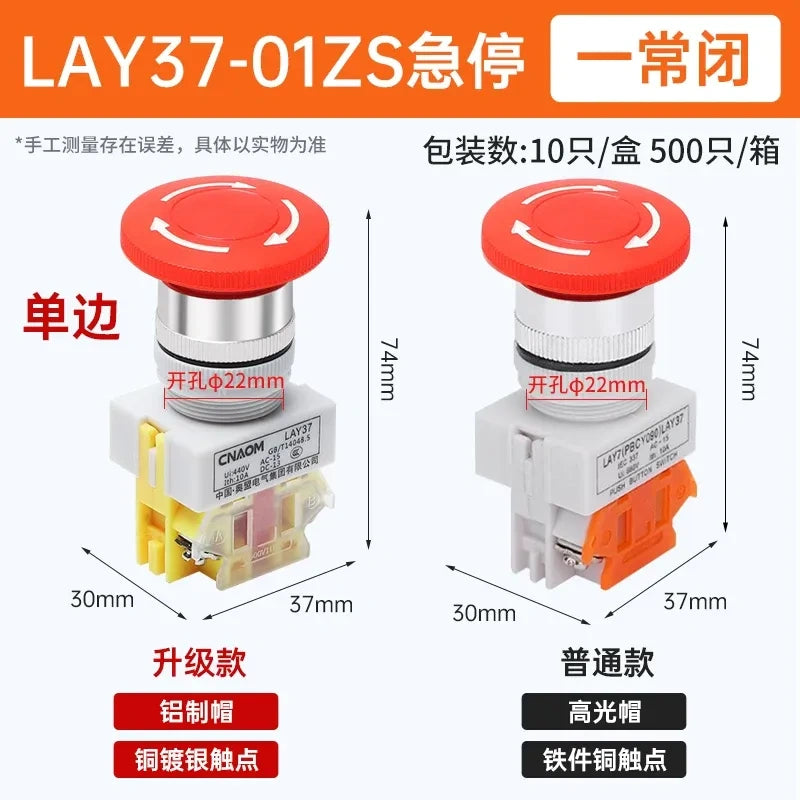

- LAY37-01ZS: 1NC (1 Normally Closed)

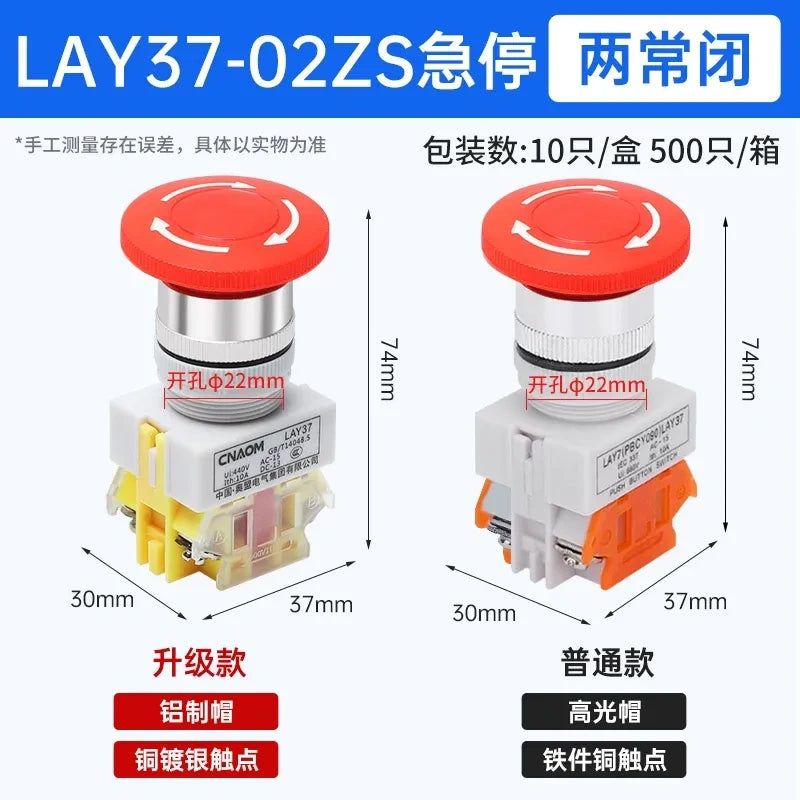

- LAY37-02ZS: 2NC (2 Normally Closed)
- Operation Type: Self-locking (twist to reset)
- Rated Current/Voltage: 10A max / 660V AC
- Key Features: Aluminum metal cap, silver alloy contacts, insulated base, IP40/IP65 front protection
Specification
| Attribute | Value |
|---|---|
brand |
Electrical Center B2C |
product_series |
LAY37 (Y090 / LAY7 compatible) |
product_type |
Industrial Control Switches > Emergency Stop Buttons |
mounting_diameter |
22mm (25mm / 30mm optional) |
rated_voltage_max |
660V AC |
rated_current |
10A |
contact_configuration |
1NO+1NC / 1NC / 2NC |
operation_mode |
Self-locking (twist-to-reset) |
head_type |
Mushroom emergency stop |
cap_material |
Aluminum alloy |
contact_material |
Silver alloy |
housing_material |
Flame-retardant engineering plastic |
protection_class |
IP40 / IP65 (front panel) |
mechanical_life |
≥ 1,000,000 operations |
reset_method |
Twist-to-release |
colors |
Red (standard emergency stop) / Yellow / Green |
