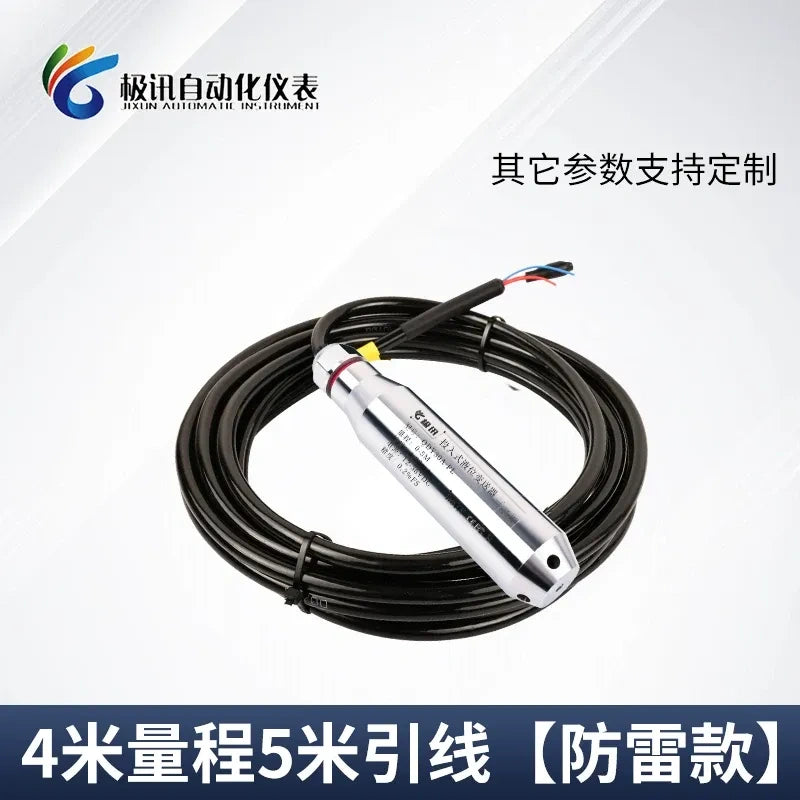

  • Lightning Protection Level Sensor measuring range 0-4M with wire length 5M,Submersible Level Transmitter ,4-20mA Level Sensor ,Hydrostatic Level Meter ,IP68 Water Level Probe ,Anti Surge Level Sensor
  • Lightning Protection Level Sensor measuring range 0-5M with wire length 5M,Submersible Level Transmitter ,4-20mA Level Sensor ,Hydrostatic Level Meter ,IP68 Water Level Probe ,Anti Surge Level Sensor
  • Lightning Protection Level Sensor measuring range 0-6M with wire length 6M,Submersible Level Transmitter ,4-20mA Level Sensor ,Hydrostatic Level Meter ,IP68 Water Level Probe ,Anti Surge Level Sensor
  • Lightning Protection Level Sensor measuring range 0-7M with wire length 7M,Submersible Level Transmitter ,4-20mA Level Sensor ,Hydrostatic Level Meter ,IP68 Water Level Probe ,Anti Surge Level Sensor
  • Lightning Protection Level Sensor measuring range 0-8M with wire length 8M,Submersible Level Transmitter ,4-20mA Level Sensor ,Hydrostatic Level Meter ,IP68 Water Level Probe ,Anti Surge Level Sensor
  • Lightning Protection Level Sensor measuring range 0-9M with wire length 9M,Submersible Level Transmitter ,4-20mA Level Sensor ,Hydrostatic Level Meter ,IP68 Water Level Probe ,Anti Surge Level Sensor

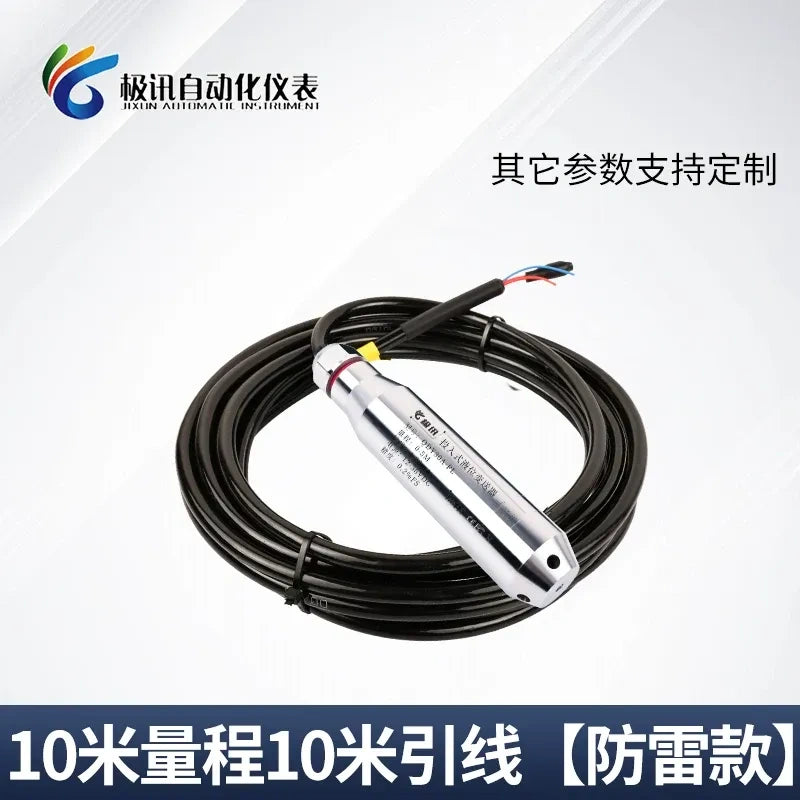

  • Lightning Protection Level Sensor measuring range 0-10M with wire length 10M,Submersible Level Transmitter ,4-20mA Level Sensor ,Hydrostatic Level Meter ,IP68 Water Level Probe ,Anti Surge Level Sensor

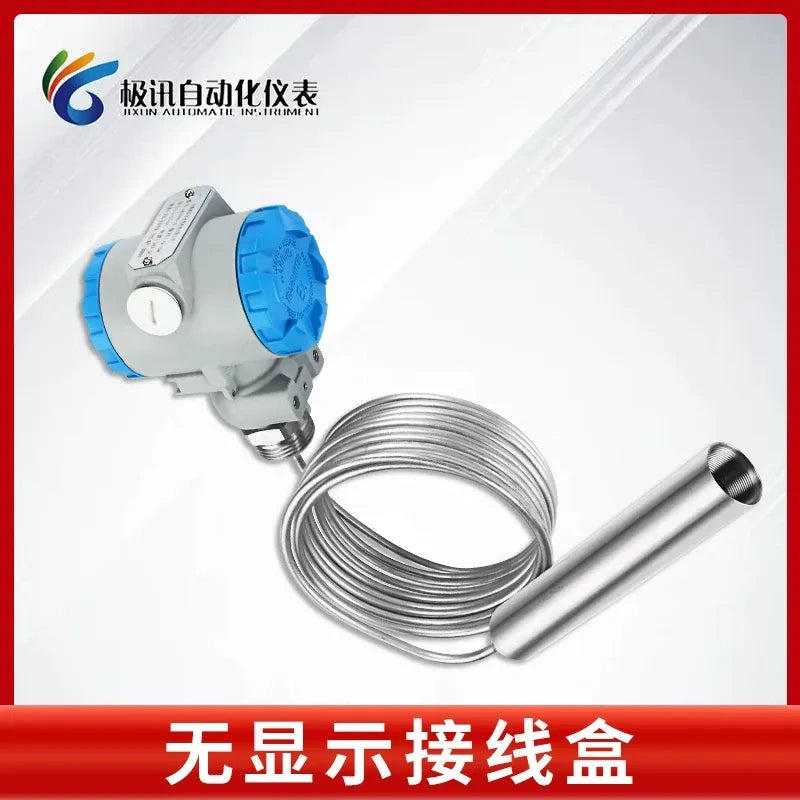

  • Stainless Steel Lightning Protection Level Transmitter

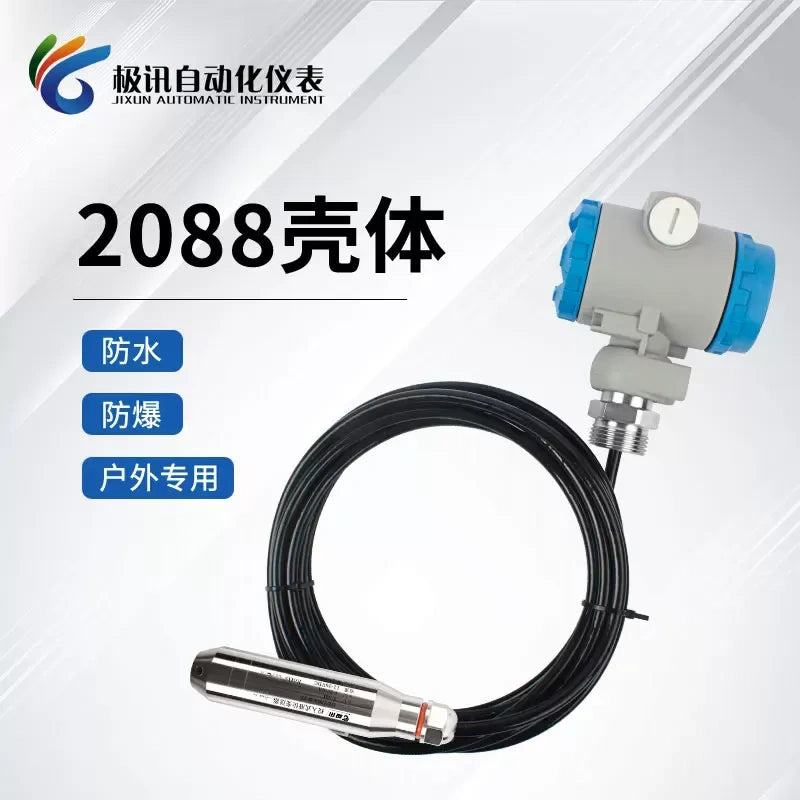

  • Split-type Lightning Protection Level Transmitter (no display)

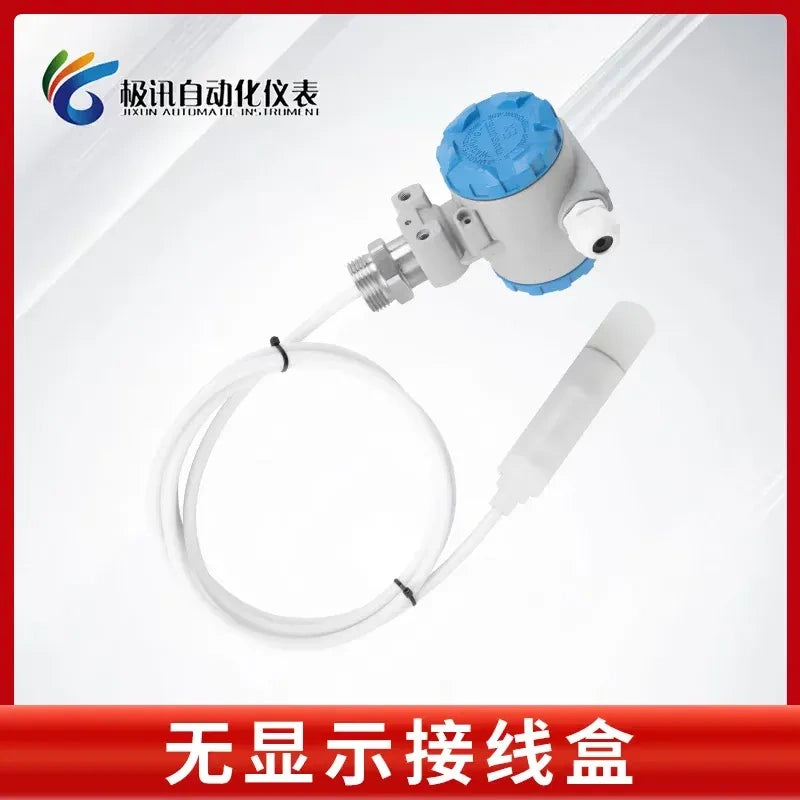

  • Split-type PTFE Anti-corrosive Lightning Protection Level Transmitter

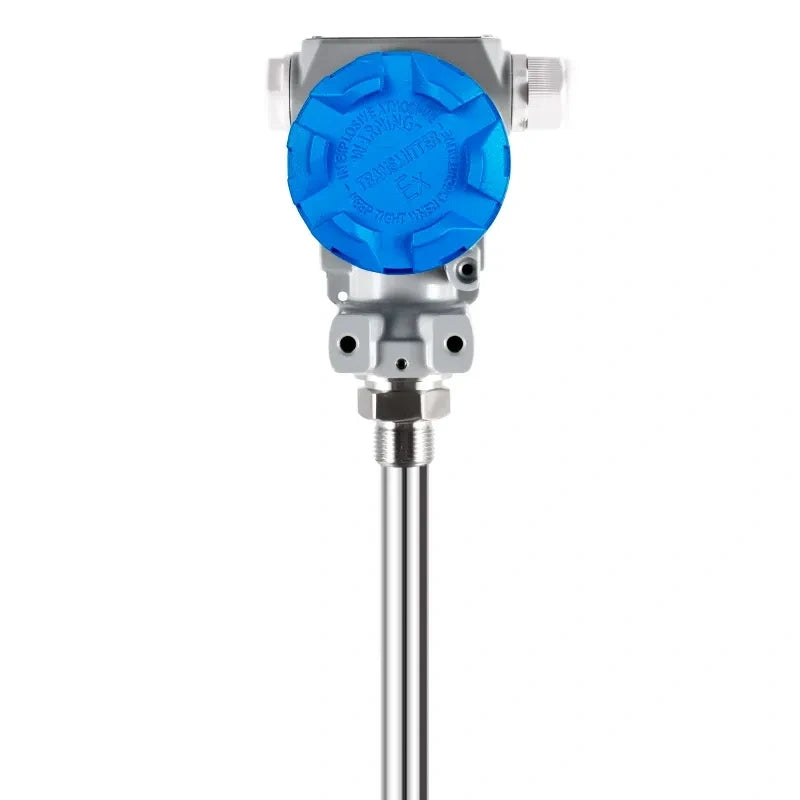

  • Direct-insert Lightning Protection Level Transmitter
1 23

electrical center b2c

Lightning Protection Submersible Hydrostatic Level Transmitter 4-20mA, 0-10m

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

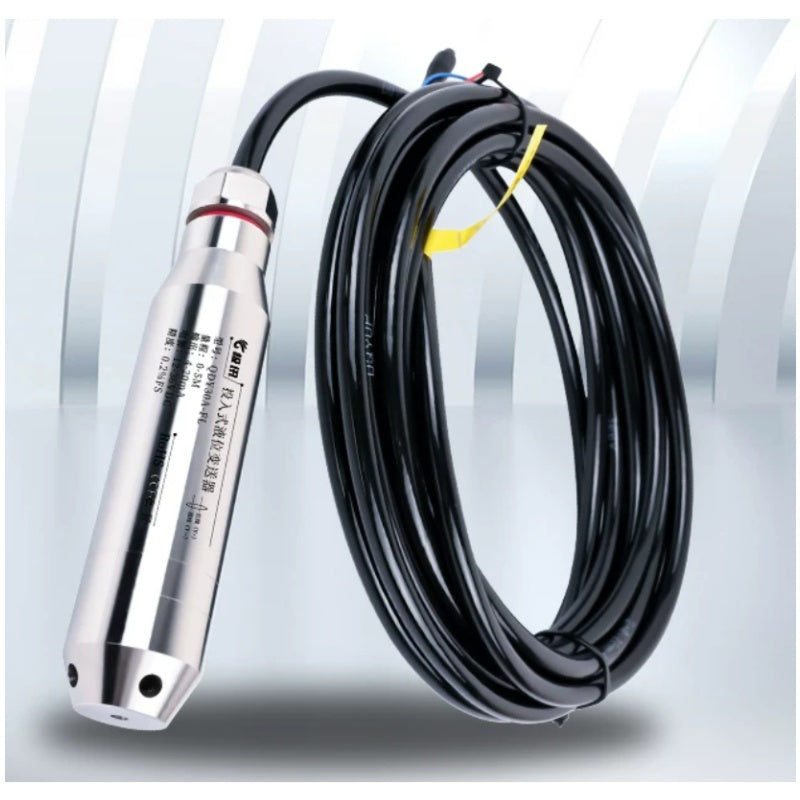

Lightning Protection Submersible Hydrostatic Level Transmitter 4-20mA, 0-10m Range IP68 Water Level Sensor for Outdoor Use

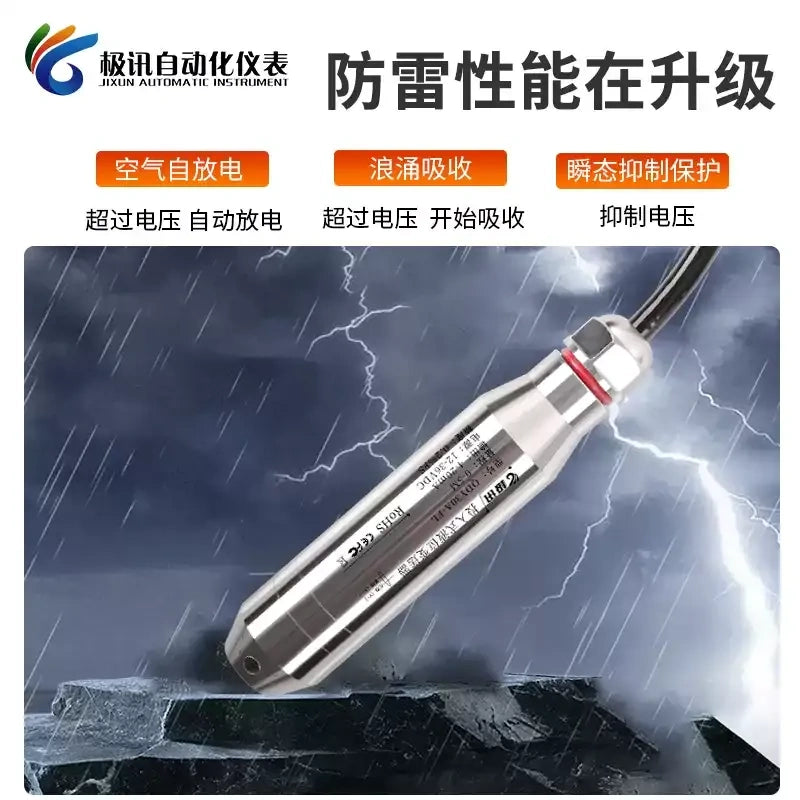

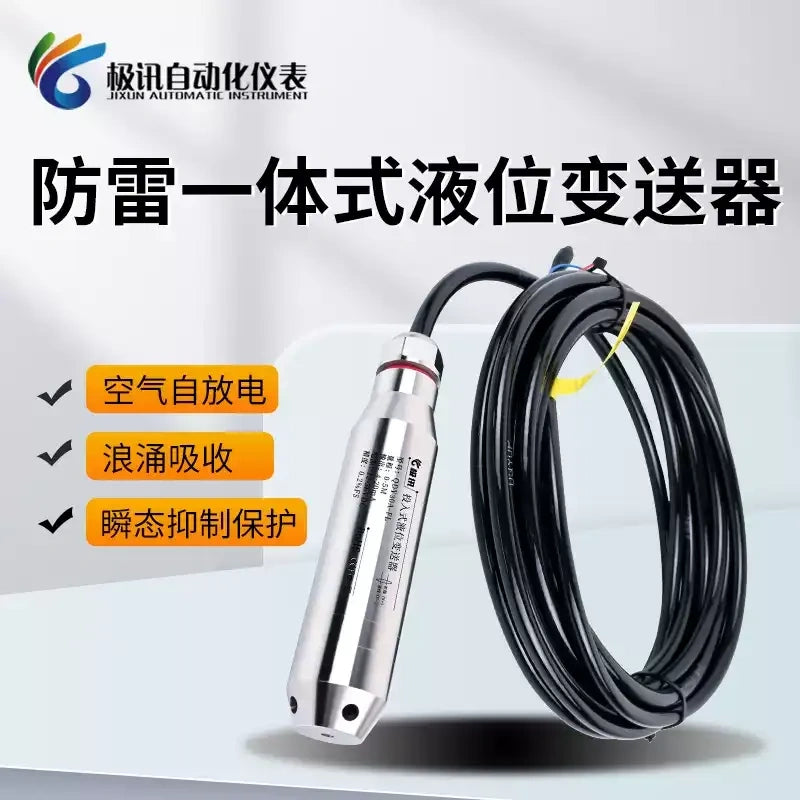

This lightning protection type submersible hydrostatic level transmitter (model QDY30A-FL) is designed for continuous liquid level measurement in outdoor environments. It features built-in anti-lightning and anti-surge protection, making it ideal for areas prone to thunderstorms. With high precision (±0.2% FS), IP68 waterproof housing, and 4-20mA output, it is suitable for fire tanks, rivers, reservoirs, and industrial water systems.

  • Standard: Lightning Protection Type Submersible Level Transmitter 4-20mA, 0-10m Range with Vented Cable
  • Split Type: Split-type Lightning Protection Level Transmitter with No Display, 4-20mA Output
  • Anti-corrosive Type: PTFE Anti-corrosive Lightning Protection Level Transmitter for Corrosive Liquids

Specification

Key Value
Product Name Lightning Protection Type Submersible Hydrostatic Level Transmitter
Model QDY30A-FL
Measuring Range 0-1m / 0-2m / 0-3m / 0-4m / 0-5m / 0-6m / 0-7m / 0-8m / 0-9m / 0-10m
Cable Length 5m / 6m / 7m / 8m / 9m / 10m (vented cable)
Output Signal 4-20mA (2-wire)
Power Supply DC 12-32V (default 24V DC)
Accuracy ±0.2% FS / ±0.5% FS
Overload Capacity 200% FS
Response Time ≤ 8ms (to 90% FS)
Operating Temp (Media/Ambient) -20°C ~ +55°C (customizable to -40°C)
Zero/Span Temp Drift ±0.2% FS
Protection Features Lightning/Surge Protection, Reverse Polarity Protection, Current Limiting
Sealing Rating IP68

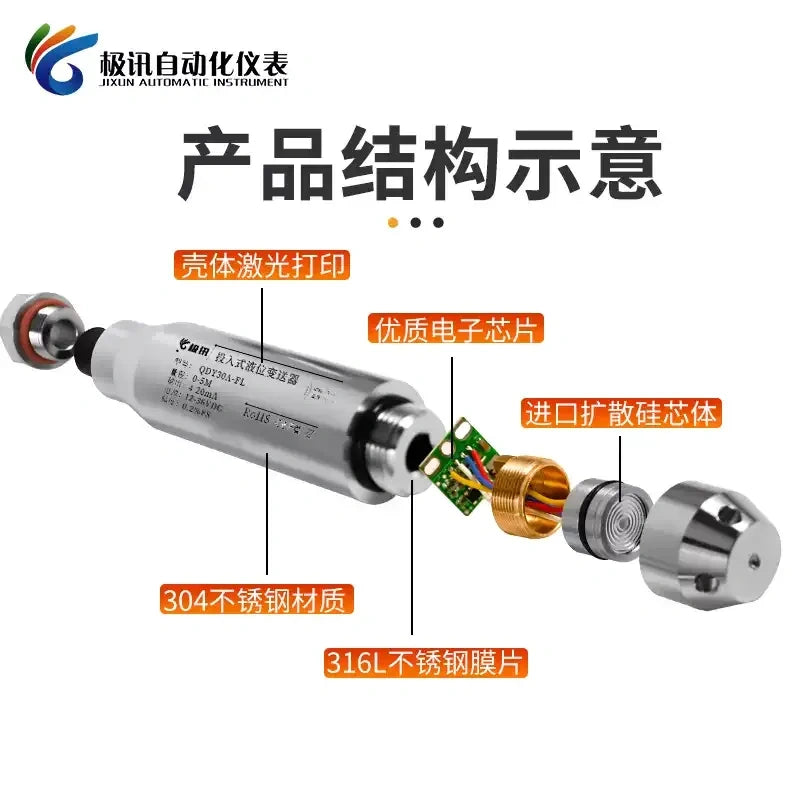

Construction Material 316L Stainless Steel diaphragm, 304 Stainless Steel housing, NBR seals, polyurethane cable
Shock/Vibration 100g (11ms) impact, 20g (20~5000Hz) vibration
Insulation Resistance 2000MΩ/250V
Options Split type (no display), stainless steel type, PTFE anti-corrosive type, direct-insert type
Features Anti-lightning, anti-surge, anti-interference, high precision, long-term stability

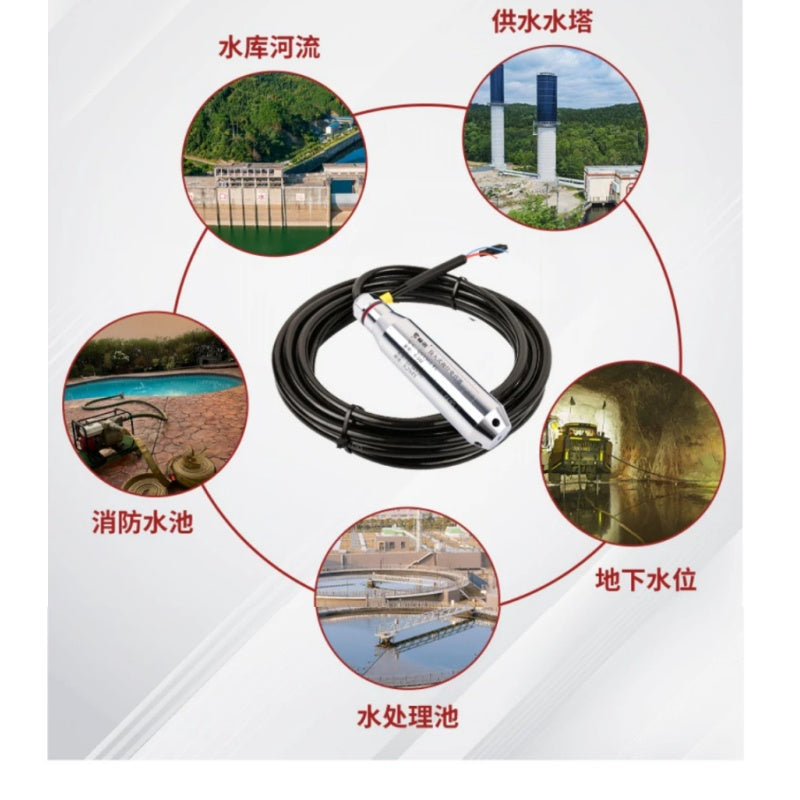

Applications Outdoor water tanks, rivers, reservoirs, groundwater monitoring, industrial water systems
