Schneider EA9 Series 1P+N MCB&RCBO
Regular price
$17.50 USD
Regular price
Sale price
$17.50 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

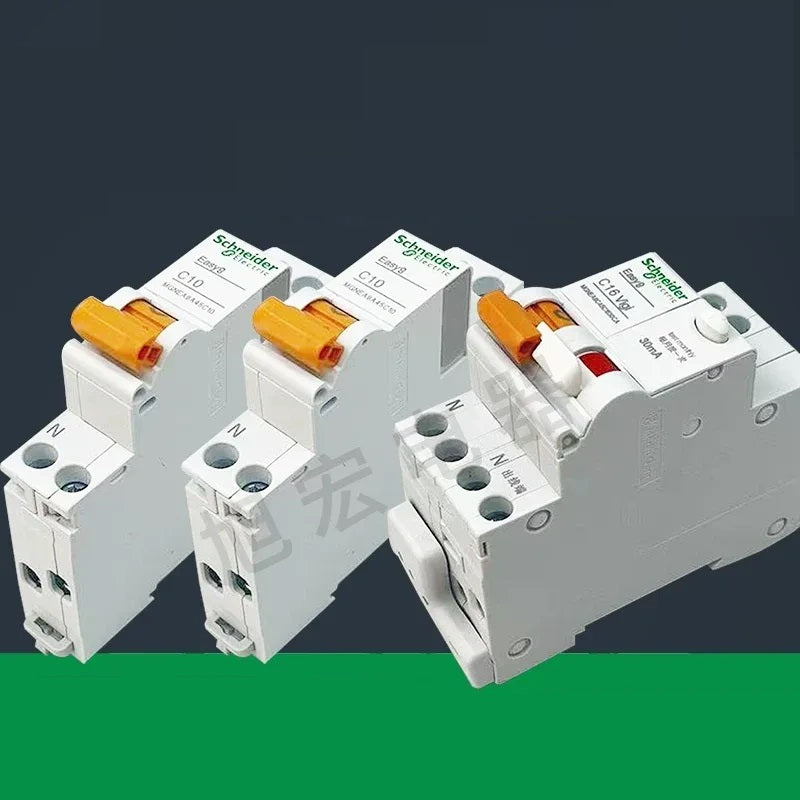

Schneider Electric Easy9 Series 1P+N Miniature Circuit Breaker (MCB) / Residual Current Circuit Breaker with Overcurrent Protection (RCBO), 4.5kA, C-Curve, 230V AC, 30mA (RCBO)
Specification
| Key | Value |
|---|---|
| Brand | Schneider Electric |
| Series | Easy9 |
| Product Type | 1P+N Miniature Circuit Breaker (MCB) / Residual Current Circuit Breaker with Overcurrent Protection (RCBO) |
| Poles | 1P+N (1 protected pole + neutral) |
| Rated Voltage | 230V AC, 50/60Hz |
| Breaking Capacity (Icn) | 4.5kA |
| Tripping Curve | C-Curve (5–10 × In magnetic trip) |
| Rated Current (In) | 10A / 16A / 20A / 25A / 32A / 40A |
| Rated Residual Current (IΔn, RCBO only) | 30mA |
| Leakage Type (RCBO only) | Type AC |
| Mounting | 35mm standard DIN rail |
| Connection | 1–16mm² copper wire (rigid/flexible) |
| Protection Functions | - MCB: Overload + Short-circuit protection
|
| Compliance Standards | IEC 60898-1 (MCB) / IEC 61009-1 (RCBO) |
| Certifications | CE, CCC |
| Operating Temperature | -5°C ~ +60°C |
MCB（without residual protection，EA9A45 Series）PART NO.
| Rated Current | Part Number | Full Description |
|---|---|---|

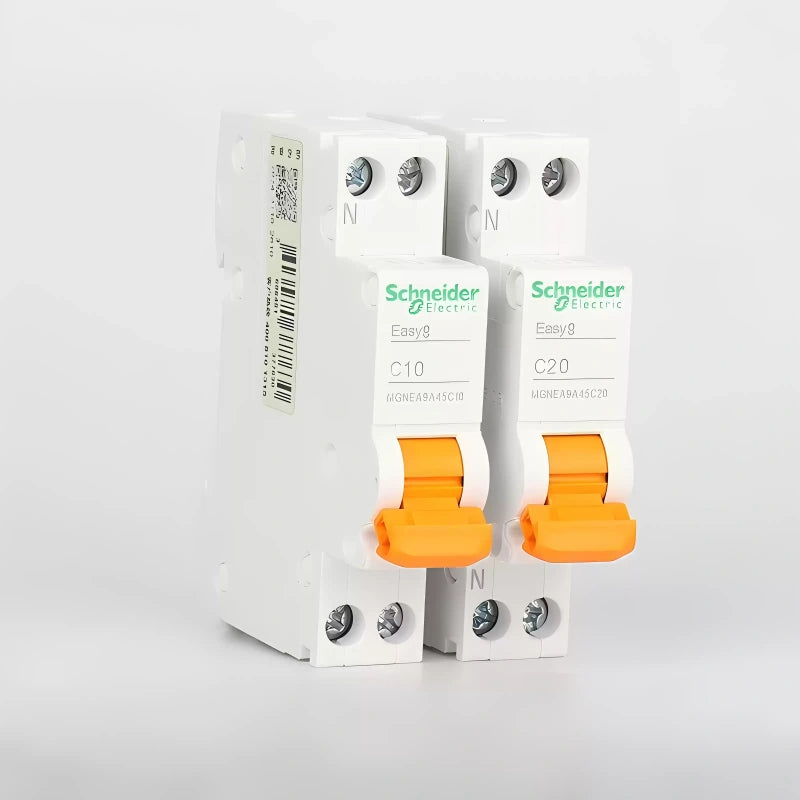

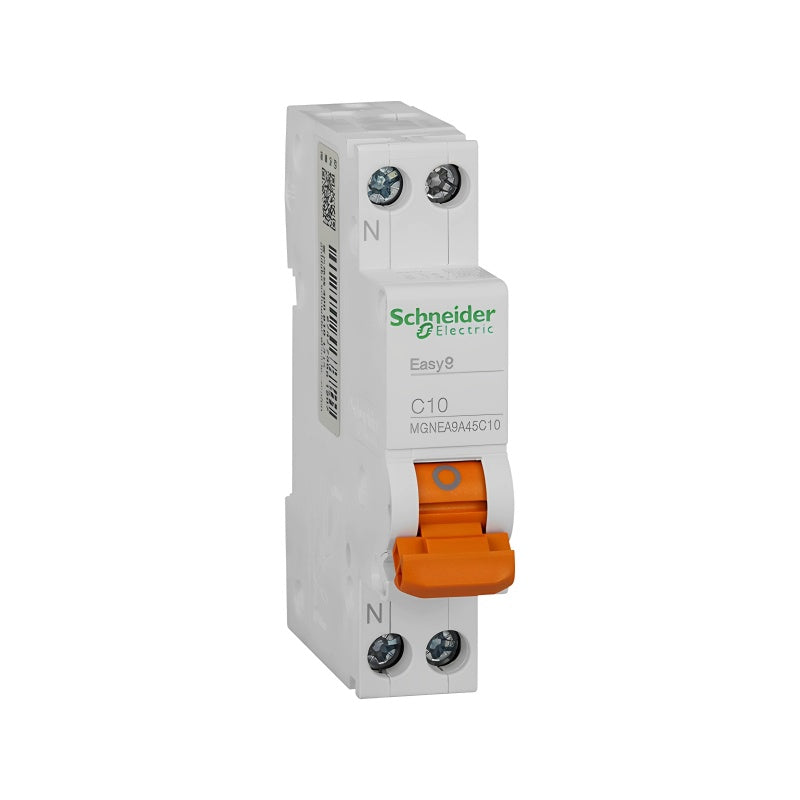

| 10A | MGNEA9A45C10 | Easy9 EA9A45 1P+N C10A 4.5kA MCB |
| 16A | MGNEA9A45C16 | Easy9 EA9A45 1P+N C16A 4.5kA MCB |
| 20A | MGNEA9A45C20 | Easy9 EA9A45 1P+N C20A 4.5kA MCB |
| 25A | MGNEA9A45C25 | Easy9 EA9A45 1P+N C25A 4.5kA MCB |
| 32A | MGNEA9A45C32 | Easy9 EA9A45 1P+N C32A 4.5kA MCB |
| 40A | MGNEA9A45C40 | Easy9 EA9A45 1P+N C40A 4.5kA MCB |
RCBO（with 30mA residual protection，EA9C45 Series）PART NO.
| Rated Current | Part Number | Full Description |
|---|---|---|
| 10A | MGNEA9C45C1030CA | Easy9 EA9C45 1P+N C10A 30mA Type AC RCBO |

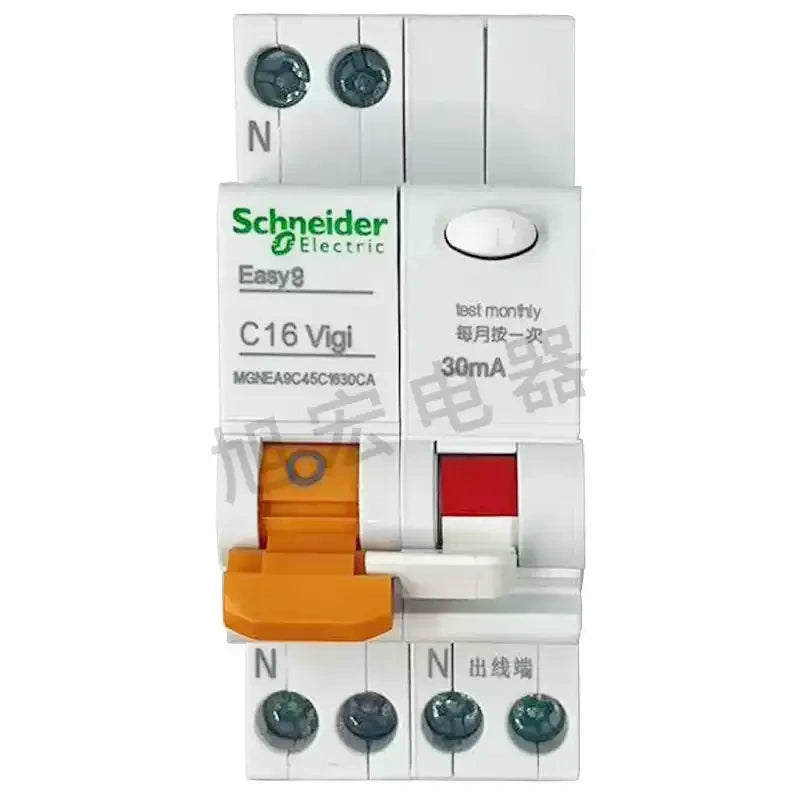

| 16A | MGNEA9C45C1630CA | Easy9 EA9C45 1P+N C16A 30mA Type AC RCBO |
| 20A | MGNEA9C45C2030CA | Easy9 EA9C45 1P+N C20A 30mA Type AC RCBO |
| 25A | MGNEA9C45C2530CA | Easy9 EA9C45 1P+N C25A 30mA Type AC RCBO |
| 32A | MGNEA9C45C3230CA | Easy9 EA9C45 1P+N C32A 30mA Type AC RCBO |
| 40A | MGNEA9C45C4030CA | Easy9 EA9C45 1P+N C40A 30mA Type AC RCBO |
