Schneider LC1K / LP1K Series Mini Contactor

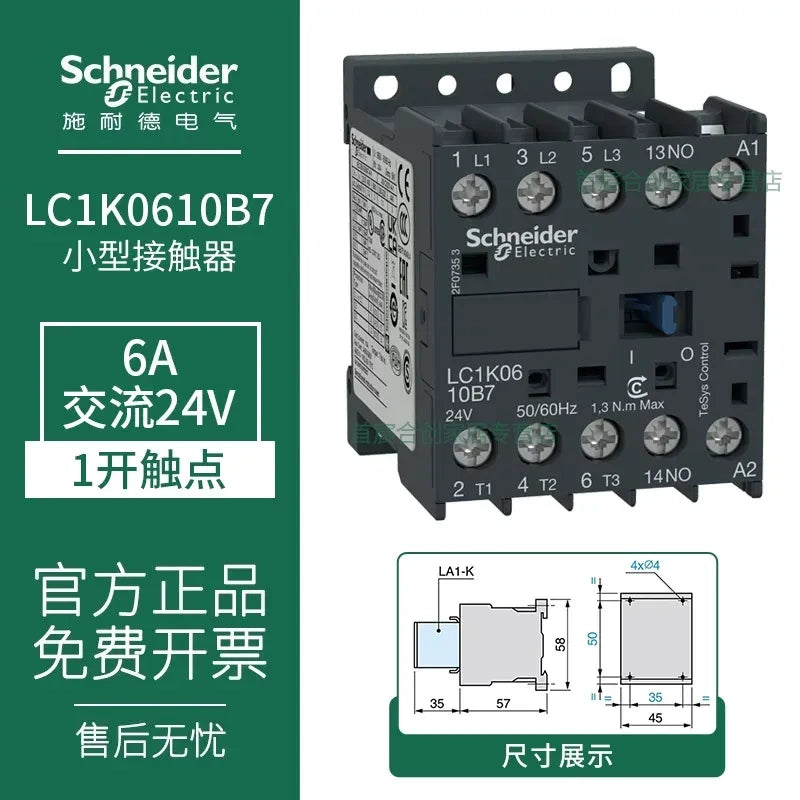

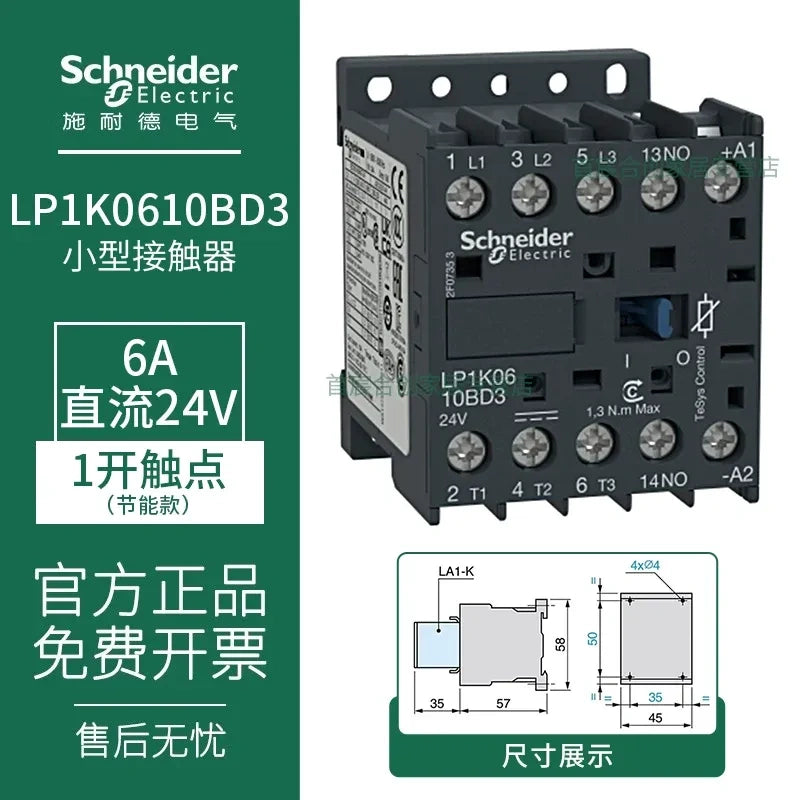

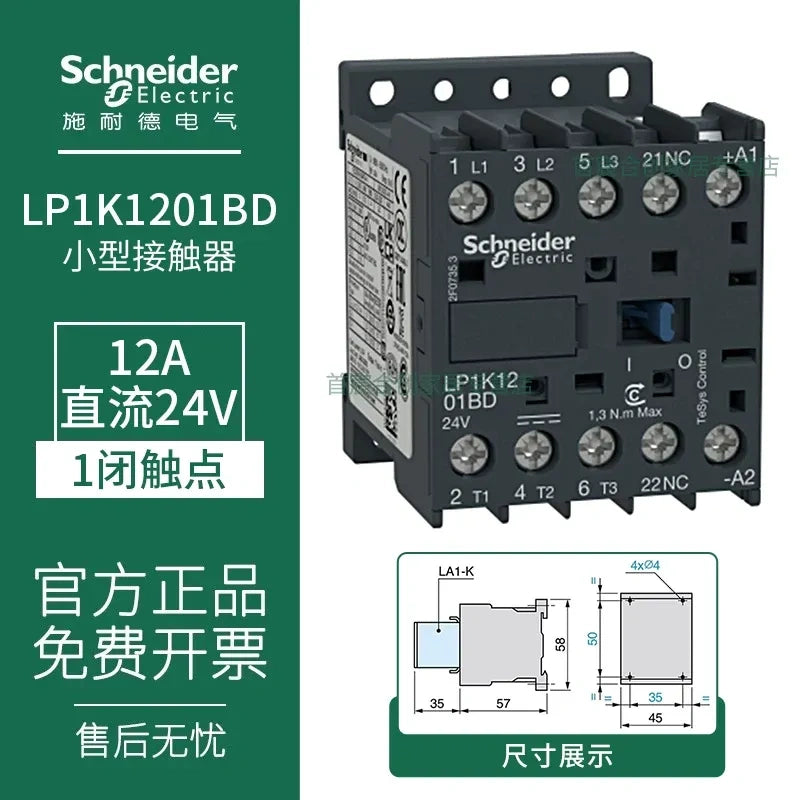

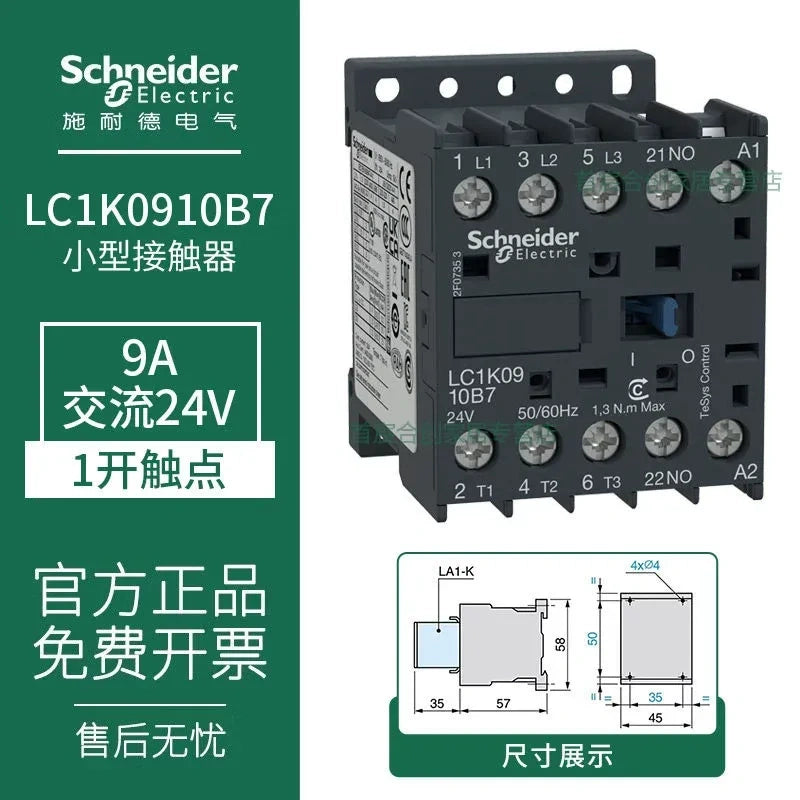

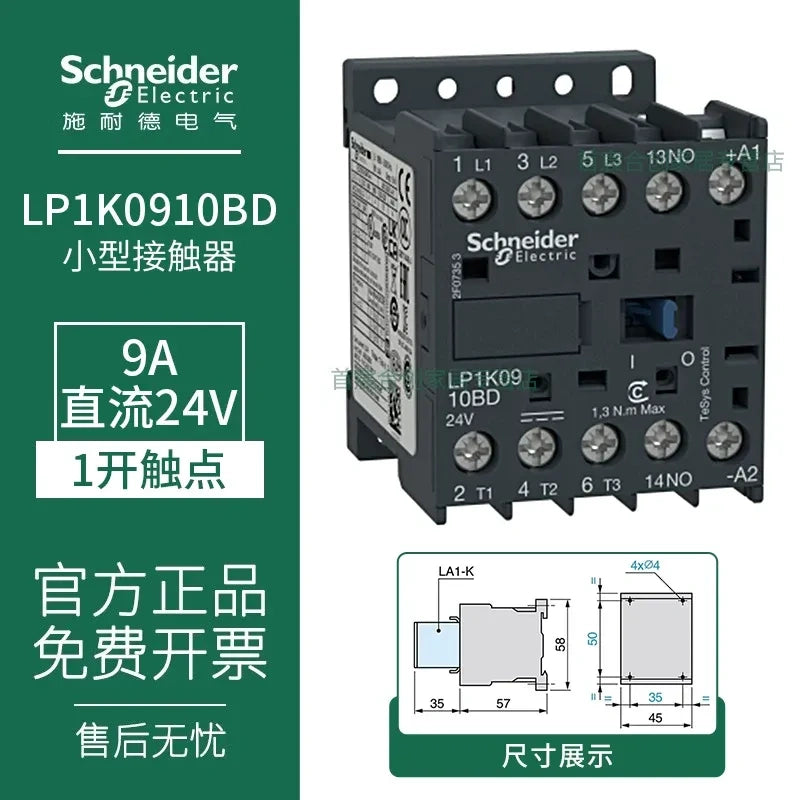

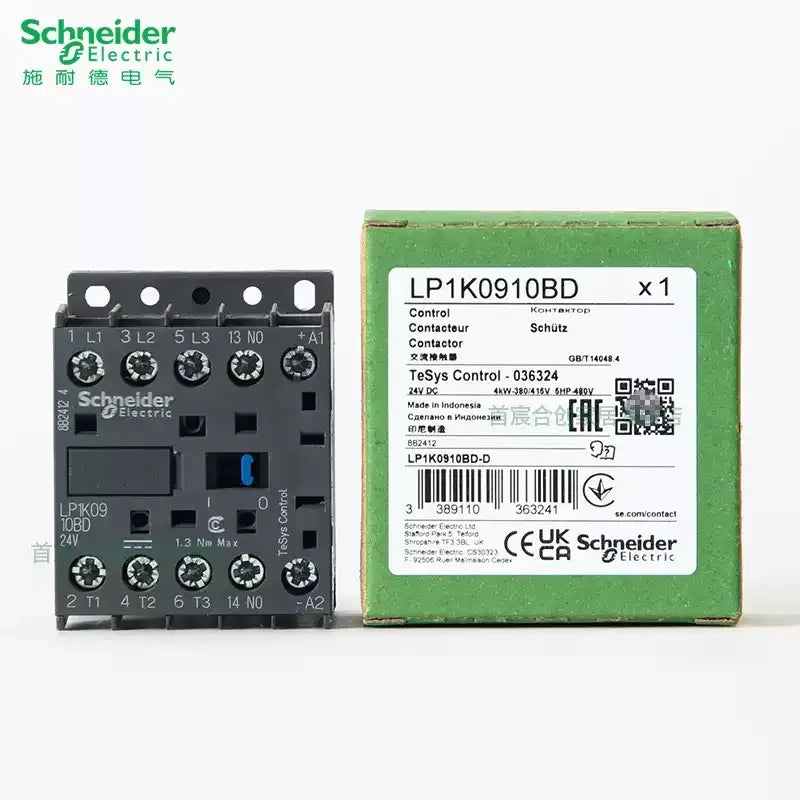

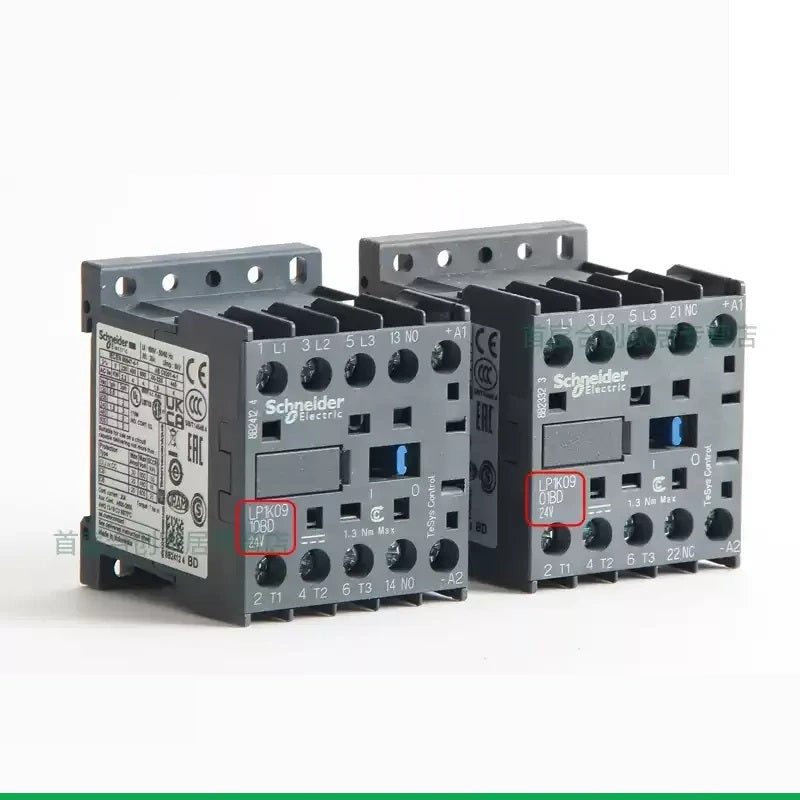

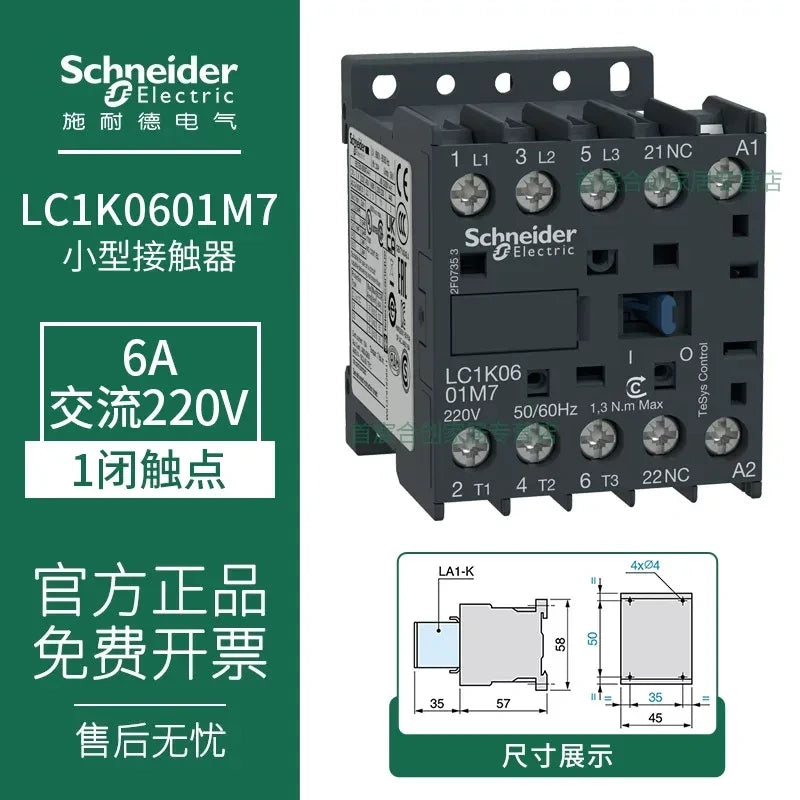

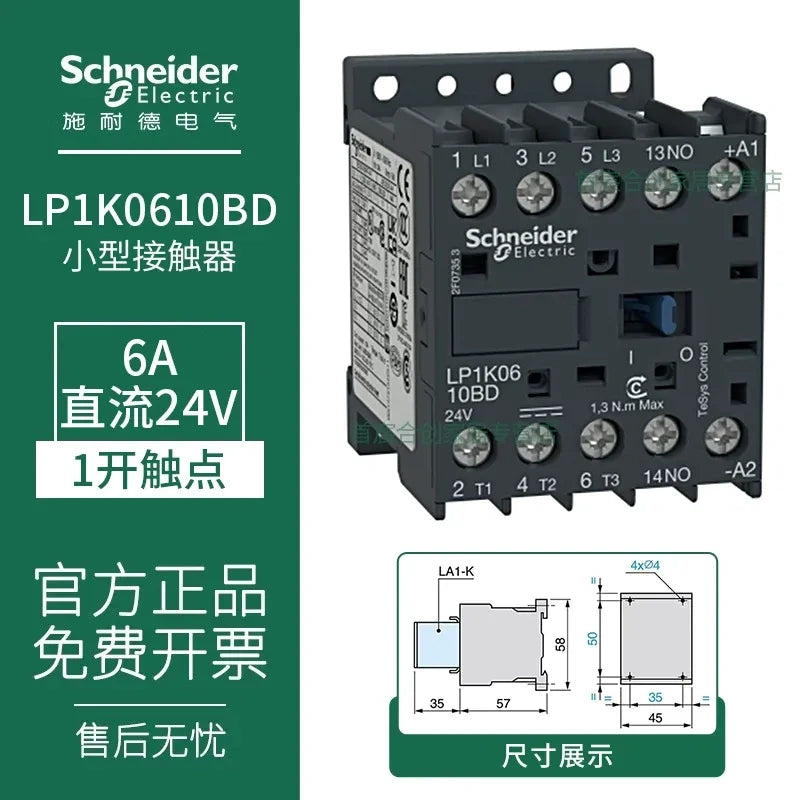

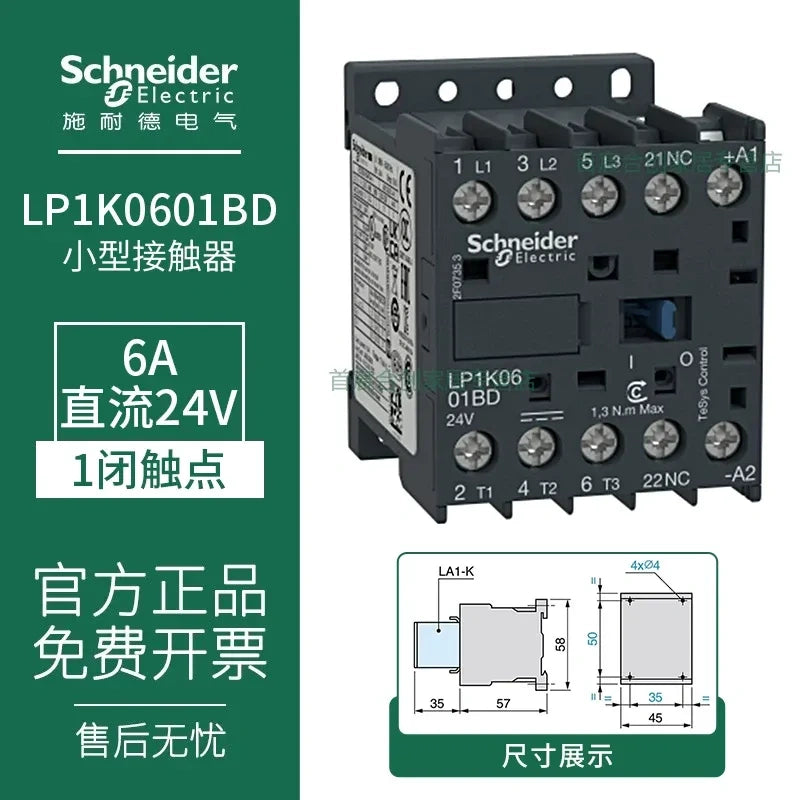

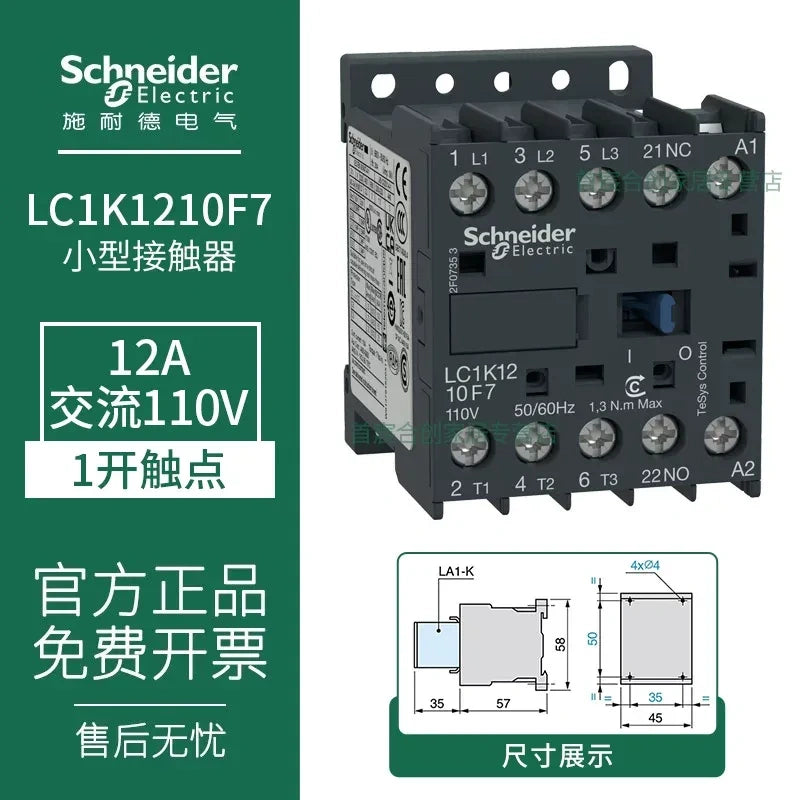

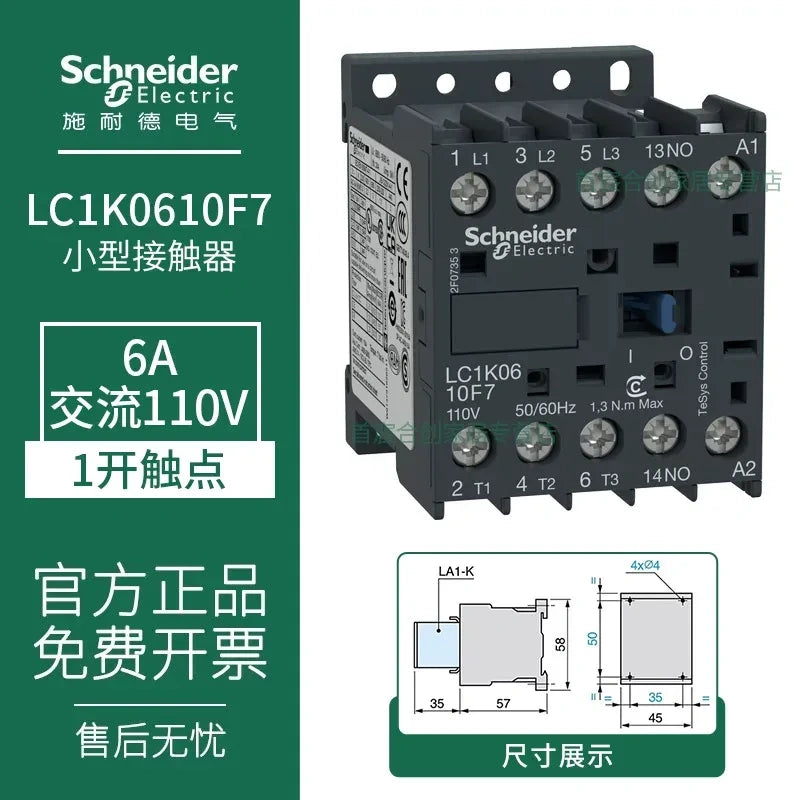

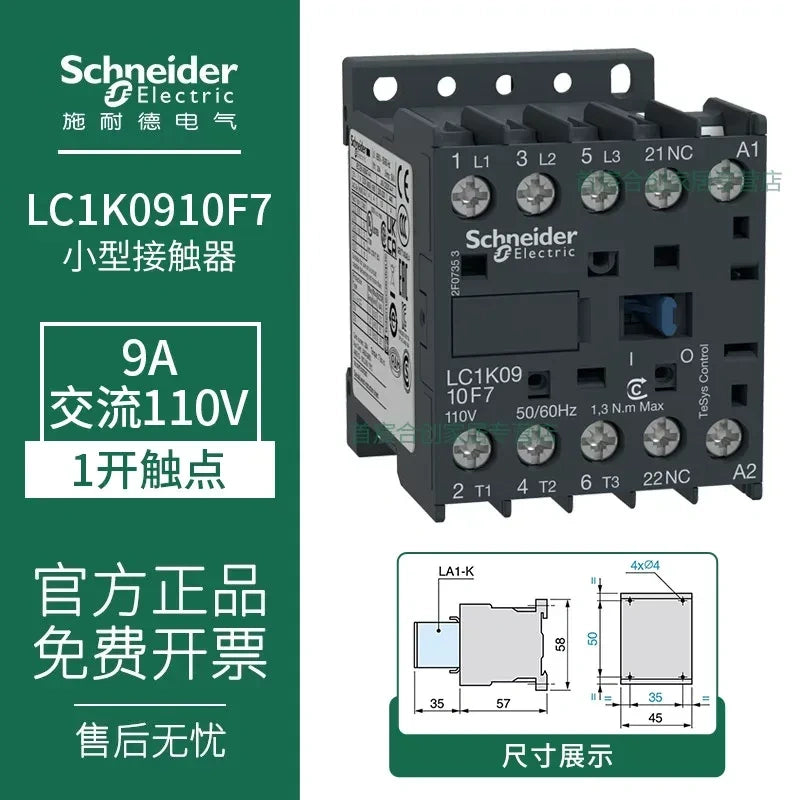

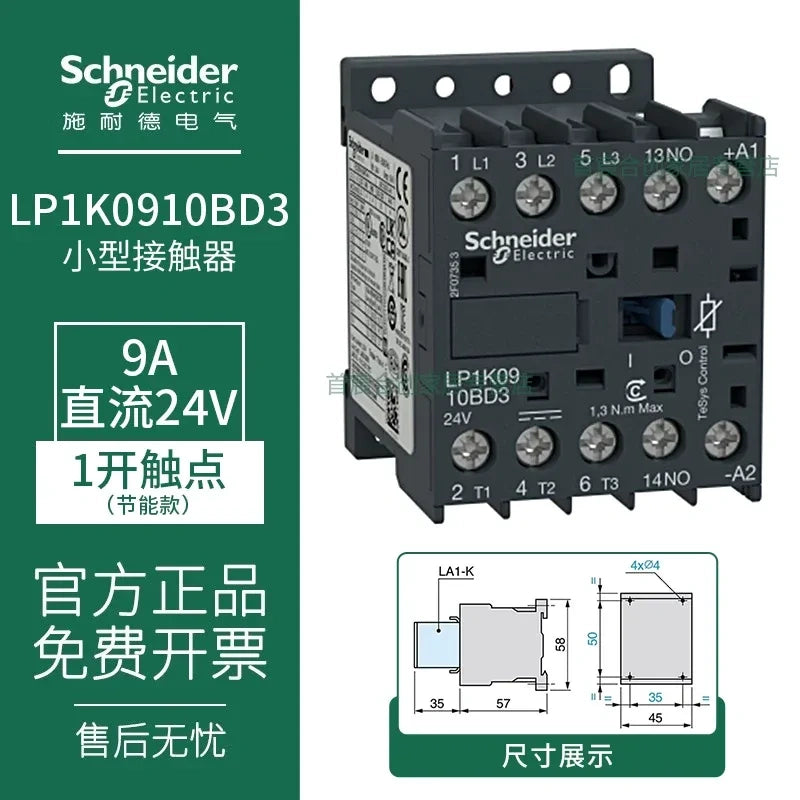

Original Schneider LC1K (AC coil) and LP1K (DC coil) series mini contactors, including models LC1K0610, LC1K0910, LC1K1210, LP1K0610BD, LP1K0910BD, LP1K1210BD. These 3-pole contactors are rated for 6A, 9A, and 12A at 440/690VAC, with coil voltage options 24VAC, 110VAC, 220VAC, and 24VDC. They feature 1NO or 1NC auxiliary contacts, with expandable options using LA1KN11 (1NO1NC) and LA1KN22 (2NO2NC) modules. Widely used for motor control, lighting, and automation circuits in industrial control panels.

• Versatile Coil Voltage Options: Choose from 24VAC, 110VAC, 220VAC, or 24VDC coils to match your control circuit requirements.
• Multiple Current Ratings: Available in 6A, 9A, and 12A models, suitable for various motor and load sizes.
• Expandable Auxiliary Contacts: Compatible with LA1KN series auxiliary contact modules for additional NO/NC contacts.
• Compact DIN Rail Mounting: Designed for 35mm DIN rail mounting, saving space in control panels.
• Reliable Schneider Quality: High-performance contacts and durable construction ensure long life in industrial environments.

Specification

Attribute	Parameter Details
Brand	Schneider Electric
Series	LC1K (AC coil) / LP1K (DC coil)
Rated Current (AC-3)	6A (LC1K06), 9A (LC1K09), 12A (LC1K12)
Rated Voltage	440/690VAC
Coil Voltage Options	24VAC (B7), 110VAC (F7), 220VAC (M7), 24VDC (BD)

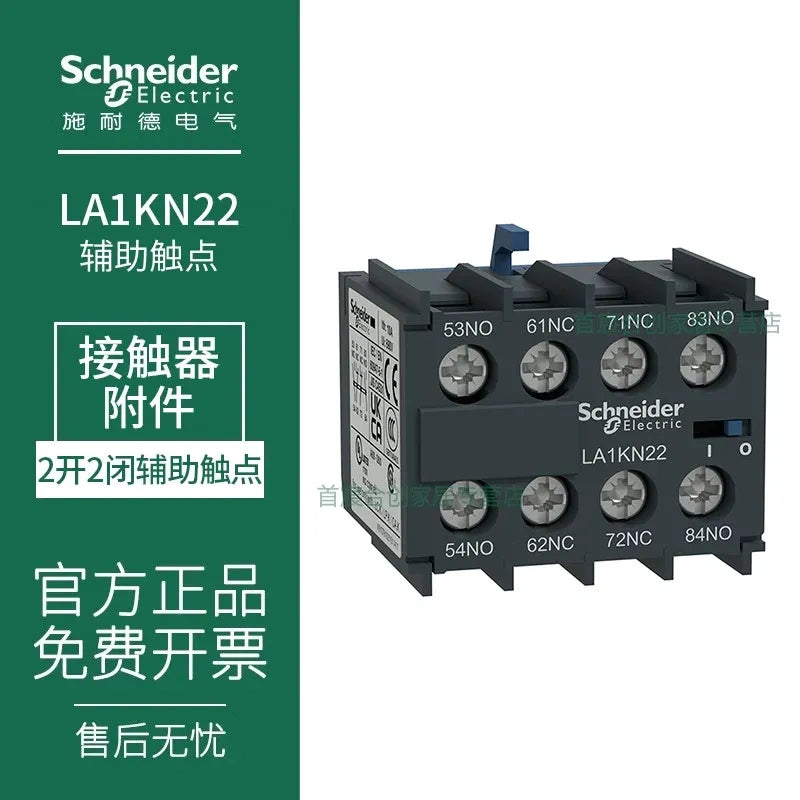

Auxiliary Contacts	Built-in 1NO or 1NC; expandable with LA1KN11 (1NO1NC) / LA1KN22 (2NO2NC)

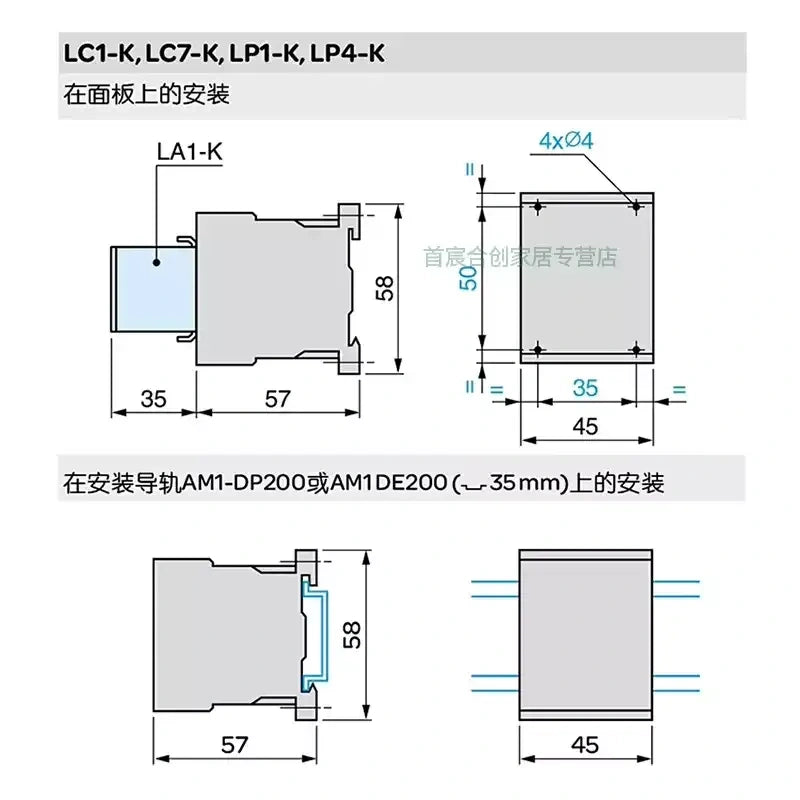

Mounting	DIN rail 35mm or screw mounting
Applications	Motor control, lighting circuits, automation control panels, industrial equipment
