Name: Schneider OSMFU Series Fuse Holder (DIN Rail Mount)
Brand: Schneider Electric
SKU: Schneider Fuse Holder (DIN Rail Mount) OSMFU132 1P 32A Without Fuse
Price: 17.8 USD
Availability: InStock

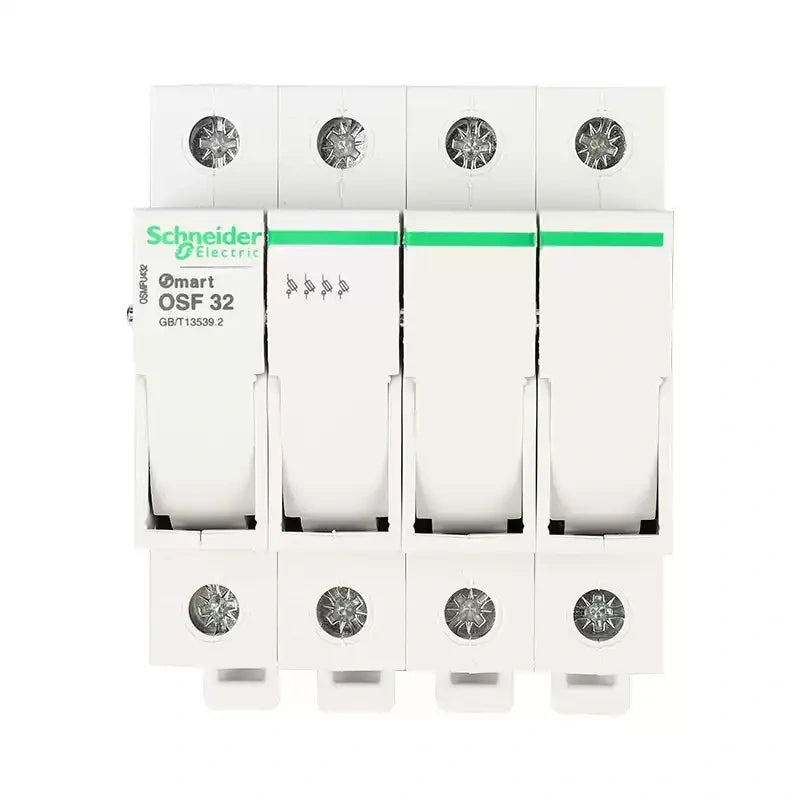

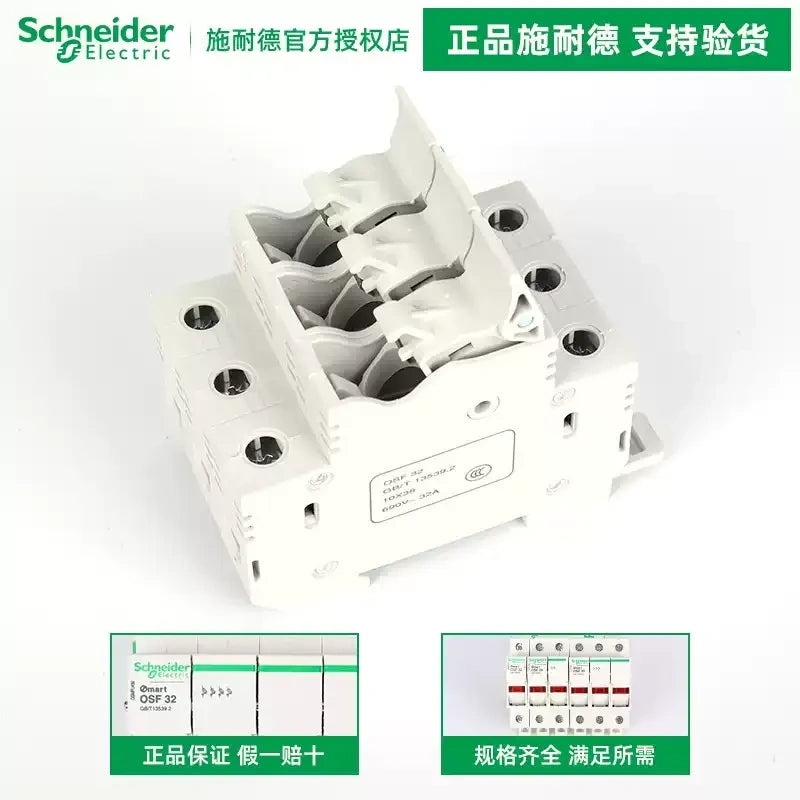

Schneider OSMFU Series Fuse Holder (DIN Rail Mount)

Product Basic Info

Brand: Schneider Electric
Series: OSMFU
Product Type: Fuse Holder (DIN Rail Mount)
Rated Current: 32A / 63A
Rated Voltage: 400V AC
Poles: 1P / 2P / 3P / 4P
Fuse Size: 10×38mm (for 32A series) / 14×51mm (for 63A series)

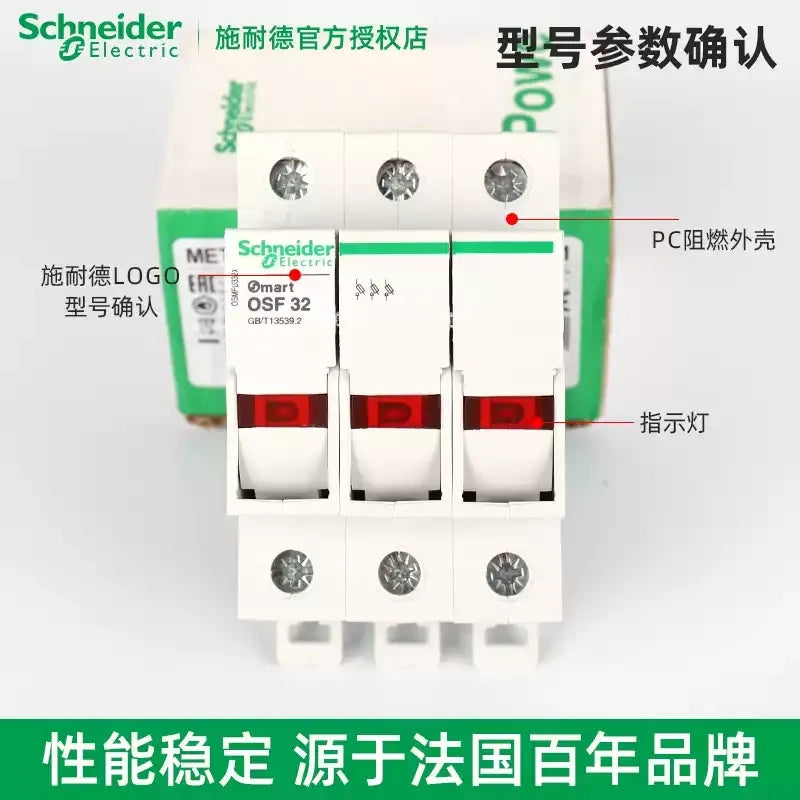

Indicator Option: With LED indicator (suffix "X") / Without indicator
Mounting: Standard 35mm DIN Rail
Connection: Screw terminal (max 16mm² copper wire)
Protection Functions: Overcurrent protection via compatible fuse links
Compliance Standards: IEC 60947-3, GB 14048.3
Certification: CE
Operating Temperature: -5°C ~ +60°C

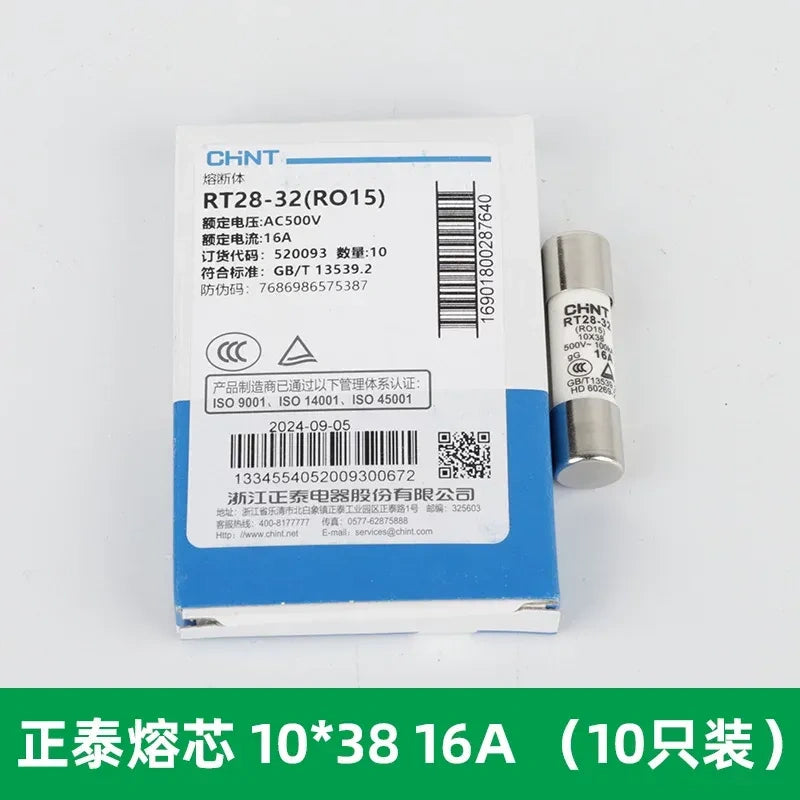

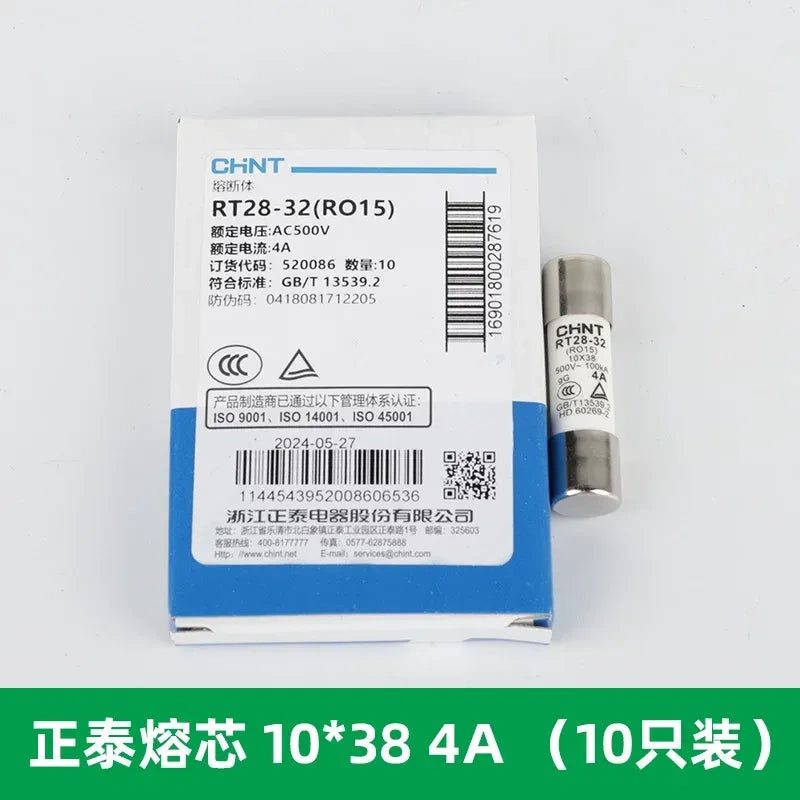

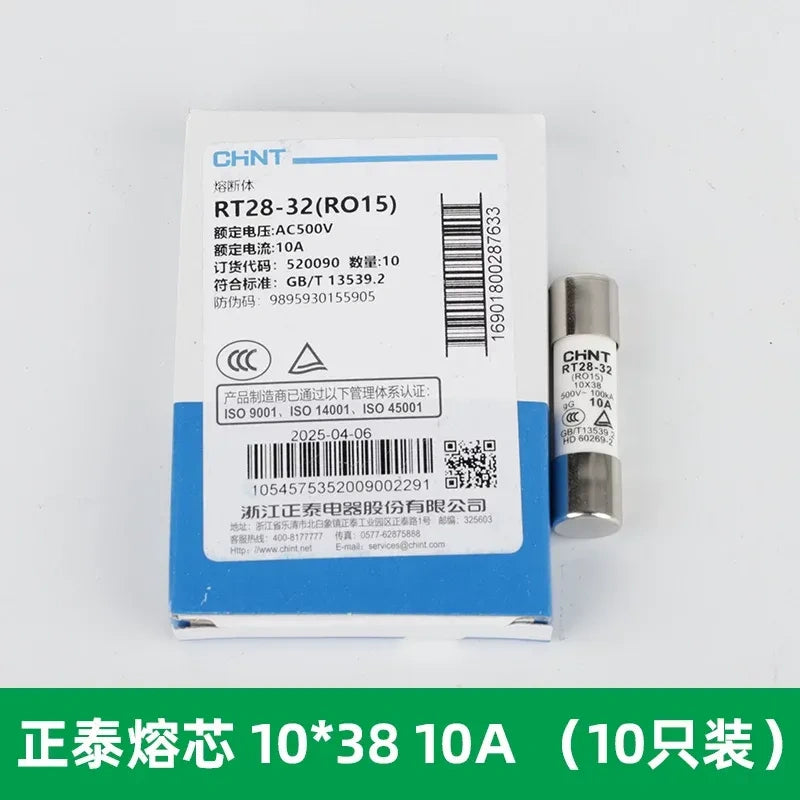

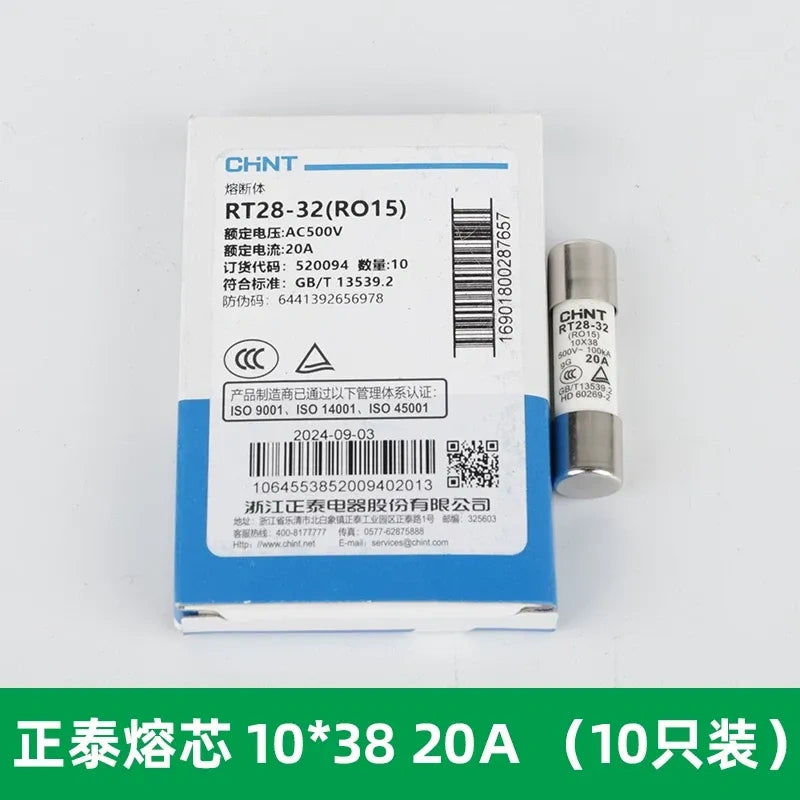

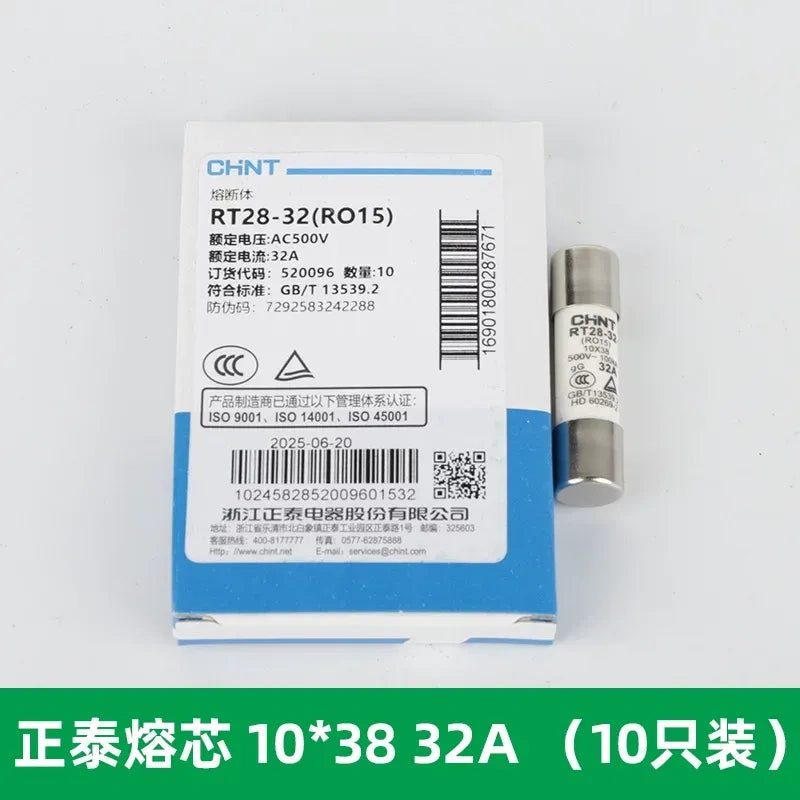

Note: Fuse holder only, fuse links sold separately

ITEM NO.

Part Number	Poles	Rated Current	With Indicator	Compatible Fuse Size

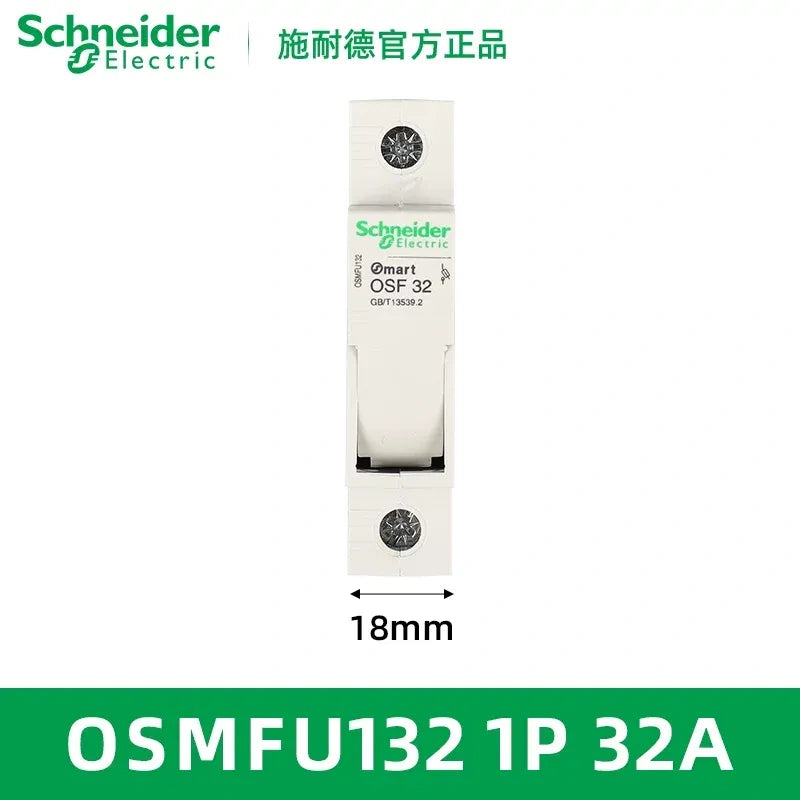

OSMFU132	1P	32A	No	10×38mm

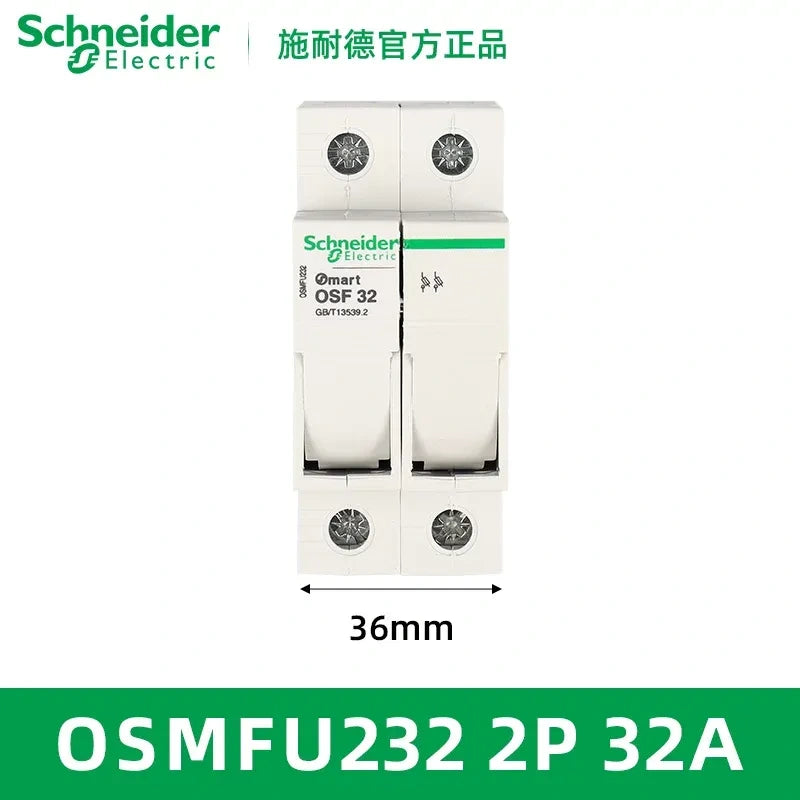

OSMFU232	2P	32A	No	10×38mm

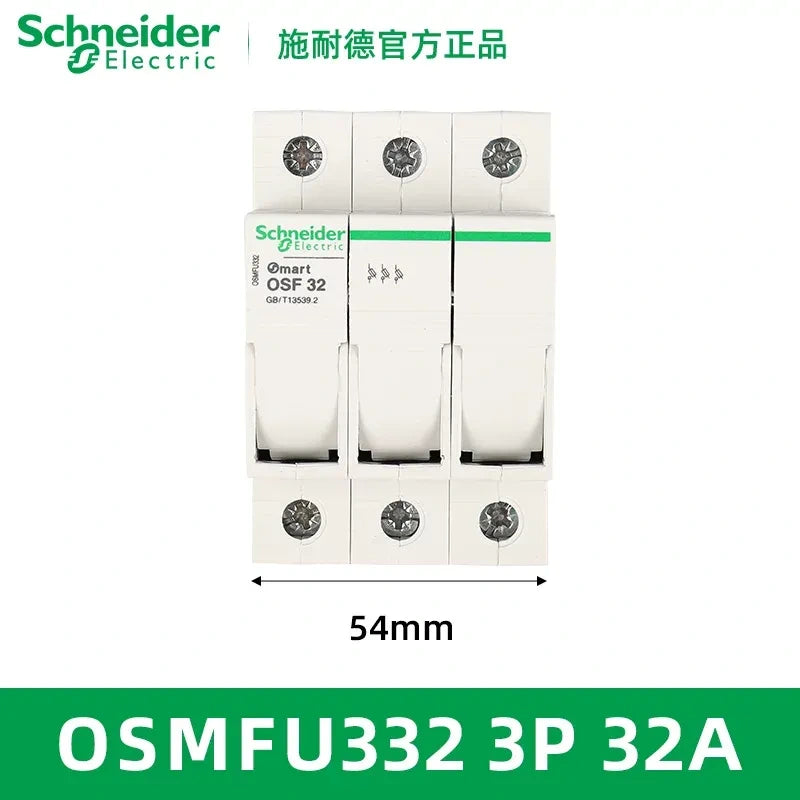

OSMFU332	3P	32A	No	10×38mm

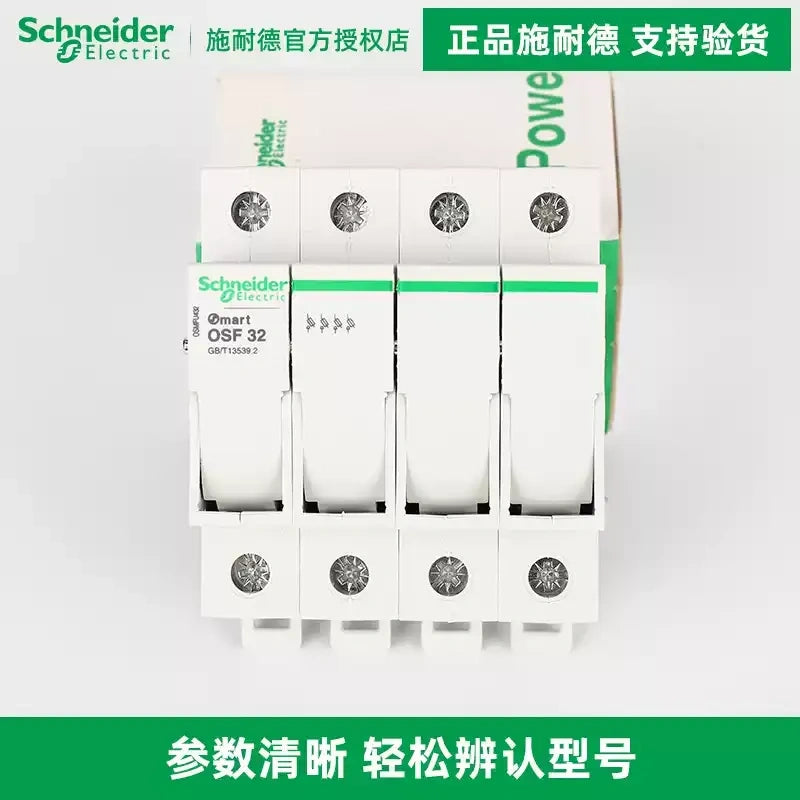

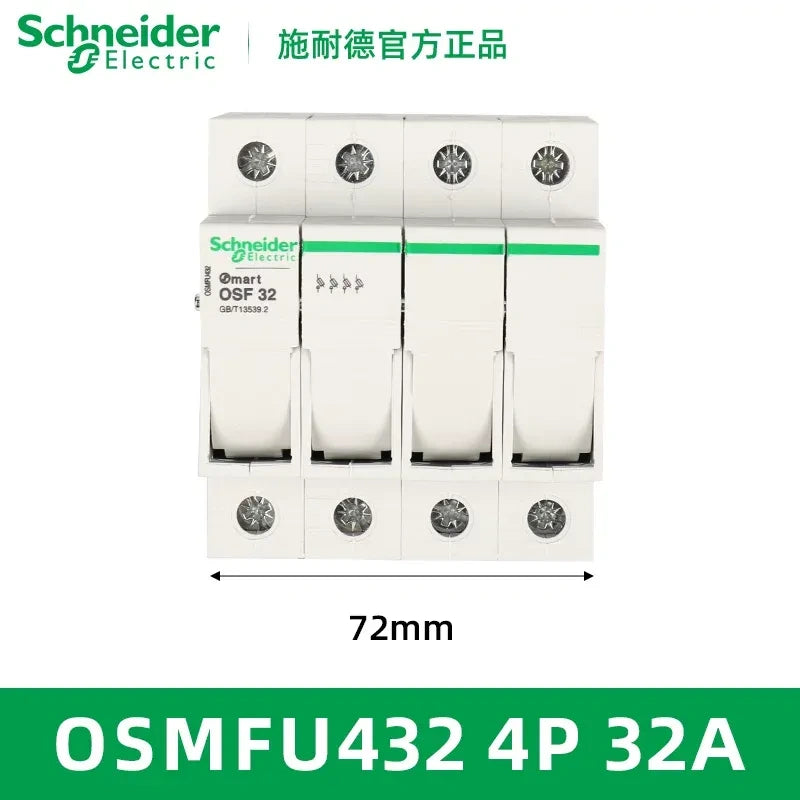

OSMFU432	4P	32A	No	10×38mm

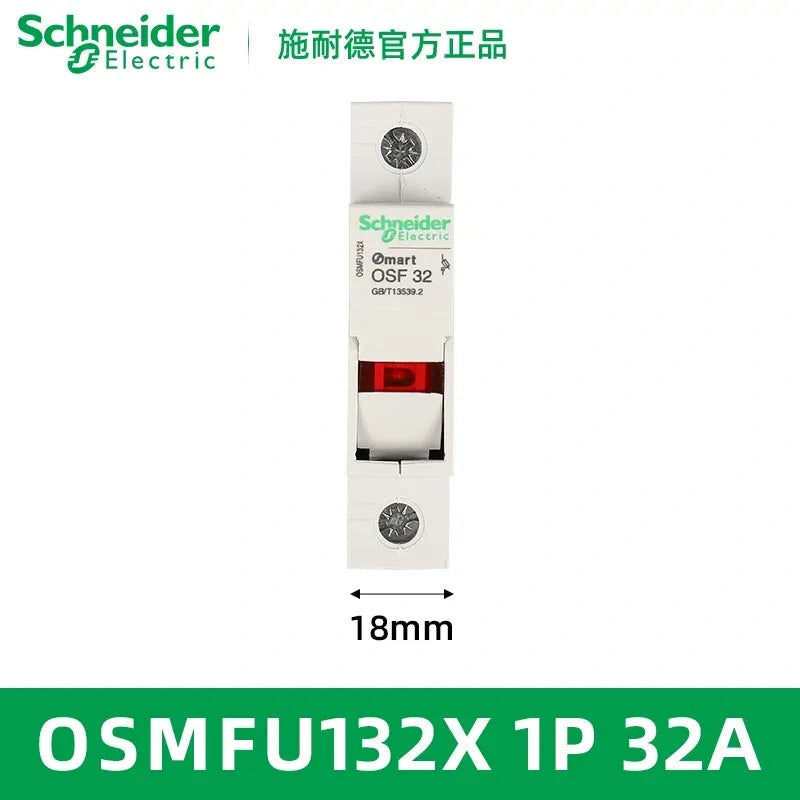

OSMFU132X	1P	32A	Yes	10×38mm

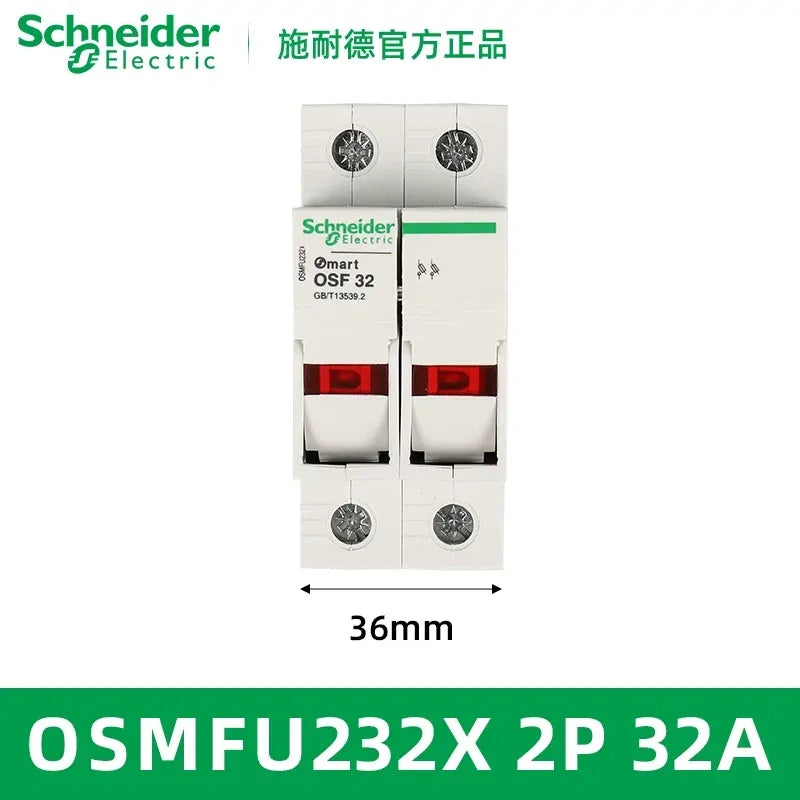

OSMFU232X	2P	32A	Yes	10×38mm

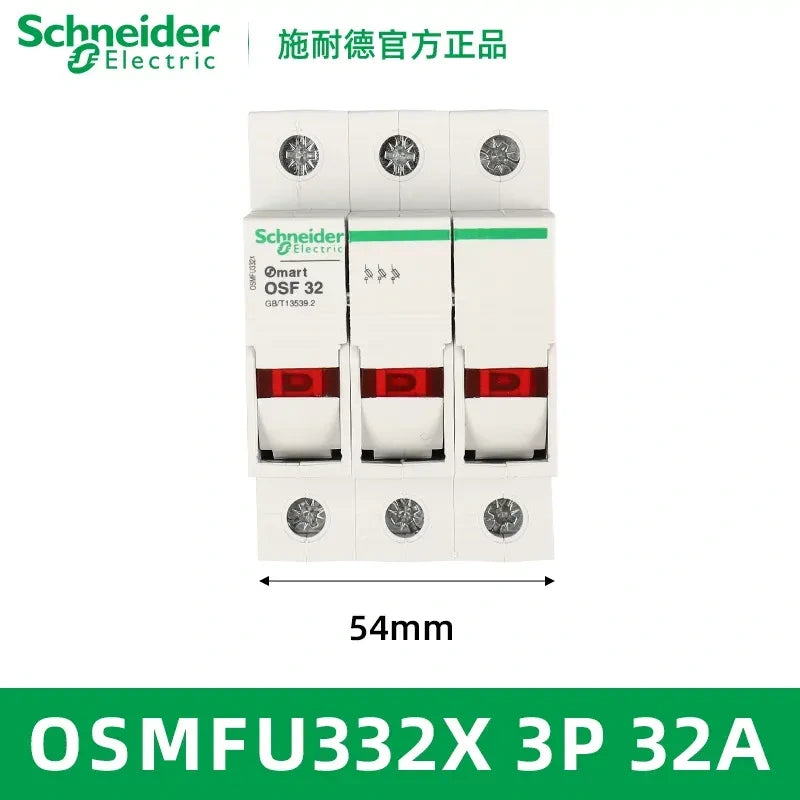

OSMFU332X	3P	32A	Yes	10×38mm

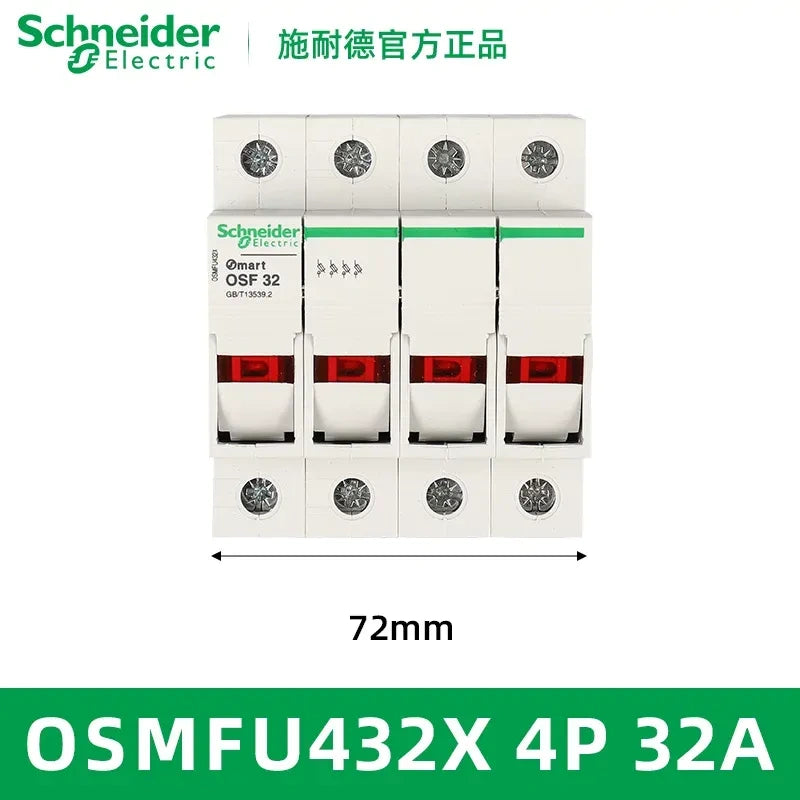

OSMFU432X	4P	32A	Yes	10×38mm

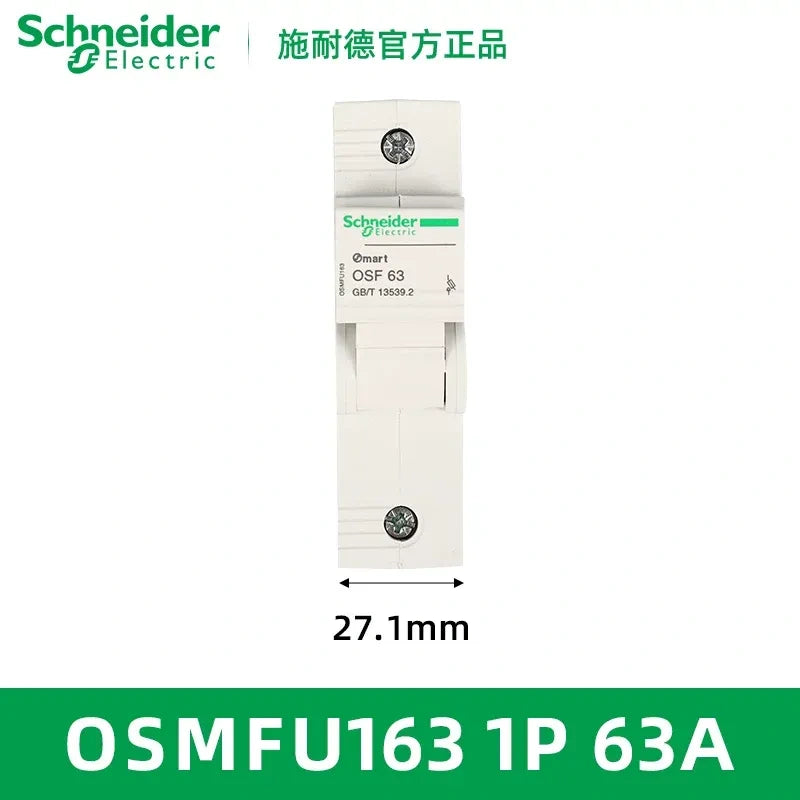

OSMFU163	1P	63A	No	14×51mm

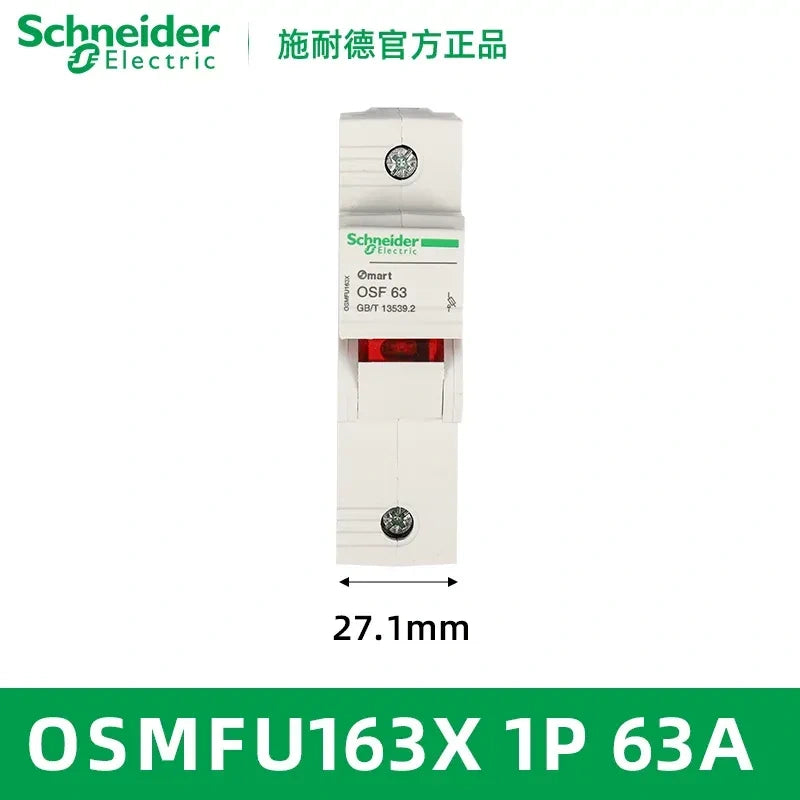

OSMFU163X	1P	63A	Yes	14×51mm

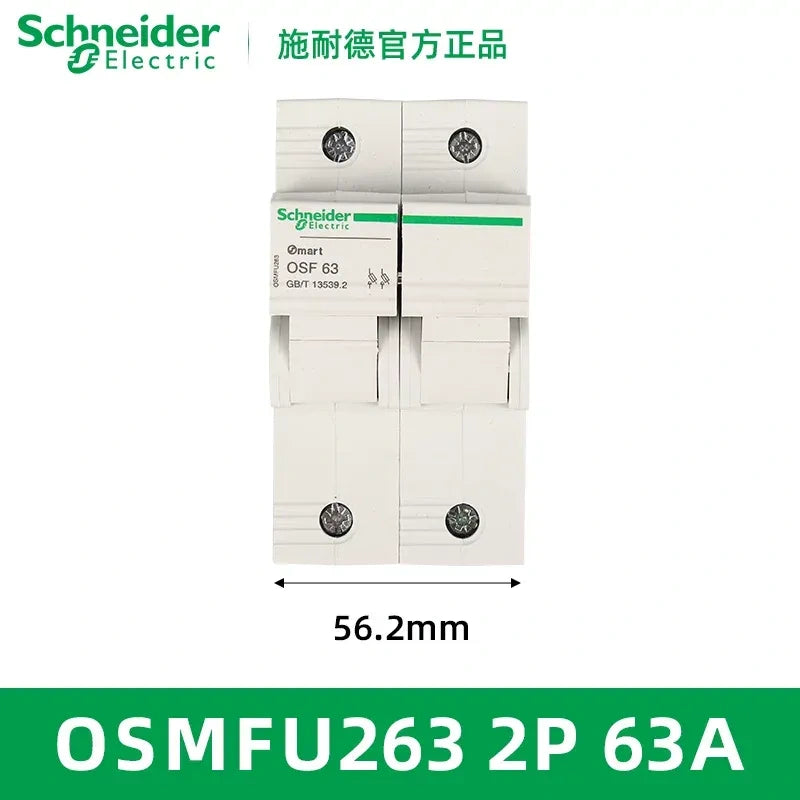

OSMFU263	2P	63A	No	14×51mm

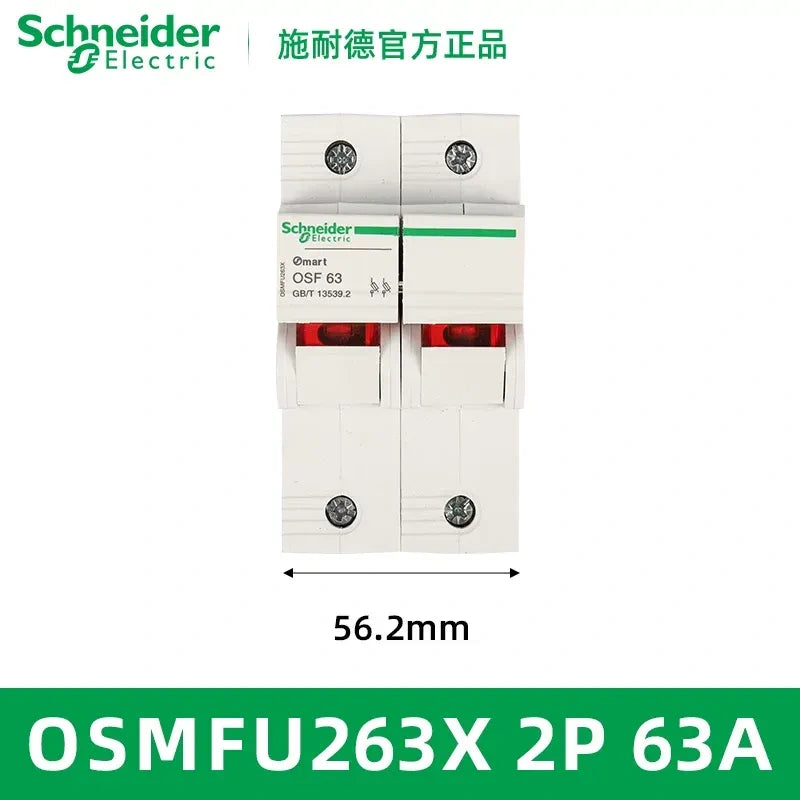

OSMFU263X	2P	63A	Yes	14×51mm

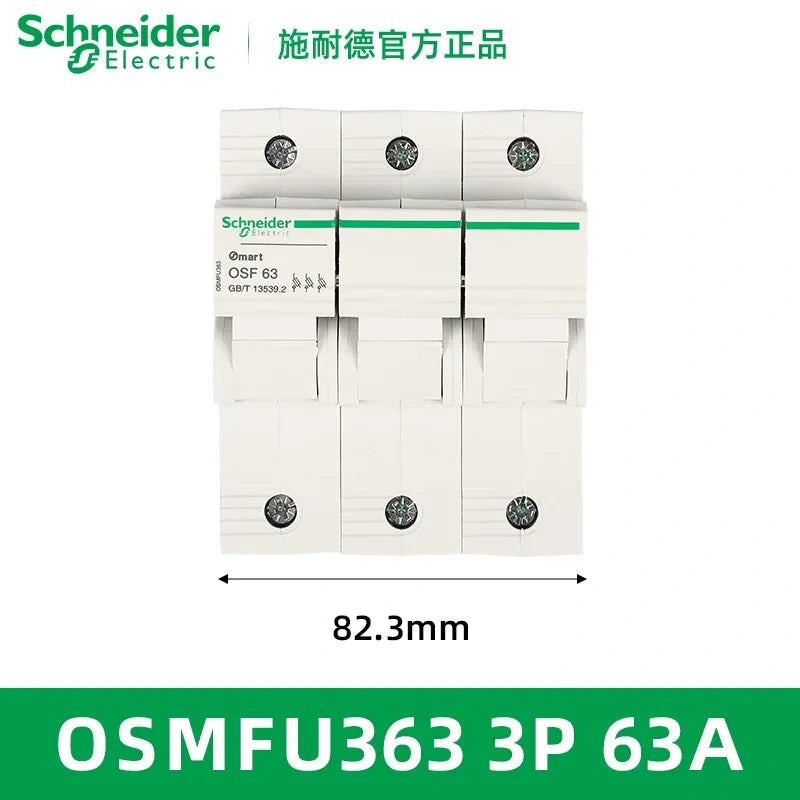

OSMFU363	3P	63A	No	14×51mm

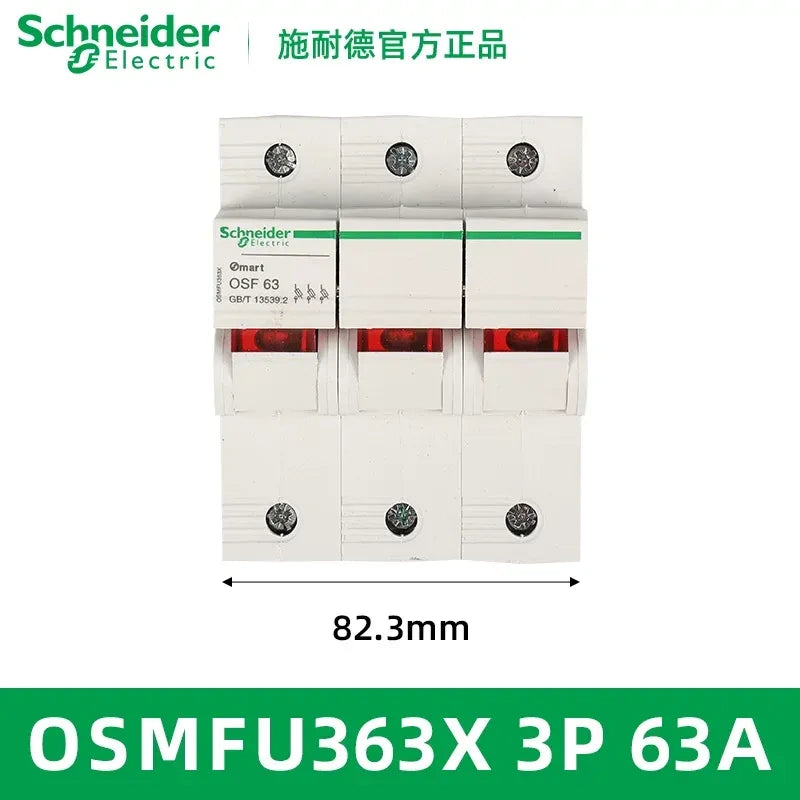

OSMFU363X	3P	63A	Yes	14×51mm
