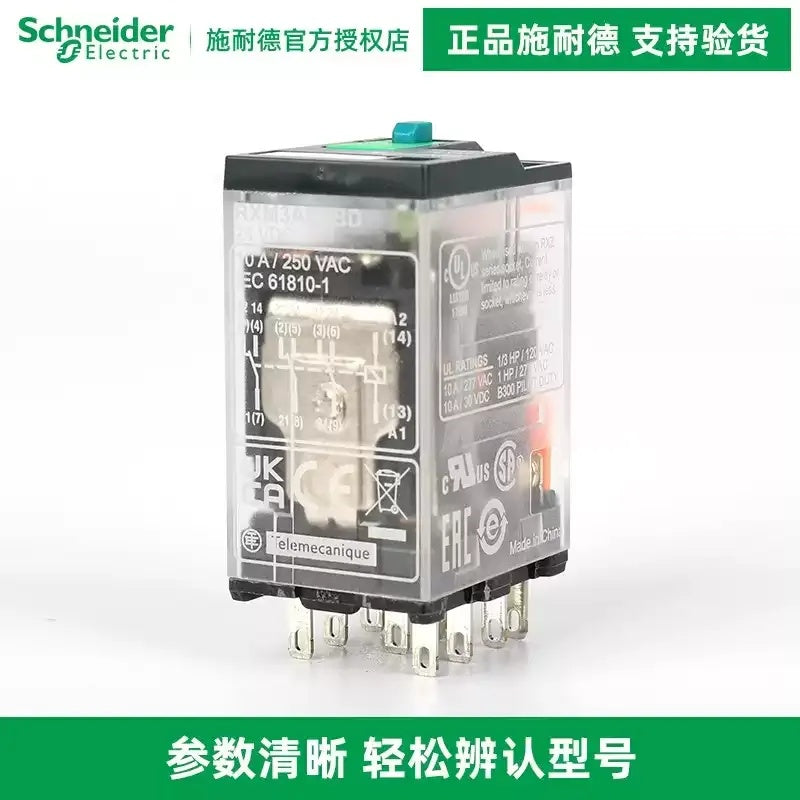

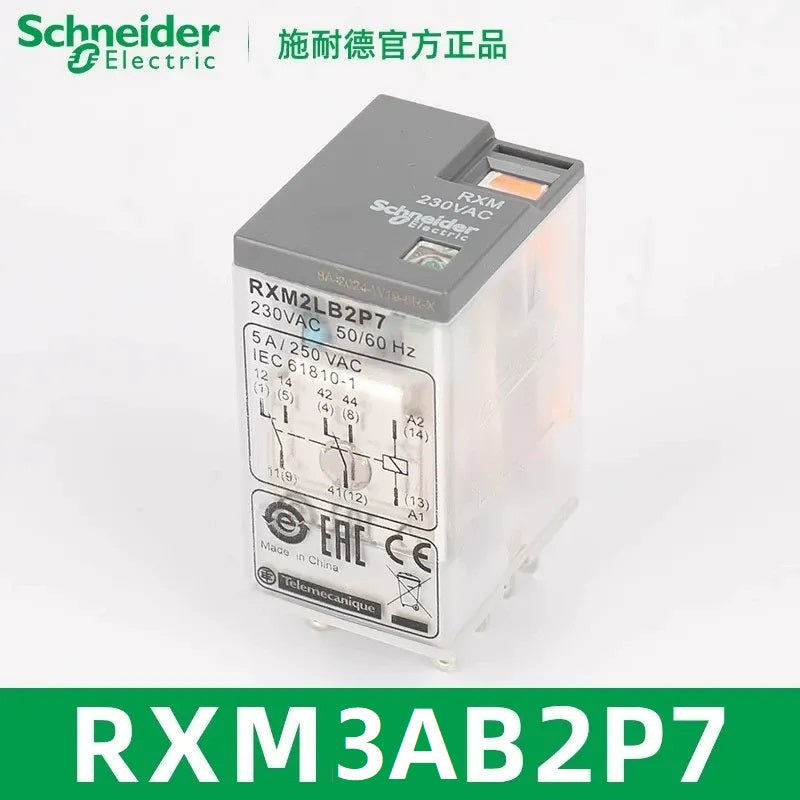

Schneider RXM3 Series 3NO3NC Plug-in Relay

$19.84 USD
$85.52 USD $19.84 USD
Sale Sold out
Shipping calculated at checkout.
Model NO.

Schneider RXM3AB2BD DC24V / RXM3AB2P7 AC230V Intermediate Relay, 11 Pin, 3 Normally Open 3 Normally Closed, with LED & Test Button, Plug-in Miniature Relay

Product Description

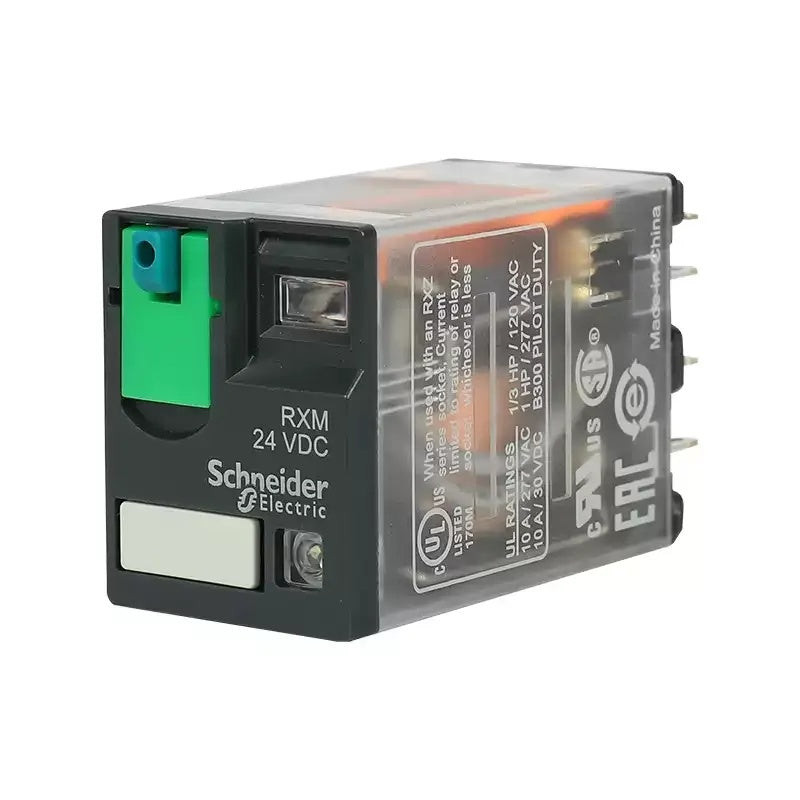

The Schneider RXM3 Series Miniature Intermediate Relay is a compact, high-performance 11-pin plug-in relay designed for industrial control and automation systems. With 3NO3NC (3 normally open + 3 normally closed) contacts, built-in LED status indicator, and manual test button, it offers reliable switching and easy maintenance for your applications.

✅ Core Features


  • 3NO3NC Contact Configuration: 3 normally open and 3 normally closed contacts, suitable for multi-channel control applications.
  • Clear LED Indicator: Built-in LED light shows the relay’s operating status at a glance, simplifying troubleshooting.
  • Manual Test Button: AB series includes a test button for quick on-site testing during installation and maintenance.

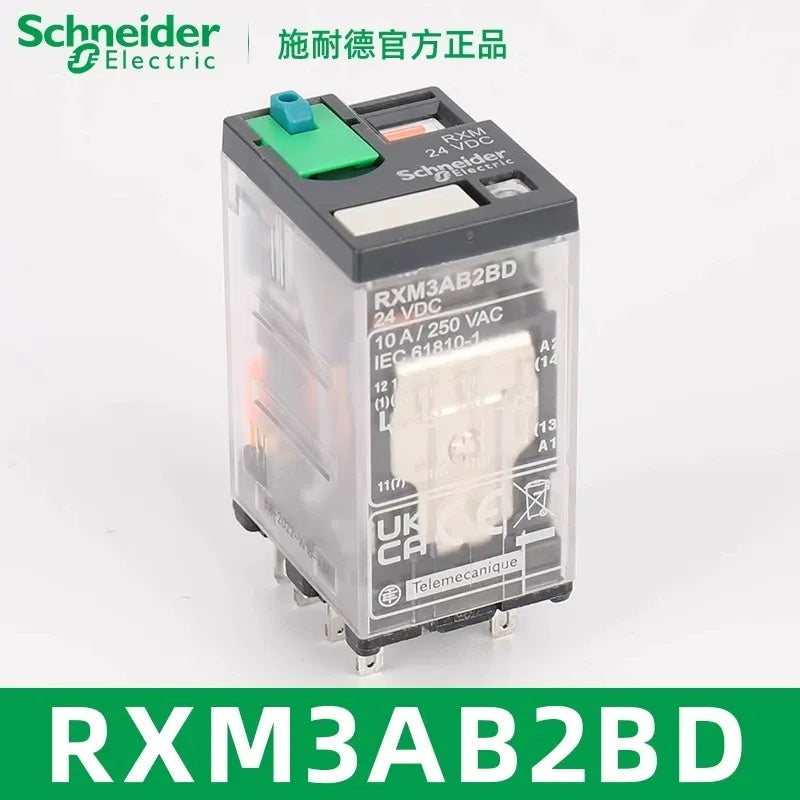

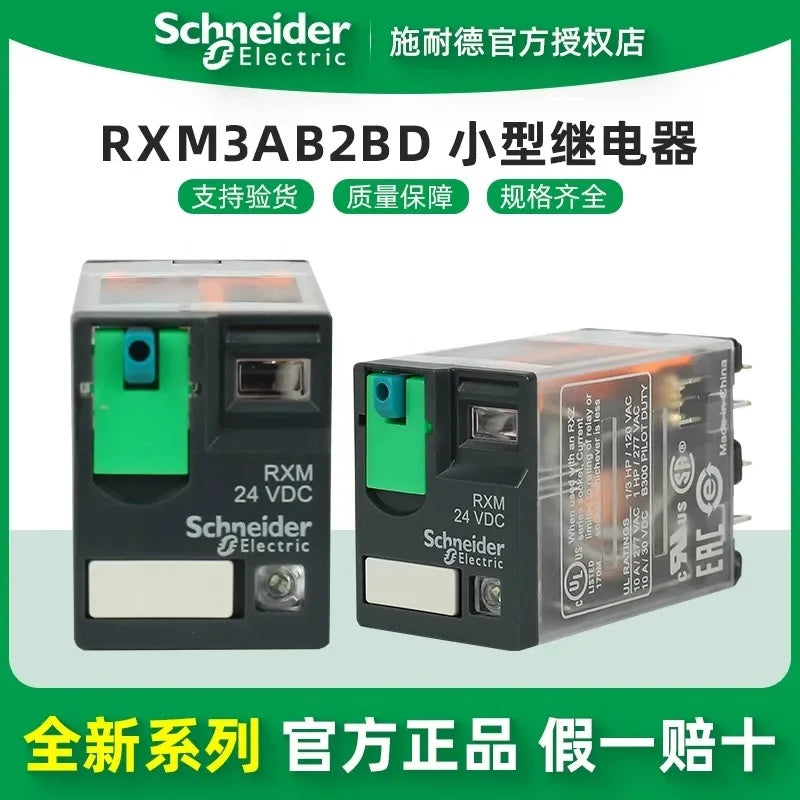

  • Multiple Coil Voltage Options: Available in DC24V (RXM3AB2BD), AC230V (RXM3AB2P7), and AC24V (RXM3AB2B7) to match different power supply systems.

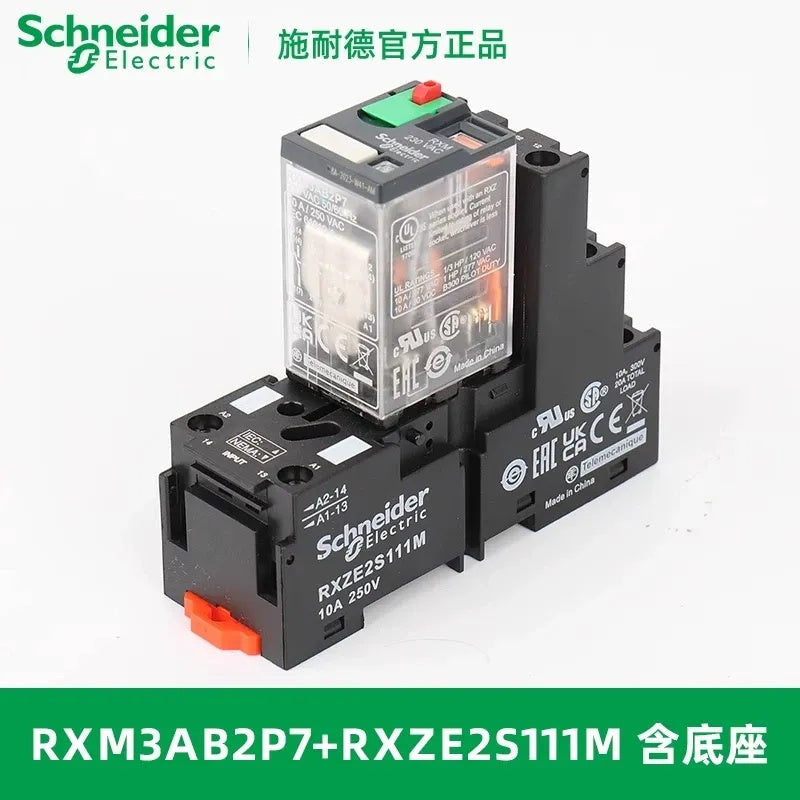

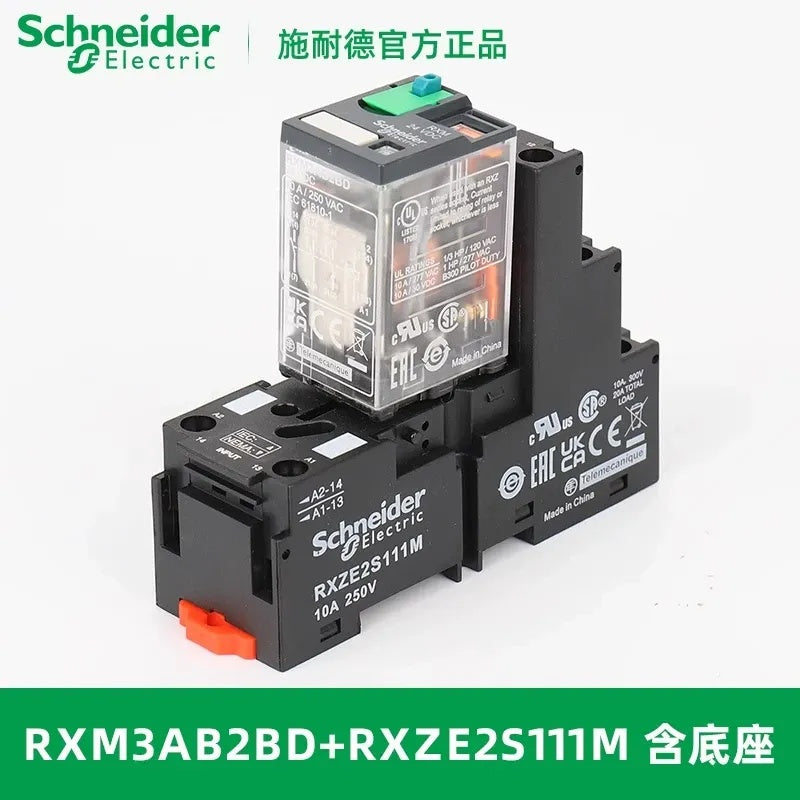

  • Standard Plug-in Design: Compatible with RXZE2S111M relay sockets for easy installation, replacement, and DIN rail mounting.
  • High Durability & Reliability: Designed for long-term use in industrial environments, with stable contact performance and anti-interference capability.

✅ Technical Specifications

Name Parameter
Product Type Miniature Intermediate Relay / Plug-in Electromagnetic Relay
Brand Schneider Electric
Series RXM3 Series
Models RXM3AB2BD (DC24V), RXM3AB2P7 (AC230V), RXM3AB2B7 (AC24V)
Contact Configuration 3NO3NC (3 Normally Open + 3 Normally Closed)
Pin Count 11 Pin
Rated Current 10A
Coil Voltage DC24V, AC230V, AC24V
Features With LED Indicator, With Test Button
Mounting Type Plug-in (Compatible with RXZE2S111M Socket)
Compatible Socket RXZE2S111M
Application Scenarios Industrial Automation, PLC Control, Motor Control, Signal Conversion, Power Distribution Cabinets



✅ Compatibility & Accessories

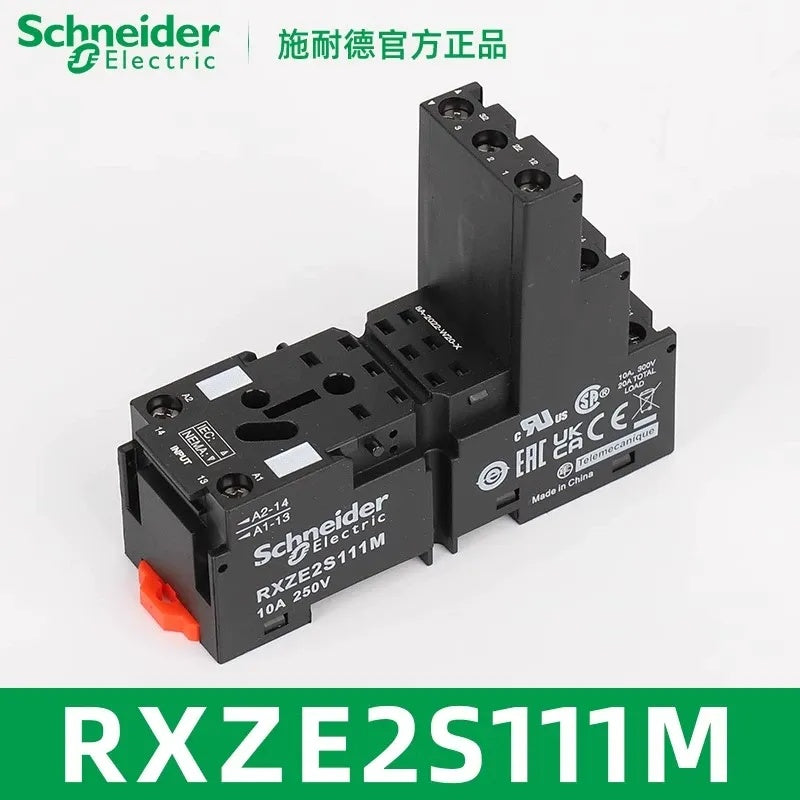

  • The relay is fully compatible with the RXZE2S111M relay socket (sold separately or as a set).
  • The socket supports DIN rail mounting for easy integration into control cabinets.
