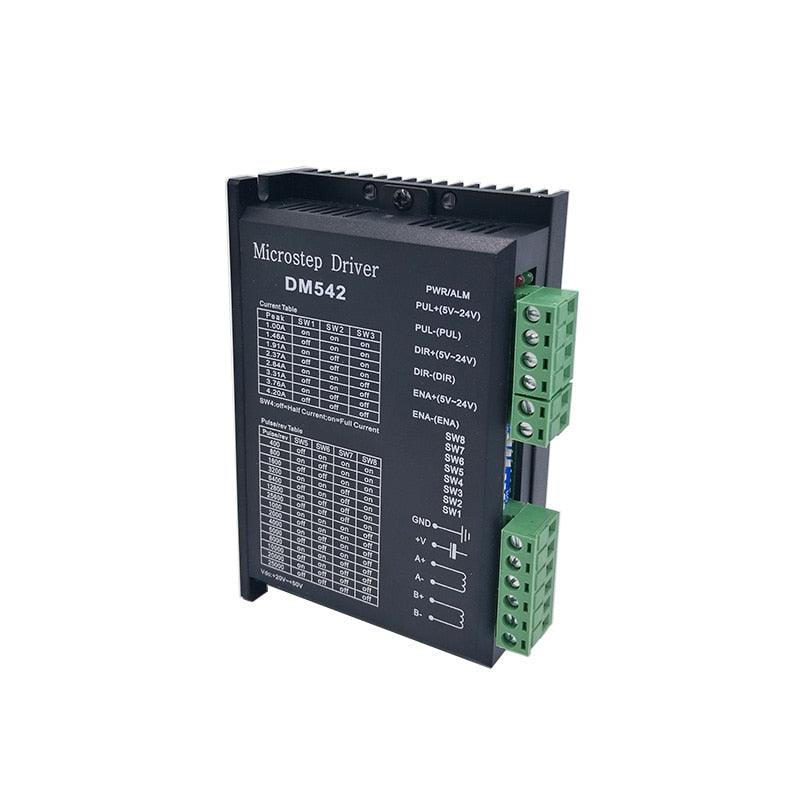

DM542 Stepper Motor Driver Controller, Microstep Driver for Nema17 Nema23 42 57 Stepper Motor

$21.60 USD
$24.50 USD $21.60 USD
Sale Sold out
Shipping calculated at checkout.
Added ✓

Stepper motor driver controller DM542 ,DM542 stepper driver

microstep motor brushless DC motor shell

for 42 57 stepper motor Nema17 Nema23,stepper motor driver

🔹 Product Description

DM542 Digital Stepper Motor Driver The DM542 is a high-performance 2-phase digital microstepping stepper motor driver, specially designed to work with Nema17, Nema23, 42 and 57 series stepper motors, widely used in CNC routers, engraving machines, cutting equipment, automation machinery and robotics projects.

Adopted advanced digital control technology, this stepper driver features low heat generation, low vibration and high stability. It supports adjustable microstep resolution and output current via DIP switches, easy to match different stepper motors. Built-in over-current, over-voltage and under-voltage protection functions to protect the driver and motor from damage.

Key Features

✅ Digital microstepping control, smooth motor operation, low noise & low heat

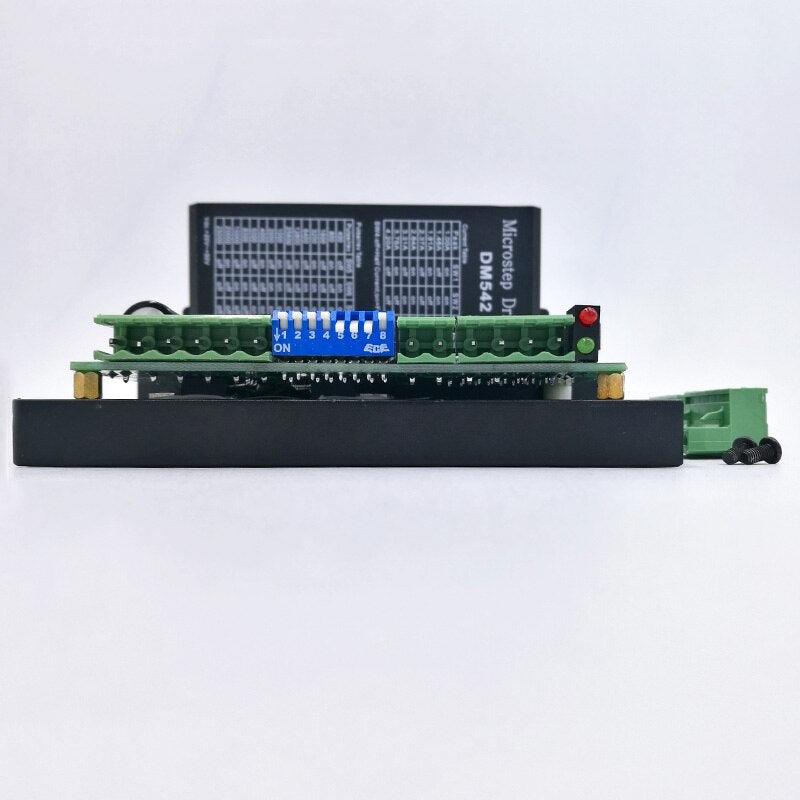

✅ DIP switch setting: adjustable output current & microstep resolution

✅ Multiple safety protection: overcurrent, overvoltage, undervoltage protection

✅ Compatible with Nema17, Nema23, 42, 57 two-phase stepper motors

✅ Widely used for CNC engraving, 3D printer, automated assembly, conveyor equipment

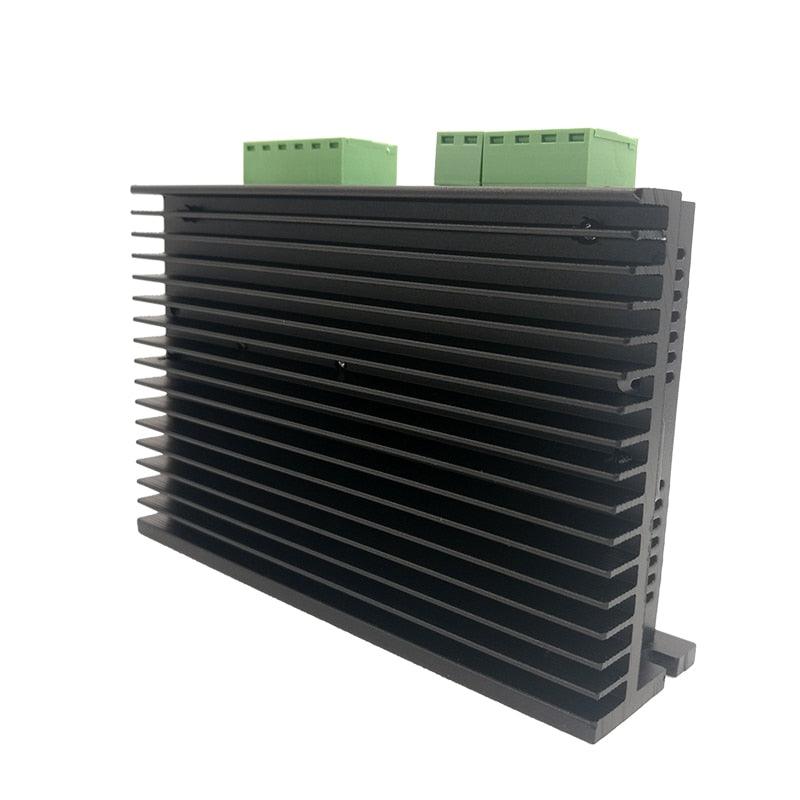

✅ Compact metal shell with good heat dissipation

Specifications

  • Model: DM542
  • Motor Type: 2-phase Stepper Motor
  • Applicable Motor: 42 / 57 Stepper Motor, Nema17, Nema23
  • Power Input: DC
  • Working Current: 1.0A - 4.2A adjustable
  • Microstep: Configurable by DIP switch
  • Cooling: Aluminum alloy housing heat dissipation
  • Origin: CN

🔹 Attribute Table

Attribute Name Value
Product Type Stepper Motor Driver
Model DM542
Phase 2 Phase
Compatible Motor Nema17, Nema23, 42,57 Stepper Motor
Input Power DC Power Supply
Max Output Current 4.2A
Control Method Digital Microstepping
Adjustment DIP Switch adjustable current & microstep
Protection Over-current, Over-voltage, Under-voltage Protection
Application CNC Router, Engraving Machine, Automation Equipment
Housing Material Aluminum Alloy
Country of Origin CN

🔹 FAQ

Q1: Which motors can DM542 drive?

A: DM542 is suitable for 2-phase Nema17 and Nema23 stepper motors (42 and 57 frame size stepper motors).

Q2: How to set the current and microstep?

A: Adjust the DIP switches on the driver panel to set output current and microstep resolution, follow the datasheet for parameter reference.

Q3: What safety protections does DM542 have?

A: It has built-in over-current, over-voltage and under-voltage protection to prevent burnout of driver and motor.

Q4: What applications is this driver used for?

A: Ideal for CNC engraving machines, cutting machines, automated production lines, robotic equipment and DIY motion control projects.

Q5: Is it digital stepper driver?

A: Yes, DM542 is a digital microstepping driver with better performance than analog drivers, lower vibration and heat.

DM542 DATA SHEET DOWNLOAD
