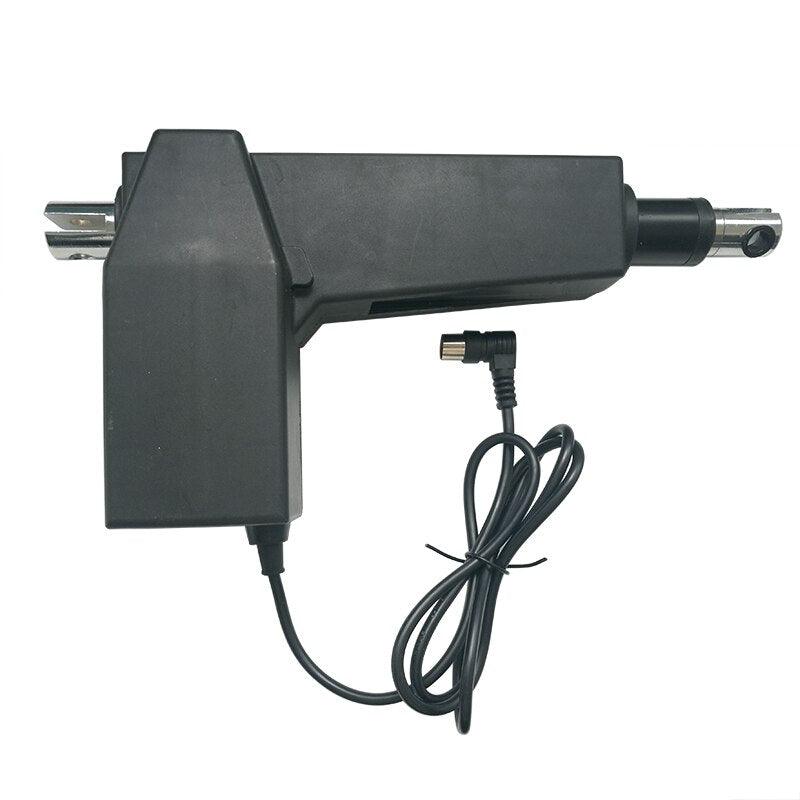

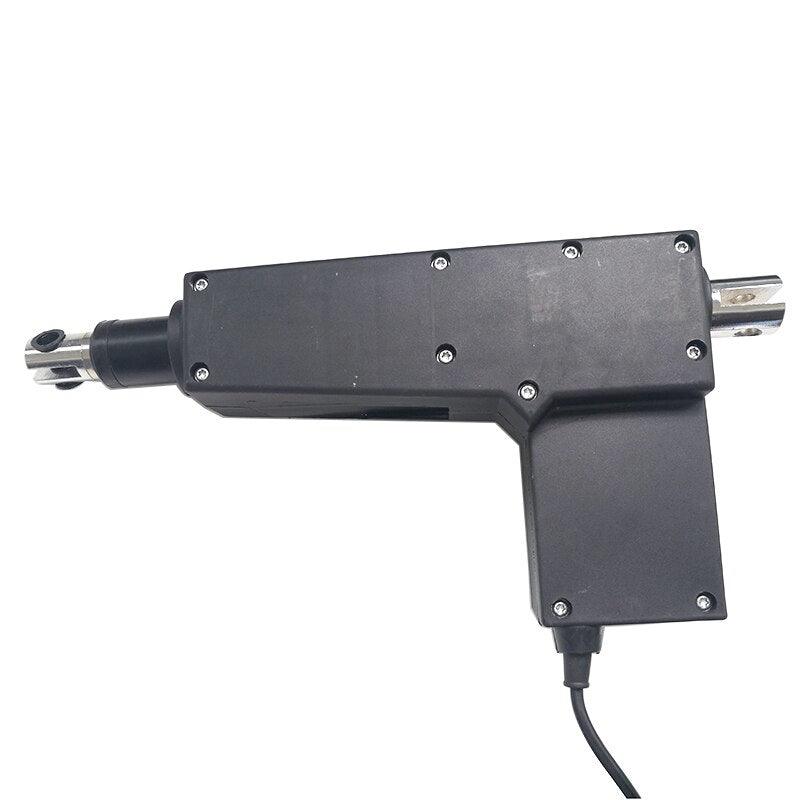

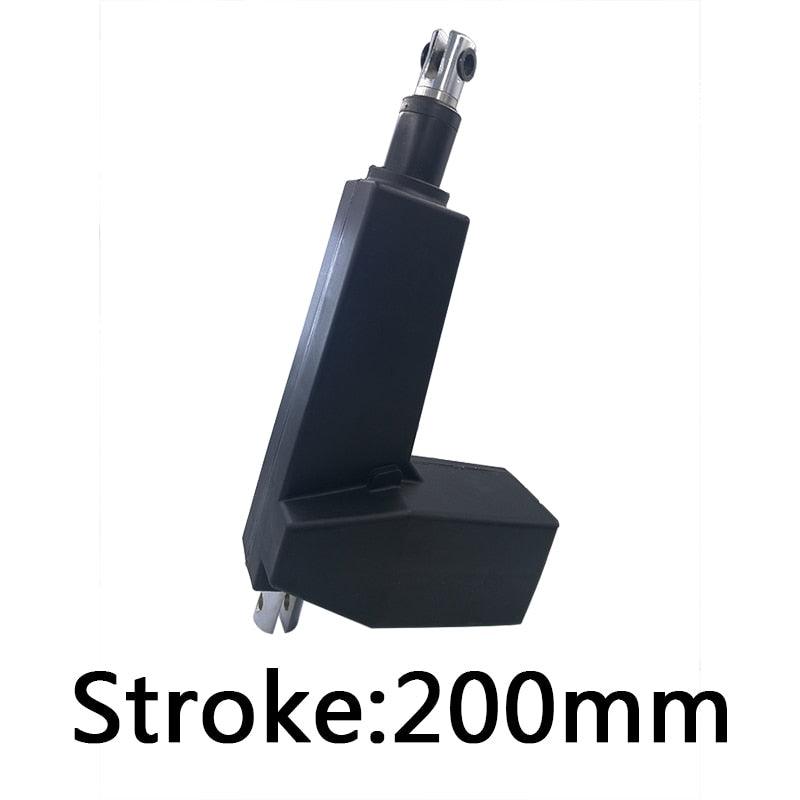

Stroke 200mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N

SPECIFICATIONS

Stroke 200mm Electric linear actuator 12V 24V DC motor 2000N 4000N 6000N 8000N push pull force hospital ICU electric chair bed

Type: linear actuator

Torque: linear

Protect Feature: Drip-proof

Output Power: other

Origin: CN(Origin)

Model Number: Stroke200mm

Efficiency: IE 2

Continuous Current(A): current

Construction: Permanent Magnet

Commutation: Brushless

Certification: ce

Stroke：

50mm100mm150mm200mm250mm 300mm350mm400mm450mm500mm

Input                                      12V/24V

Limited switch                        Built-in

Color                                      Black

Operation temperature           -26 ~ +65 degree

IP class options                      IP54

***********************************************************

8000N  linear actuator reference：

L min=175+Stroke (S)

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch.

Stroke means the movement length of linear actuator

Lmax=L (min)+Stroke(S)

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch.
